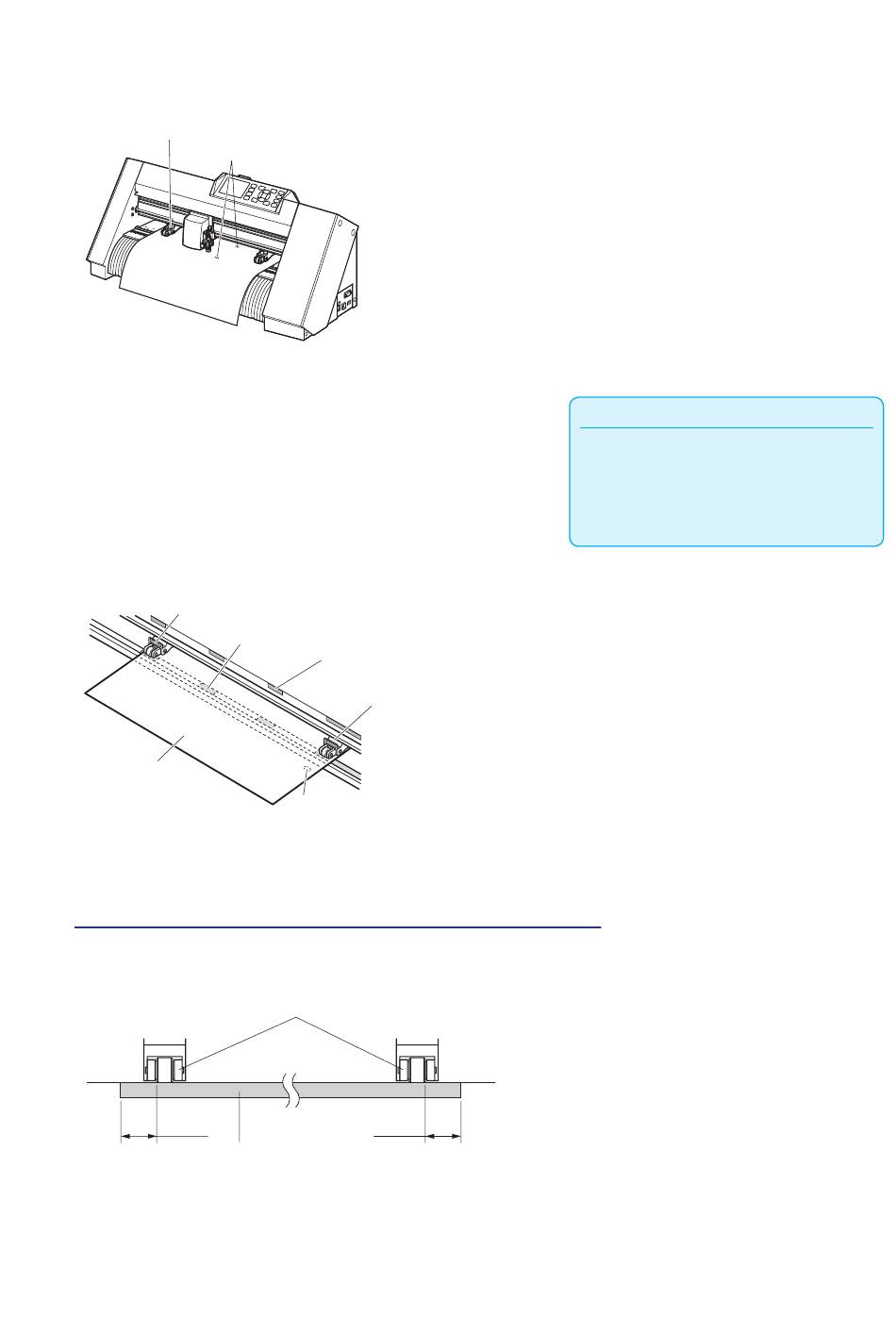

Push the tip of the roll media forward from the back of the
CE7000. Make sure to pull it so that there is no slackening
across the roll media's route.
Push roller
Media sensor
4
Position the media and the push rollers to correspond with
the width of the media.
The push rollers push down on either side of the media. Use
the grit roller position guide to make sure the push rollers are
set on top of the grit rollers.
You can adjust the center push roller's hold-down force.
Push roller
Media
When feeding long media (2 meters or more)
Position the push rollers at least 15 mm inside the edges of
the media.
15 mm
Grit roller
Grit roller position guide
Push roller
Media sensor
Push roller
15 mm
Media
Supplement
•
The media must always be positioned over
the media sensor.
•
See "Aligning the Push Rollers" for the
position of the push rollers.
