GRAPHTEC CE7000 Series User Manual page 121

3

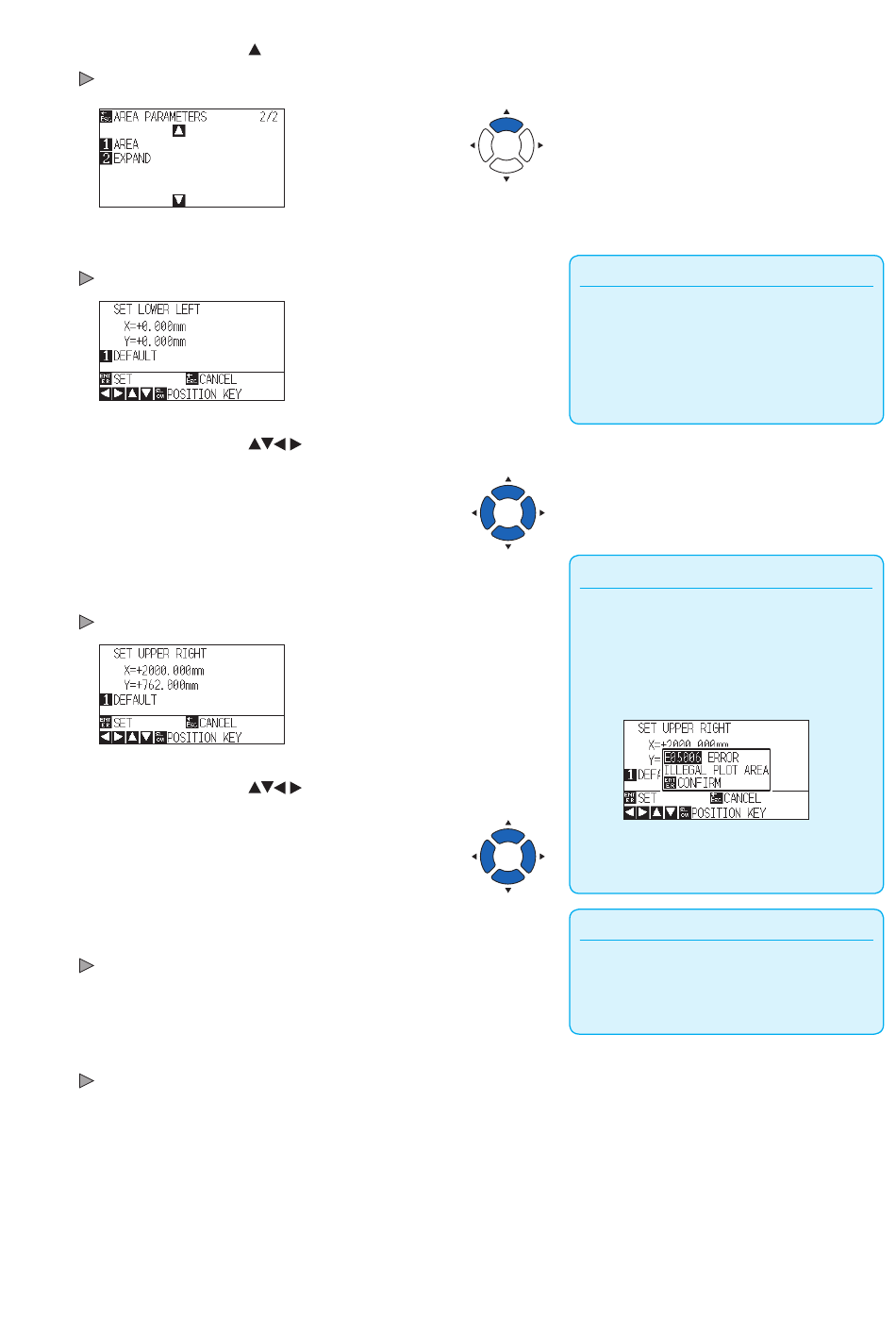

Press the POSITION ( ) key.
AREA PARAMETERS screen (2/2) is displayed.
4
Press the [1] key (AREA).
SET LOWER LEFT screen is displayed.
5
Press the POSITION (
carriage to the position to be the lower left of the AREA.
6
Press the [ENTER] key (SET) once the tool carriage is in
correct position.
SET UPPER RIGHT screen is displayed.
7
Press the POSITION (
carriage to the upper right position of the AREA.
8
Press the [ENTER] key (SET) once the tool carriage is in
correct position.
Setting will be confirmed and it will return to AREA PARAMETERS
screen (2/2).
9
Press the [PAUSE/MENU] key.
It will return to default screen.
) keys and move the tool
) keys and move the tool
4-3
Supplement
•
Coordinate value displayed here is the
distance to the tool carriage from the origin
point.
•
Press [1] key (DEFAULT) if the cutting are is
not to change.
Supplement
Please set the X and Y cut range for the areas
on the upper right and lower left points to at
least 10 mm.
An error message will appear for areas that are
too small.
You will need to reset the settings for the upper
right and lower left points.
Supplement
It will return to AREA PARAMETERS screen
(2/2) without changing the settings when you
press the [ESC] key (CANCEL).
