GRAPHTEC CE7000 Series User Manual page 155

6

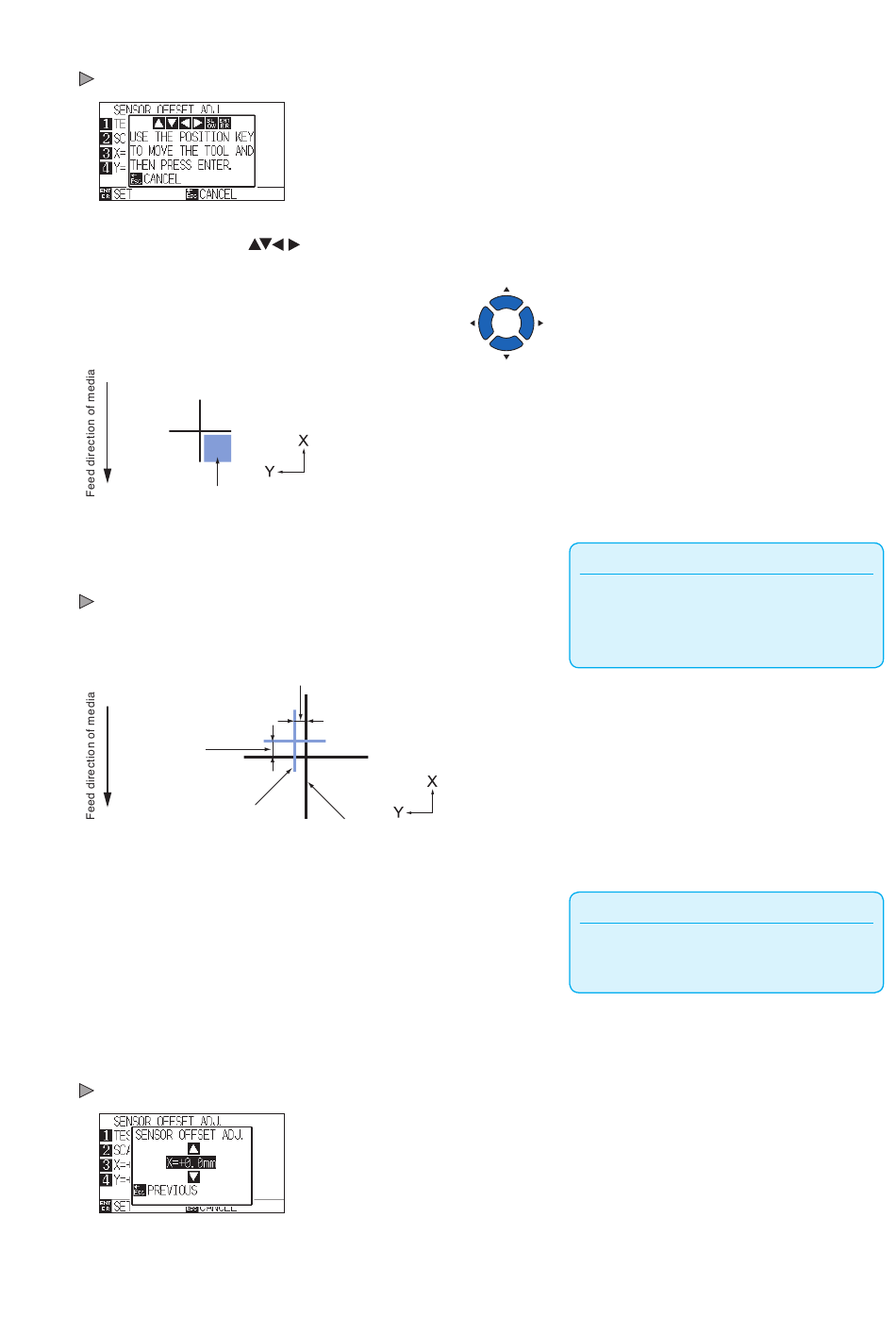

Press the [2] key (SCAN).
Following message is displayed.
7
Press the POSITION (
carriage to the area to start scanning of the registration mark.
Registration mark scan area
Align the tool to this area
8
Confirm the position of the tool, and if it is OK, press the
[ENTER] key.
The registration mark for comparison is plotted after scanning the
registration mark (see below). It will return to SENSOR OFFSET ADJ.
screen once the plotting is completed.
Distance
adjustment
value X
Registration mark
for comparison
9
Using the scanned registration mark for adjusting, measure
the distance of how much the comparison registration mark
needs to be moved so both will overlap, and record the
value. As an example, in the figure above, it needs to move
in negative directions for both X and Y directions, so both of
the adjustment values will be a negative values.
10
Press the [3] key (X).
SENSOR OFFSET ADJ. X screen is displayed.
) keys and move the tool
Distance adjustment value Y
Registration mark for
adjustment
5-21
Supplement
It will return to ARMS SETTING screen (3/4)
without plotting when you press the [ESC] key
(CANCEL).
Supplement
Position of the registration mark is measured at
the center of the line.
