GRAPHTEC CE7000 Series User Manual page 258

When using Cutting Master 4
1
Create rectangles on the design screen using the
"Rectangle" tool in Adobe Illustrator or CorelDRAW.
2
In Adobe Illustrator, select the rectangle and then select
"Cutting Master 4" - "Registration Marks" from the File
menu.
In CorelDRAW, select "Start" - "Registration Marks (CM4)"
from the tool bar.
* If selecting from the application launcher in CorelDRAW
version X7 or earlier and, the Registration Marks screen
will be displayed.
Set type, thickness and length of registration mark.
Check the "Convert rectangle".
Press the "OK".
Registration marks are created on the design screen.

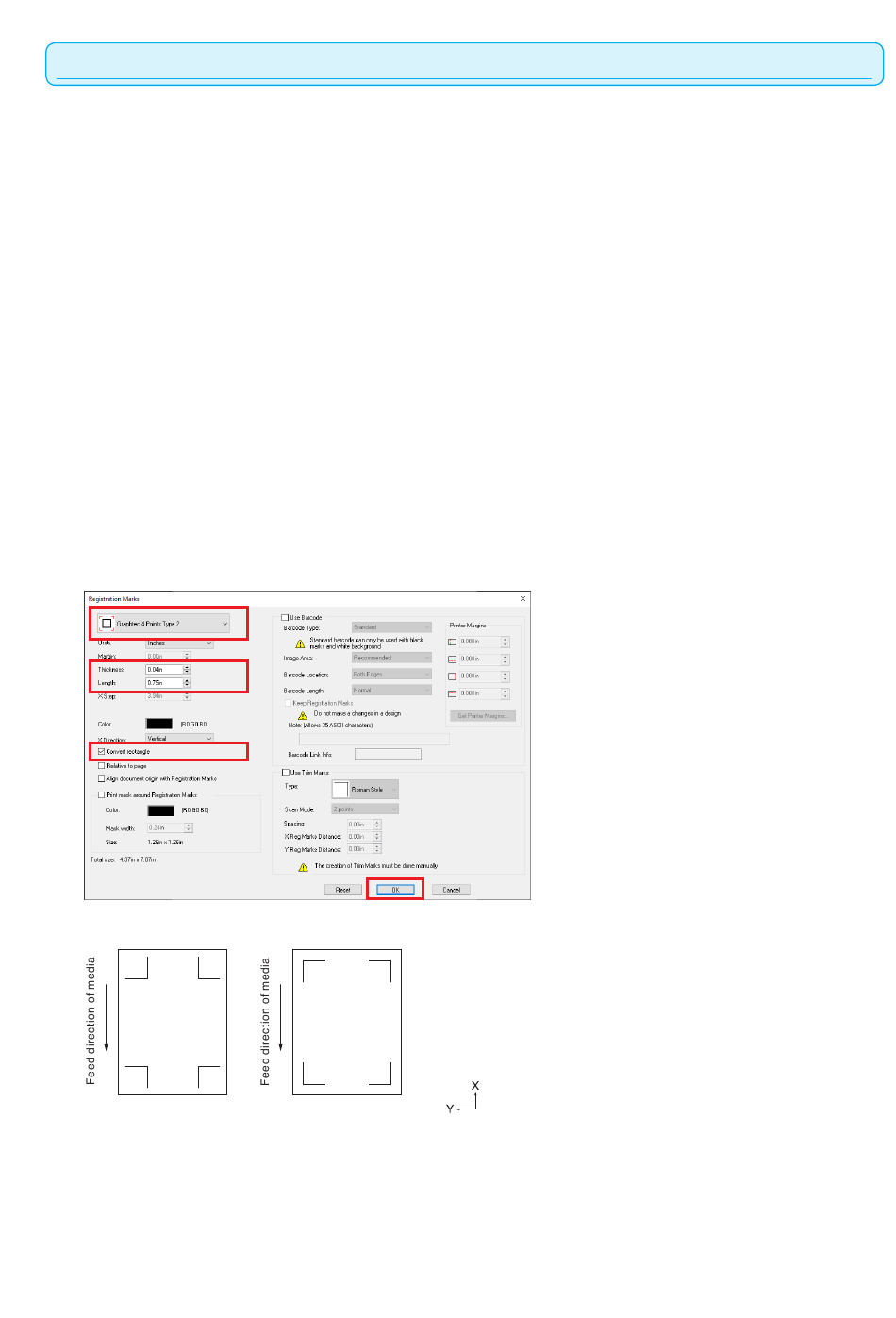

* The following screen is the screen when starting from
Adobe Illustrator.
MARK TYPE 1 MARK TYPE 2
13-4
