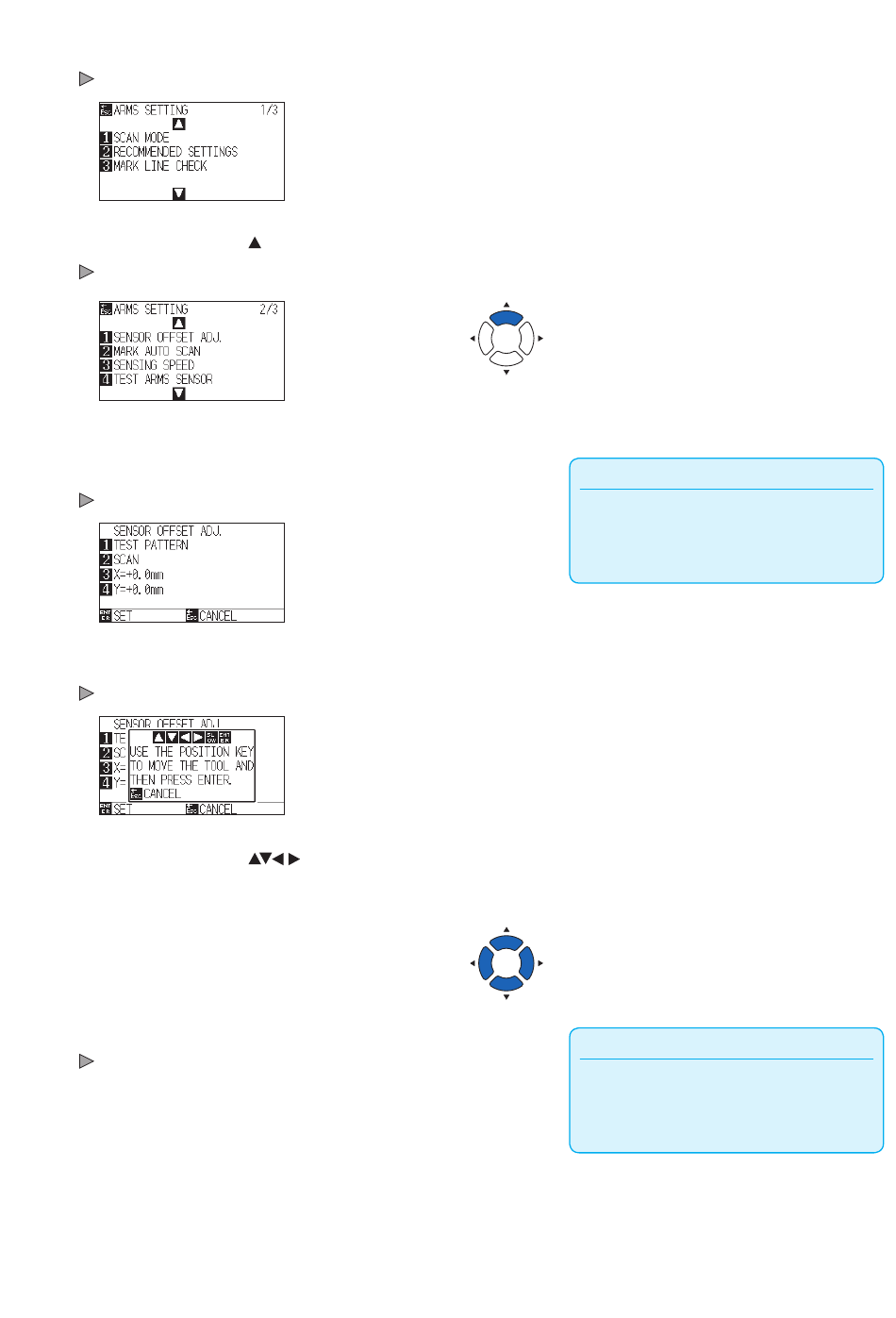

GRAPHTEC CE7000 Series User Manual page 151

4
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
5
Press the POSITION ( ) key.
ARMS SETTING screen (2/3) is displayed.
6
Press the [1] key (SENSOR OFFSET ADJ.).
SENSOR OFFSET ADJ. screen is displayed.
7
Press the [1] key (TEST PATTERN).
Following message is displayed.
8
Press the POSITION (
carriage to the position to plot the registration mark (position
nothing is printed).
9
Press the [ENTER] key.
A adjustment registration mark is created, and then it will return to
SENSOR OFFSET ADJ. screen.
) keys and move the tool
5-17
Reference
It will return to ARMS SETTING screen (2/3)
without changing the settings when you press
the [ESC] key (CANCEL).
Reference
It will return to SENSOR OFFSET ADJ. screen
without plotting by pressing the [ESC] key
(CANCEL).
