Setting the tool

Set the type and offset value of the tool that is used.

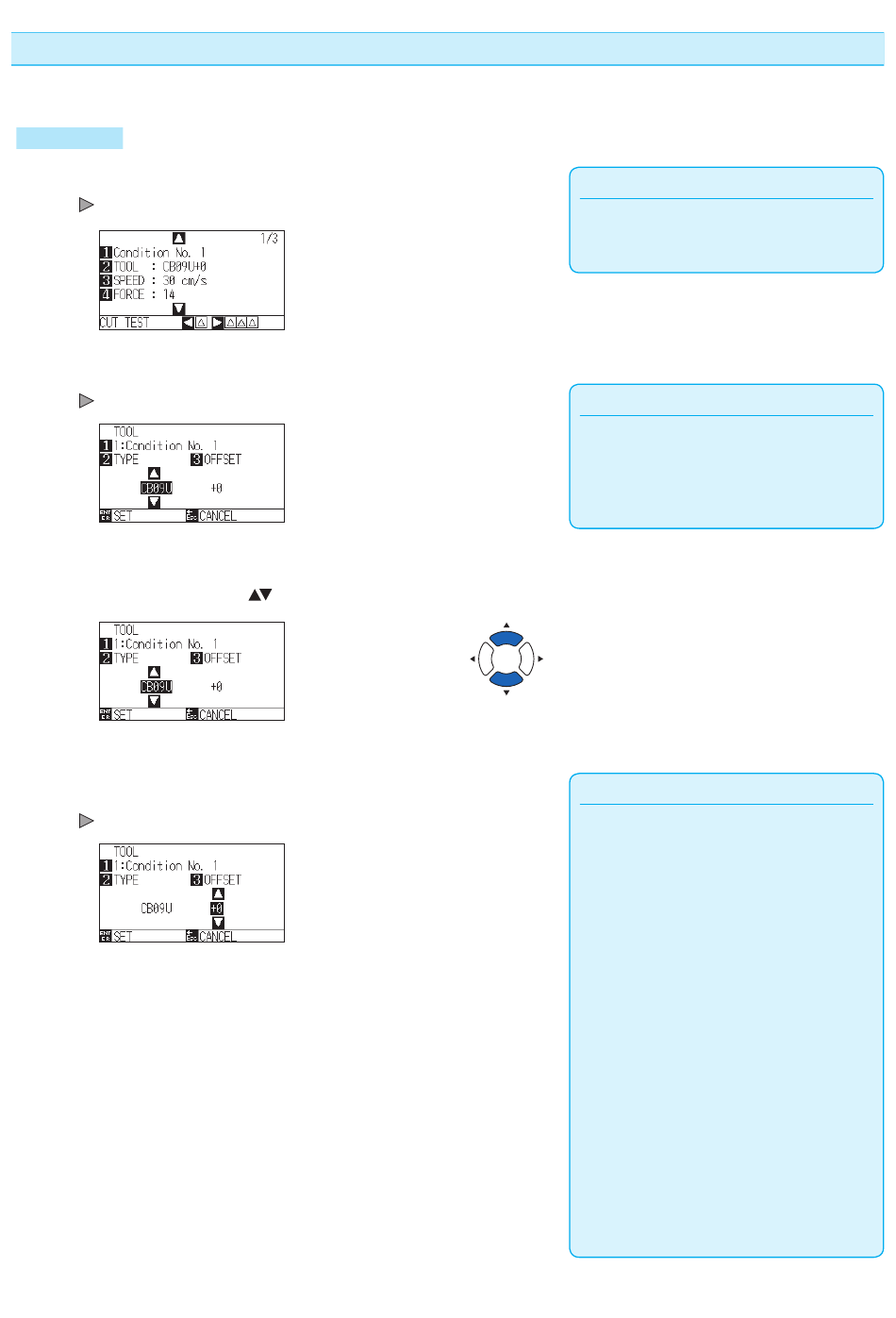

Operation
1
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
2
Press the [2] key (TOOL).
TOOL setting screen is displayed.
3
Press the POSITION (
4
Press the [3] key (OFFSET).
OFFSET setting screen is displayed.
) keys and set the tool.
2-46
Supplement
•
Perform the settings in Normal mode.
•
In Simple mode, it is locked.
Supplement
Press the [1] key to change the CONDITION No.
It will return to CONDITION setting screen
without changing the settings when you press
the [ESC] key (CANCEL).
Supplement
•
What is Offset
It will adjust the difference between the tip
of the blade in the plunger and the center of
the plunger. There are standard adjustment
values for each cutter blades.
Fine adjustment will be made to that standard
values here. (Adjustment will be made with
standard value as 0.)
It is not necessary to set the offset if "PEN",
was selected in the tool settings. (not
displayed)
•
Guideline to Set Offset
See the Cutter Blade Manual
•
You can set the range between -5 and +5.
The other range is +1 to +45.
•
To continue the settings of other tool condition
number, return to step 3 by pressing the [1]
key.
