Confirm the setting and press the [ENTER] key (SET).
The adjustments based on the registration mark scanning will be
completed, and it will return to default screen.
Supplement
Please refer to the following for adjustments when matching the manual position.
•
2 point matching, ["Point 1" settings] ["Point 2" settings] ["Origin point of the axis adjustment" settings] [Finish]
•
3 point matching, ["Point 1" settings] ["Point 2" settings] ["Point 3" settings] ["Distance between Point 1-2" settings] ["Distance
between Point 1-3" settings] ["Origin point of the axis adjustment" settings] [Finish]
•
4 point matching, ["Point 1" settings] ["Point 2" settings] ["Point 3" settings] ["Point 4" settings] ["Distance between point 1-2" settings]
["Distance between point 1-3" settings] [Finish]
Supplement
•
It will return to default screen without changing
the settings when you press the [ESC] key
(CANCEL).
•

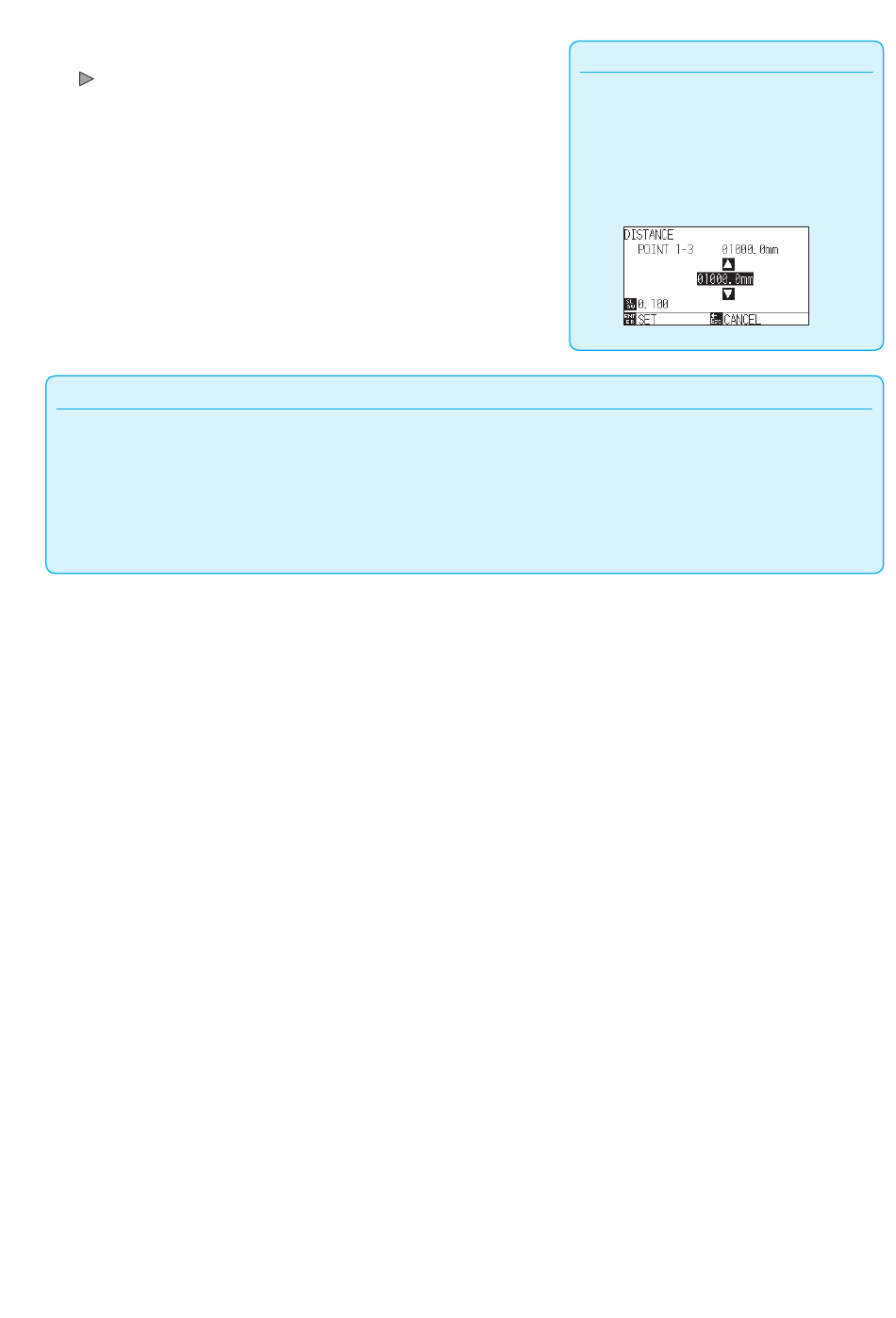

DISTANCE input screen for point 3 is displayed if
it is set to 3POINTS or more, so repeat steps 14 to
16 to set.
