GRAPHTEC CE7000 Series User Manual page 149

6

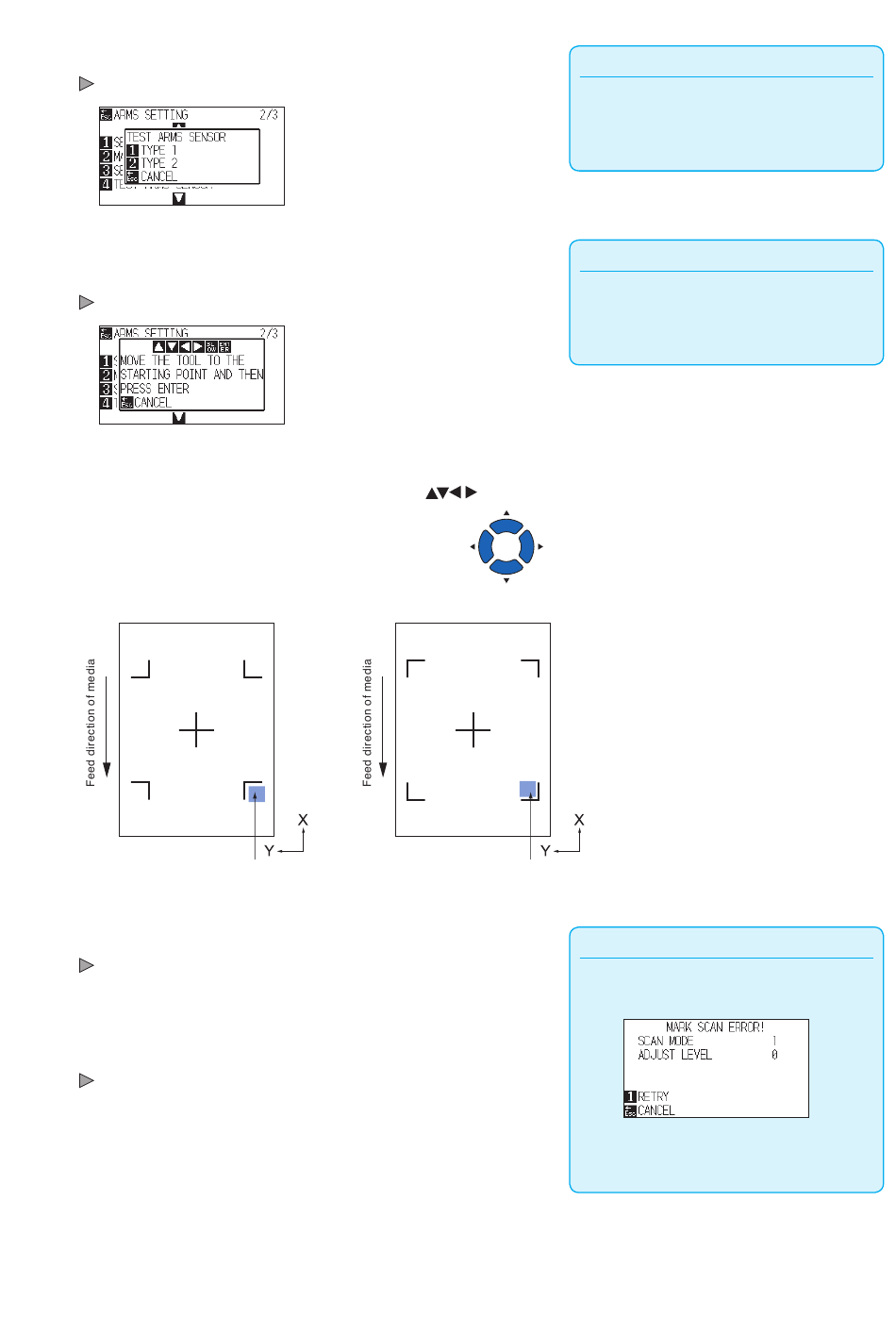

Press the [4] key (TEST ARMS SENSOR).
TEST ARMS SENSOR screen is displayed.
7
Press either the [1] key (TYPE 1) or the [2] key (TYPE 2)
depending on the type of the registration mark to be used.
Following message is displayed.
8
Move the tool to the position to start scanning of the
registration mark by pressing the POSITION (
MARK TYPE 1
Move the tool inside this
area
9
Confirm the position of the tool and press the [ENTER] key.
The plotter will automatically detect the registration mark and cut the
peak of each registration mark.
10
Confirm the cutting result.
See "Adjusting for the Registration Mark Scan Position" and adjust if the
cutting position is shifted.
Registration mark scan area
) key.
MARK TYPE 2
Move the tool inside this
area
5-15
Supplement
It will return to ARMS SETTING screen (2/3)
without changing the settings when you press
the [ESC] key (CANCEL).
Supplement
It will return to TEST ARMS SENSOR screen
without changing the settings when you press
the [ESC] key (CANCEL).
Supplement
Following error is displayed when the
registration mark was not scanned properly.
Press the [1] key (RETRY) to scan again, or the
[ESC] key (CANCEL) to exit.
