Reading The Screen (Lcd) - GRAPHTEC CE7000 Series User Manual

SLOW ......................... When pressing the POSITION key at the same time, the tool carriage moves slowly.
1, 2, 3, 4 ..................... Select the menu number displayed in the screen.
POSITION ( , , , ) key
............................ Adjusts various settings, selects numerical value changes, moves the cursor, and

Reading the screen (LCD)

Information reflecting the status will be displayed in the screen of the control panel.
Name of the button and corresponding function are displayed on the screen when a function is allocated to the
button on the control panel. Button name will be displayed in reverse when the button is enabled.

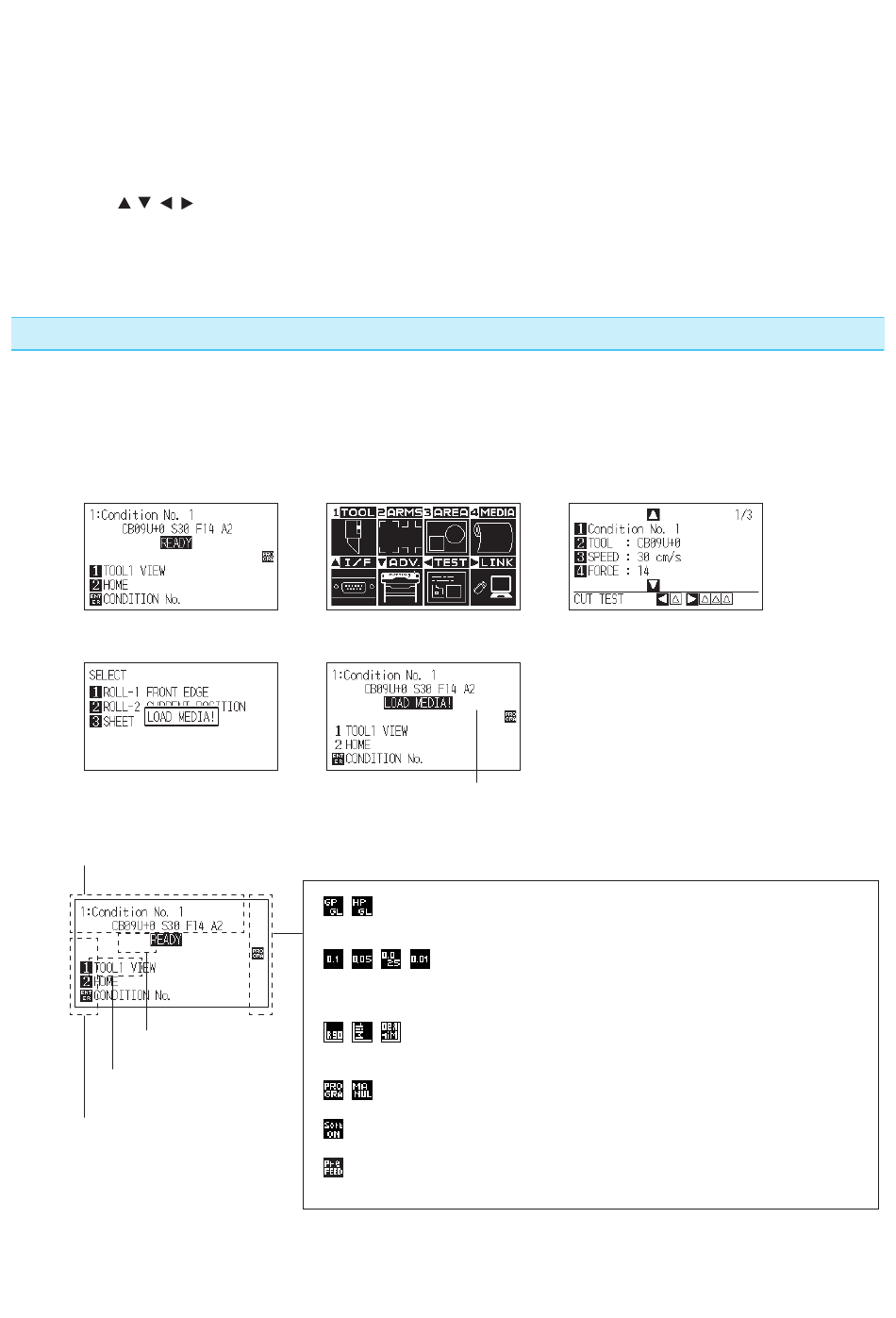

READY screen
(READY)
Media set lever raised
Tool conditions currently used
User number
Tool number currently used
Corresponding button name of control panel
(Valid button is displayed in reverse)
When the "SLOW" icon is displayed on the screen, it works as a menu key.
When the [SLOW] key is pressed in the READY screen, the current cutting/plotting area
and the position of tool carriage are displayed.
changes the positions in the MENU screen.
Media set lever lowered
Set condition of media (READY status:
It will display "READY" when the media is loaded)
Display of setting condition
MENU screen
(PAUSE/MENU)
Command
Step size
Rotate/Mrror
Priority
Sort
Prefeed
2-32
CONDITION setting screen
(COND/TEST)
: GP-GL : GP-GL Command
HP-GL : HP-GL Command
(No Display) : Command Auto
: 0.1 : 0.1mm
0.05 : 0.05mm
0.025 : 0.025mm
0.01 : 0.01mm
: R90 : Rotation (Rotate 90°)
: Mir : Mirror
R90 Mir : Mirror and Rotate
: MANUL : Manual priority
PROGRA : Pogram priority
: Sort ON : Display when sort is on
: Pre FEED : Display when automatic media feed is onMedia
