Mounting the Carrier Sheet Table (Option: OPH-A45)

1

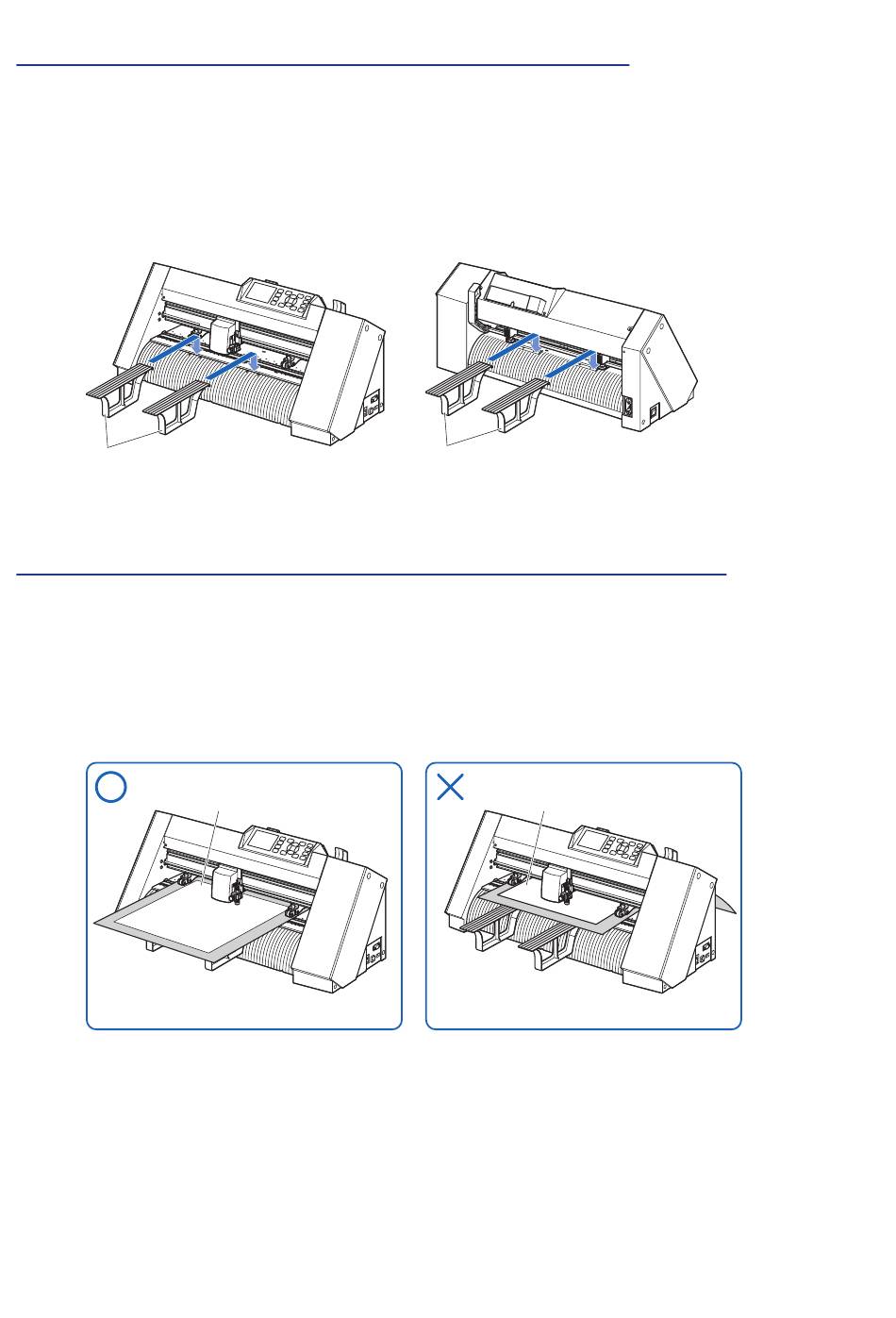

Mount the carrier sheet table to the front and back of the
cutting plotter.
Insert the projection under the carrier sheet table into the
dent part for each the model.
("40" for CE7000-40 and "60" for CE7000-60)
(The figure below is the CE7000-40.)
Carrier Sheet Table

Setting method of carrier sheet (Carrier Sheet Table: Option)

1
When setting the carrier sheet, insert it so that the narrowest
margin (transparent part) of the carrier sheet is at the top,
and make sure that the carrier sheet is in front of the cutting
plotter as shown in the figure.
Make sure that the carrier sheet does not come out behind
the cutting plotter.
GOOD
Carrier Sheet
Carrier Sheet Table
NG
Carrier Sheet
2-23
