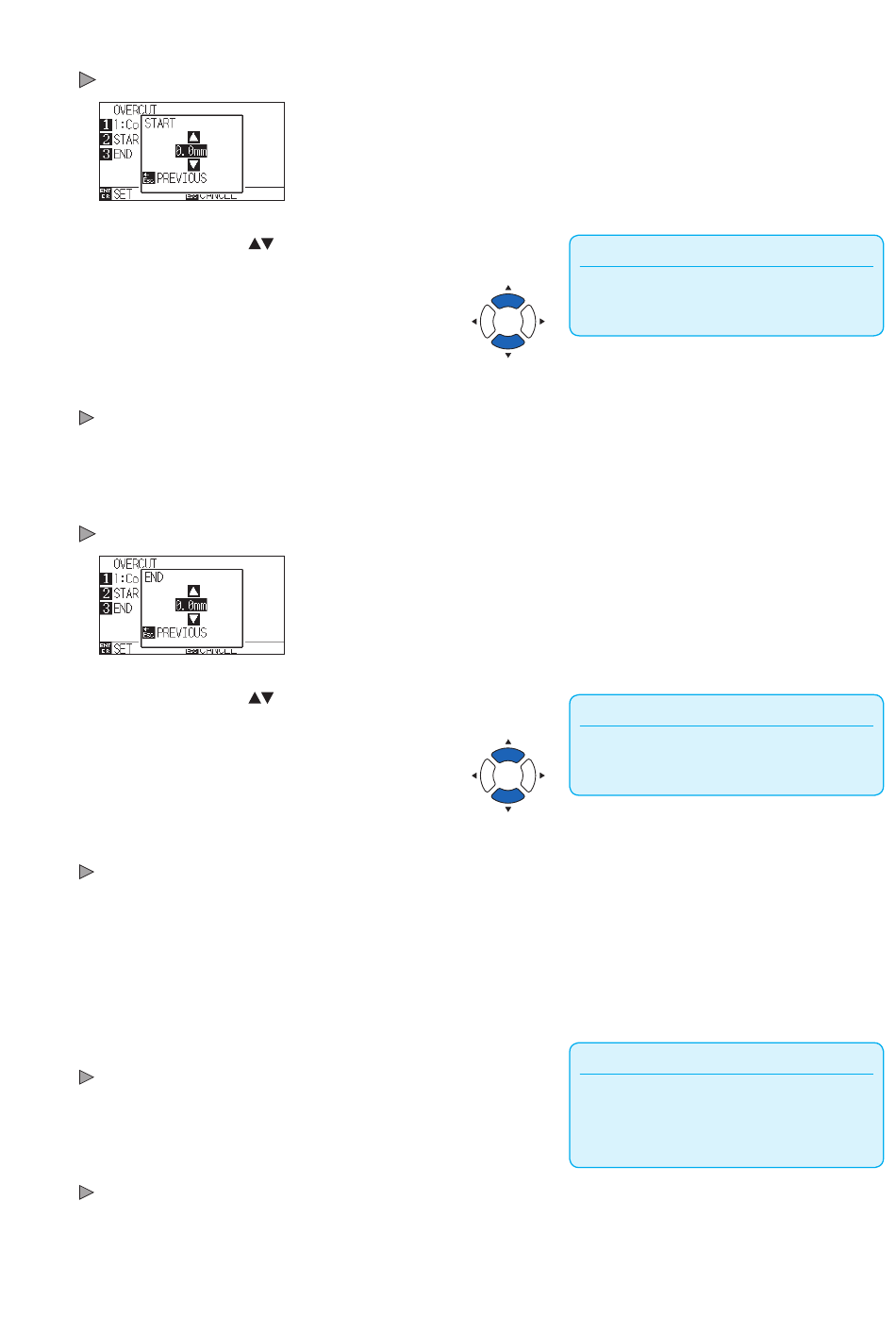

Press the [2] key (START).
START screen is displayed.
8
Press the POSITION (
the setting value.
9
Confirm the setting and press the [ESC] key (PREVIOUS).
Length for overcut START is selected and return to OVERCUT setting
screen.
10
Press the [3] key (END).
Overcut length for END setting screen is displayed.
11
Press the POSITION (
the setting value.
12
Confirm the setting and press the [ESC] key (PREVIOUS).
Length for overcut END will be selected and it will return to OVERCUT
screen.
13
Repeat steps 3 to 12 as necessary to set multiple tool
CONDITION No.
14
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to CONDITION setting screen
(2/3).
15
Press the [COND/TEST] key.
It will return to default screen.
) keys and increase or decrease
) keys and increase or decrease
7-5
Supplement
You can set the range between 0.0 mm and 0.9
mm.
Supplement
You can set the range between 0.0 mm and 0.9
mm.
Supplement
It will return to CONDITION setting screen (2/3)
without changing the settings when you press
the [ESC] key (CANCEL).
