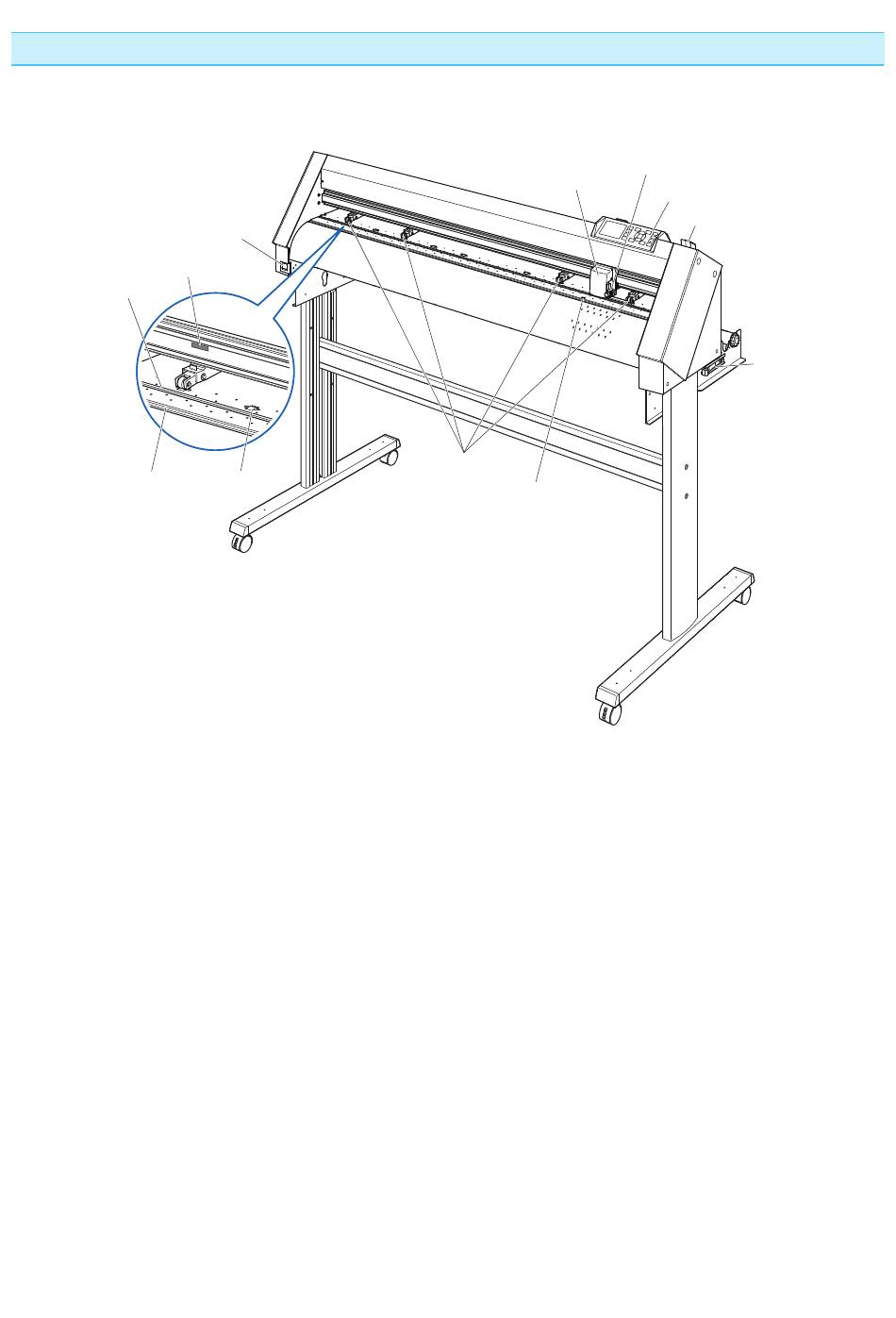

Front view : CE7000-130/160

This section explains in the CE7000-130.
Power switch
Grit roller position guide
Cutting mat
Cutting groove
Control panel ...........................Used to access various plotter functions.
Push rollers .............................Rollers that push the media against the grit rollers.
Grit rollers ...............................Feeds the media back and forth.
Media sensors ........................The front sensor is used to sense the leading edge of the media. The rear
Tool carriage ...........................Moves the cutter-pen or plotting pen across the media during cutting or
Tool holder ..............................Holds the cutter-pen or plotting pen and moves it up or down.
Grit roller position guide .......A roller position guide is affixed to the front side of the rail, which shows the
Cutting mat .............................The cutter blade moves on this cutting mat.
Cutting groove ........................Use this groove to cut out (die cut) or cross cut.
Media set lever .......................Used to raise or lower the Push rollers during the loading or unloading of
Media stopper .........................This stops the stock shaft from spinning when setting in media. It is utilized
Power switch ...........................Used to turn the plotter on and off.
Grit rollers
sensor is used to sense the trailing edge of the media.
plotting.
position of each grit roller. Use these alignment marks as an aid in locating the
Push rollers.
media.
when pulling roll media straight out.
Tool carriage
Push rollers
Media sensors
1-8
Tool holder
Control panel
Media set lever
Media stopper
