Shape (Pattern) of the Registration Mark and Origin Point

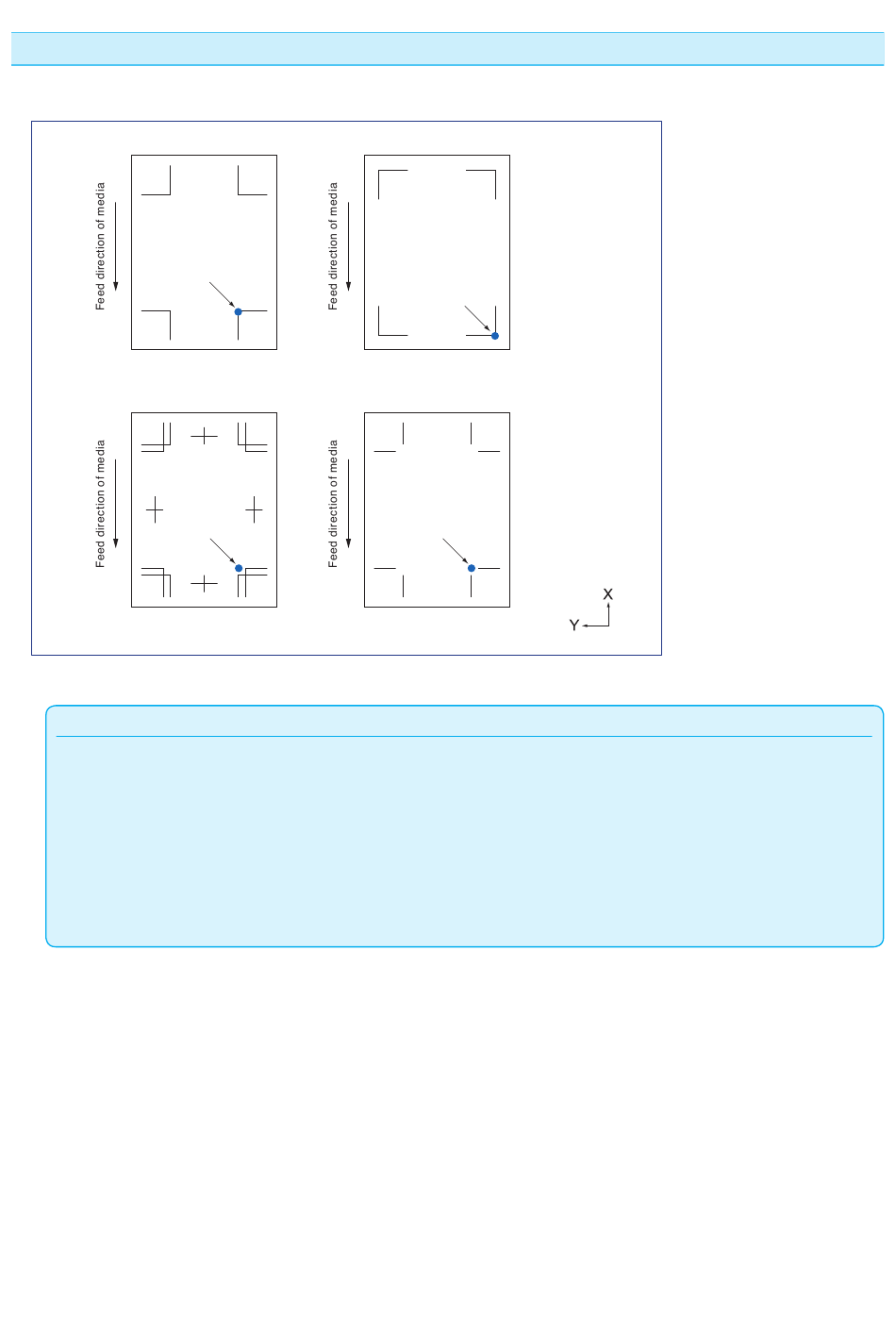

The shapes (patterns) of the registration mark the plotter can scan are following 4 types.
MARK TYPE 1
Origin point
MARK TYPE 3
Origin point
Supplement
•
Create the registration mark as a plotting data with the application software. Registration mark pattern 3 and 4 should be created
using Adobe Illustrator.
•
Create the registration mark in accordance with following conditions.
• Thickness of the line is between 0.3 to 1.0 mm.
• Size of the registration mark is between 5 to 20 mm (see "Setting Registration Mark Size").
• Use pattern 1, pattern 2, pattern 3 or pattern 4 for the shape of the registration mark.
• Create the registration mark with single line, and specify the thickness of line to necessary thickness. Double line cannot be used.
•
Panel Cutting should be switched to OFF.
MARK TYPE 2
Origin point
MARK TYPE 4
Origin point
5-3
