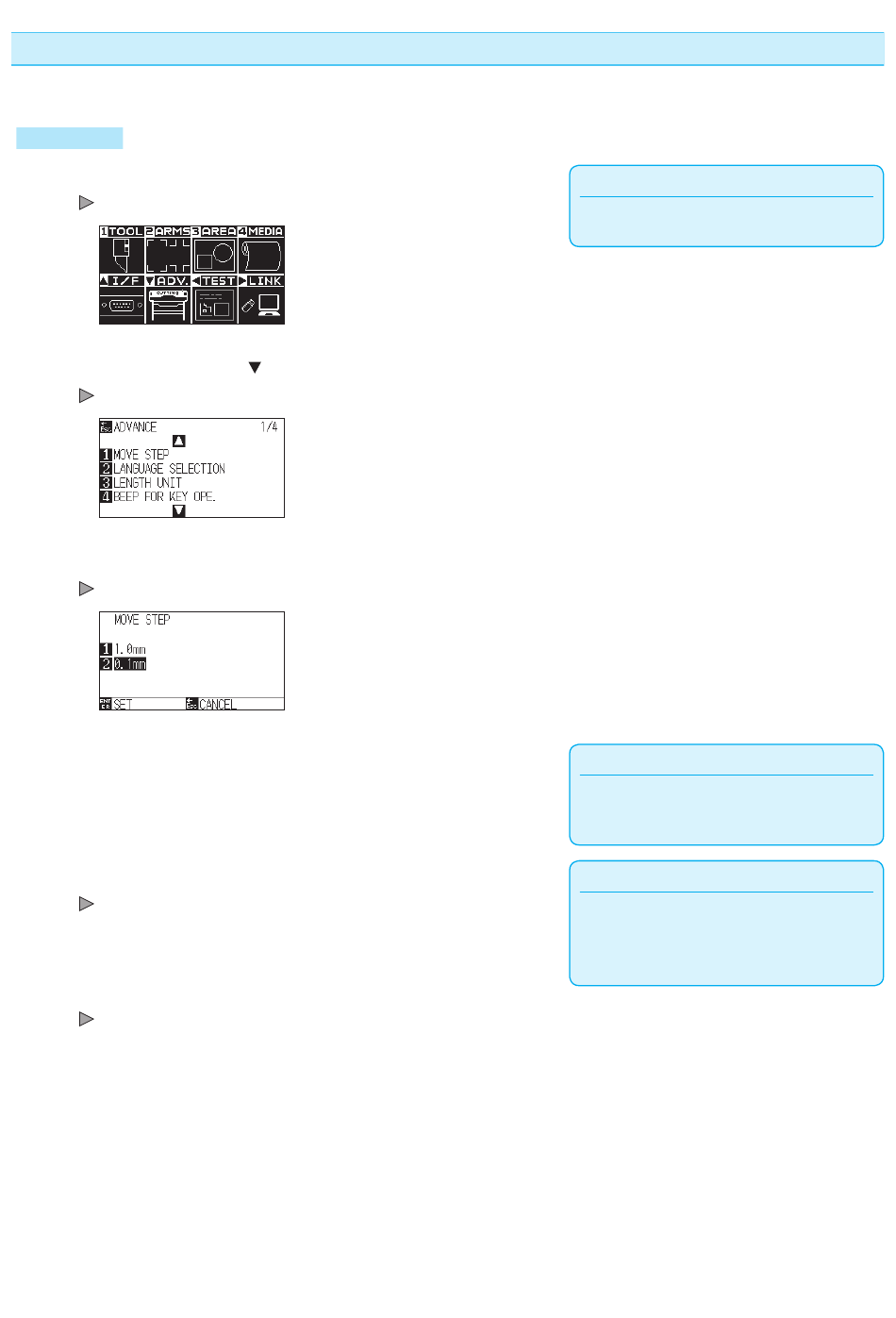

Setting step movement distance

The parameters when setting the cutting direction are determined by the distance of the cutting direction.
Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the POSITION ( ) key (ADV).
ADVANCE screen (1/4) is displayed.
3
Press the [1] key (MOVE STEP).
MOVE STEP screen is displayed.
4
Press the [1] key (1.0mm) or the [2] key (0.1mm).
5
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to ADVANCE screen (1/4)
screen (1/4).
6
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
Perform the settings in Normal mode.
Supplement
Value chosen here will be the movement
distance for the step movement.
Supplement
It will return to ADVANCE screen (1/4) without
changing the settings when you press the [ESC]
key (CANCEL).
3-4
