3 Using the POSITION (
rectangle (red frame in figure) next to the bar code.

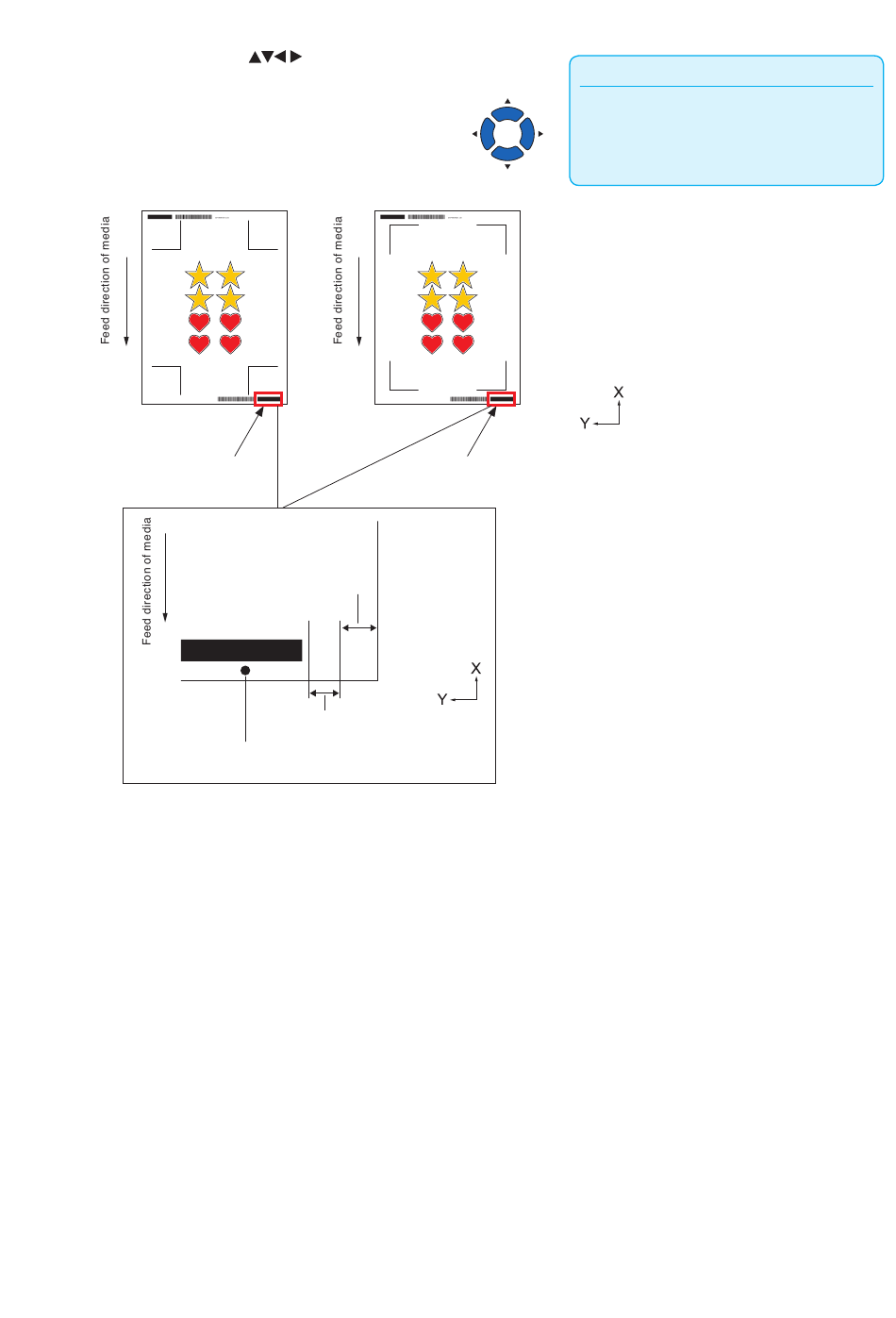

MARK TYPE 1
Move here
Align near the center of the width which is
the forward side of the start mark.
7-
4 Confirm the tool position and press the [ENTER] key.
Bar code scanning starts, the corresponding data is read
from the personal computer, and cutting starts when the
registration mark scanning is completed.
* In continuous operation, after cutting of the first data is
completed, the cutting plotter automatically scans the bar
code, receive the data and repeat the cut without having to
perform the previous operation again.
* When media skews beyond the value set in "Skew
detection" of the cutting plotter, continuous operation is
stopped to prevent media misalignment .
For the "Skew detection", see the "Skew detection" in
Chapter 12.
) key, move the tool to the black
G1100JMAA-F
15mm
Width of push roller
MARK TYPE 2
G1100JMAA-F
Move here
13-35
Supplement
If the start mark cannot be scanned, check the
print result of start mark and the detect start
position etc.
