Position the media and the push rollers to correspond with
the width of the media.
Use the 4 push rollers to push down the sides and center of
the media. Use the grit roller position guide and make sure
the push rollers are on top of the grit rollers.
Use the grit roller position guide and make sure the push
rollers are on top of the grit rollers.
You can adjust the center push roller's hold-down force.

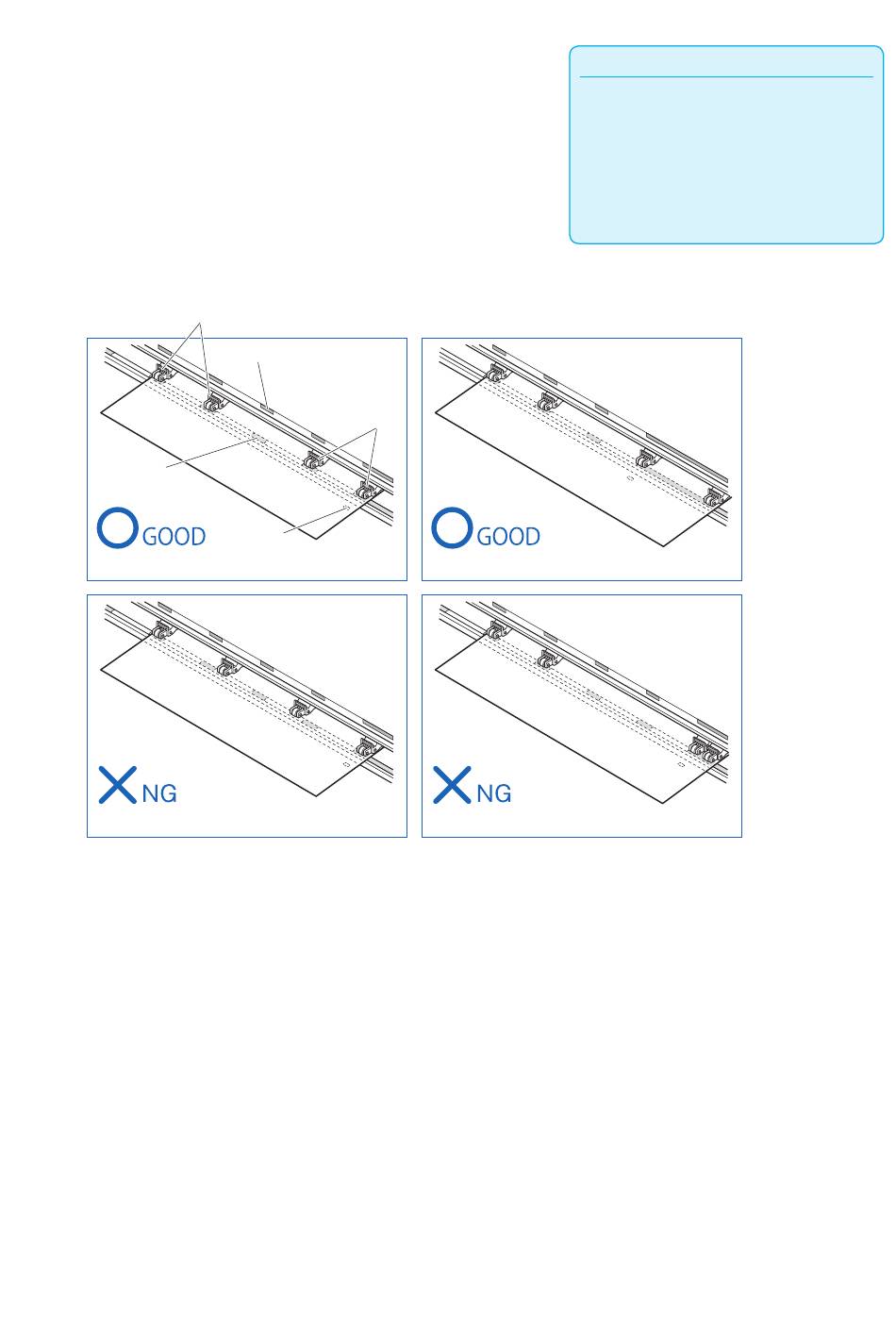

Push roller
Grit roller
(The push roller is on top of the grit roller.)
(The center push roller is not on top of the grit roller.)
Grit roller position guide
Push roller
Media sensor
Supplement
•
•
•
(The push roller is on top of the grit roller.)
(The center push roller is near the edge.)
2-19
The media must always be positioned over
the media sensor.
See "Aligning the Push Rollers" for information
about the position of the push rollers.
See "Aligning the Push Rollers" for information
about push roller hold-down force.
