Automatic detection of registration mark position

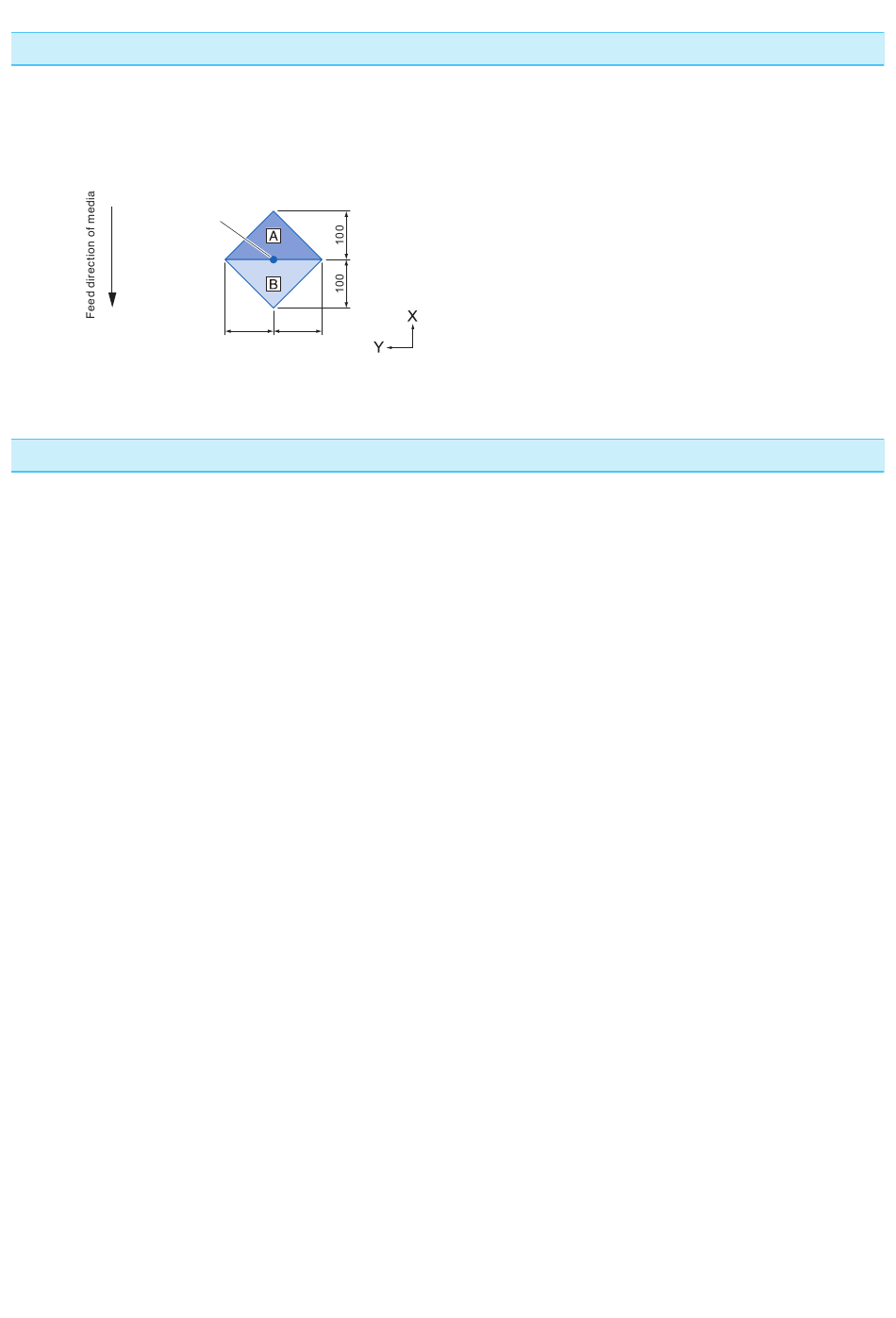

The registration mark is detected within area A from the registration mark scanning start position (tool position).
When the registration mark is not detected within the area A, then within area B is detected. Only when the
registration mark is present in area A or B, it is possible to recognize as the mark.
Registration mark
reading start
position

Media that registration mark cannot be detected

It may be hard to scan the registration mark as following, depending on the media conditions.
•
Transparent media
•
Lines of registration marks are blurred
•
Media that does not become an expected color due to the color of the background after printing
•
Folded media
•
Surface is dirty
•
Laminated media (Depending on the type and condition of the laminate)
If you use media that does not have registration marks printed in black on white background, set the automatic
detection of registration mark position to OFF. (See "Setting registration mark automatic detection")
In addition, set the MARK SCAN Mode. (See "Set the MARK SCAN Mode".)
Unit: approx. mm
100 100
5-7
