Step 2: Create design data for printing and cutting.
Design the drawing pattern that you want to print and the countour to be cut.
Operation
2-

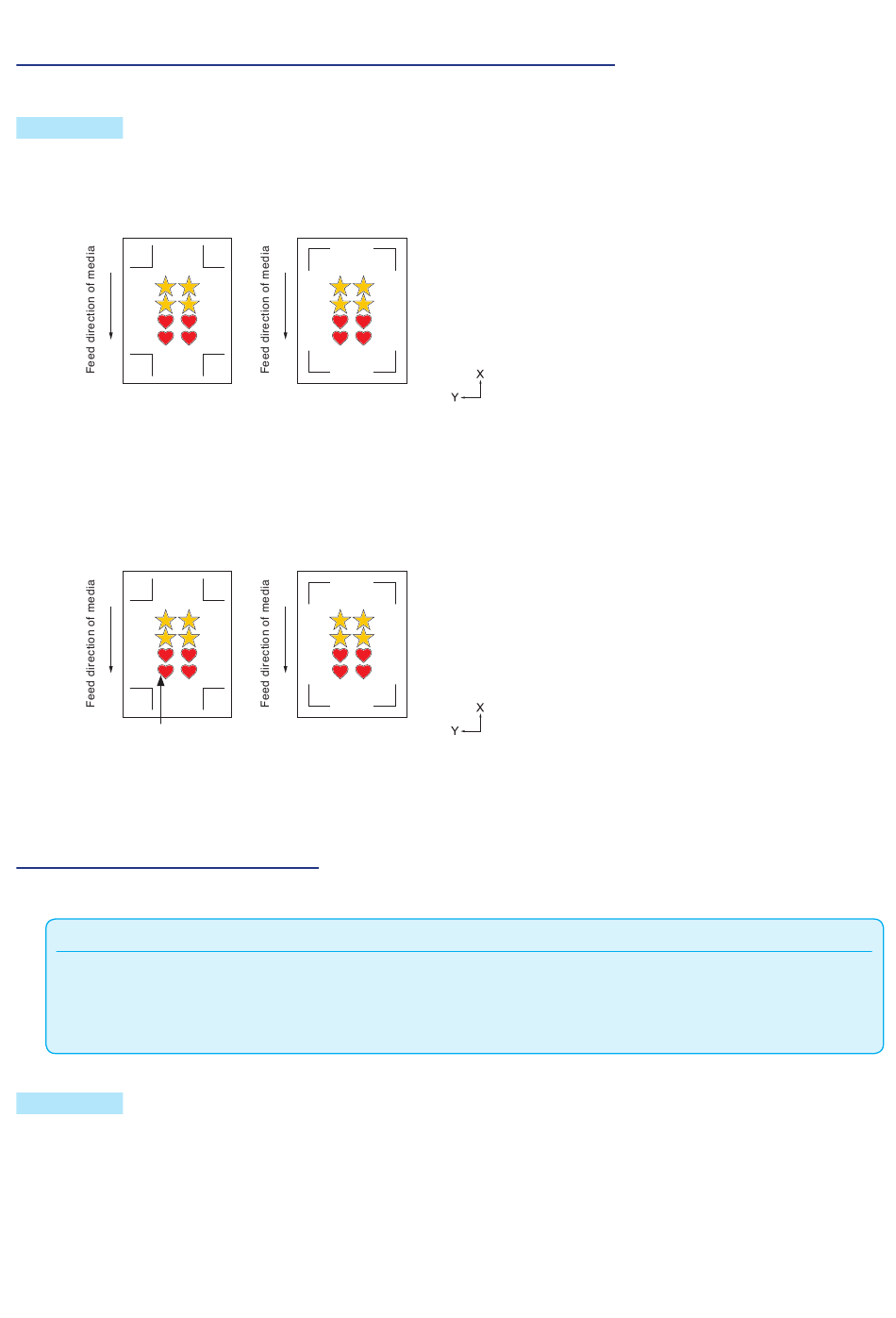

1 Create print design for printing and cutting.
For cutting data, specify a color that is not used in print data.
MARK TYPE 1
2-
2 Create cut design for printing and cutting.
It is recommended that cutting data be created by specifying
a color that is not used in print data.
MARK TYPE 1
Cutting data
Step 3: Print design data.
After creating the design, print it on the media.
Supplement
Pay attention to the following when printing to prevent registration mark scan from failing when cutting.
•
Set the enlarge/shrink scale to 100%.
•
Set the printing position (center/lower left etc.) to "Not change".
Operation
3-
1 Select the printer to use from the Print menu of Graphtec
Studio and print the created data.
MARK TYPE 2
MARK TYPE 2
