Forward run prohibited (P-OT) and reverse run prohibited (N-OT) signals cannot be input during the zero-point search
INFO
operation.

7.2.4 Parameter Settings Initialization (Fn005)

This function is used when returning to the factory settings after changing parameter settings.
Pressing the DSPL/SET or MODE/SET Key during servo ON does not initialize the parameter settings.
After initialization, turn OFF the power supply and then turn ON again.
Initialize the parameter settings with the servo OFF
IMPORTANT
Display after
Step
Operation
1
2
3
4
5
6
7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Digital Operator Panel Operator
DATA
ENTER
DATA
(DATA/ENTER K ey)
(DATA/SHIFT Key)
(Press at least 1 s.)
Digital Operator Panel Operator
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DATA
ENTER
DATA
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
End of initialization
After about one
second
DATA
ENTER
DATA
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
7.2 Operation in Utility Function Mode (Fn
Description
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second.
Fn003 display appears again.
The motor will be servo OFF status.
.
Description

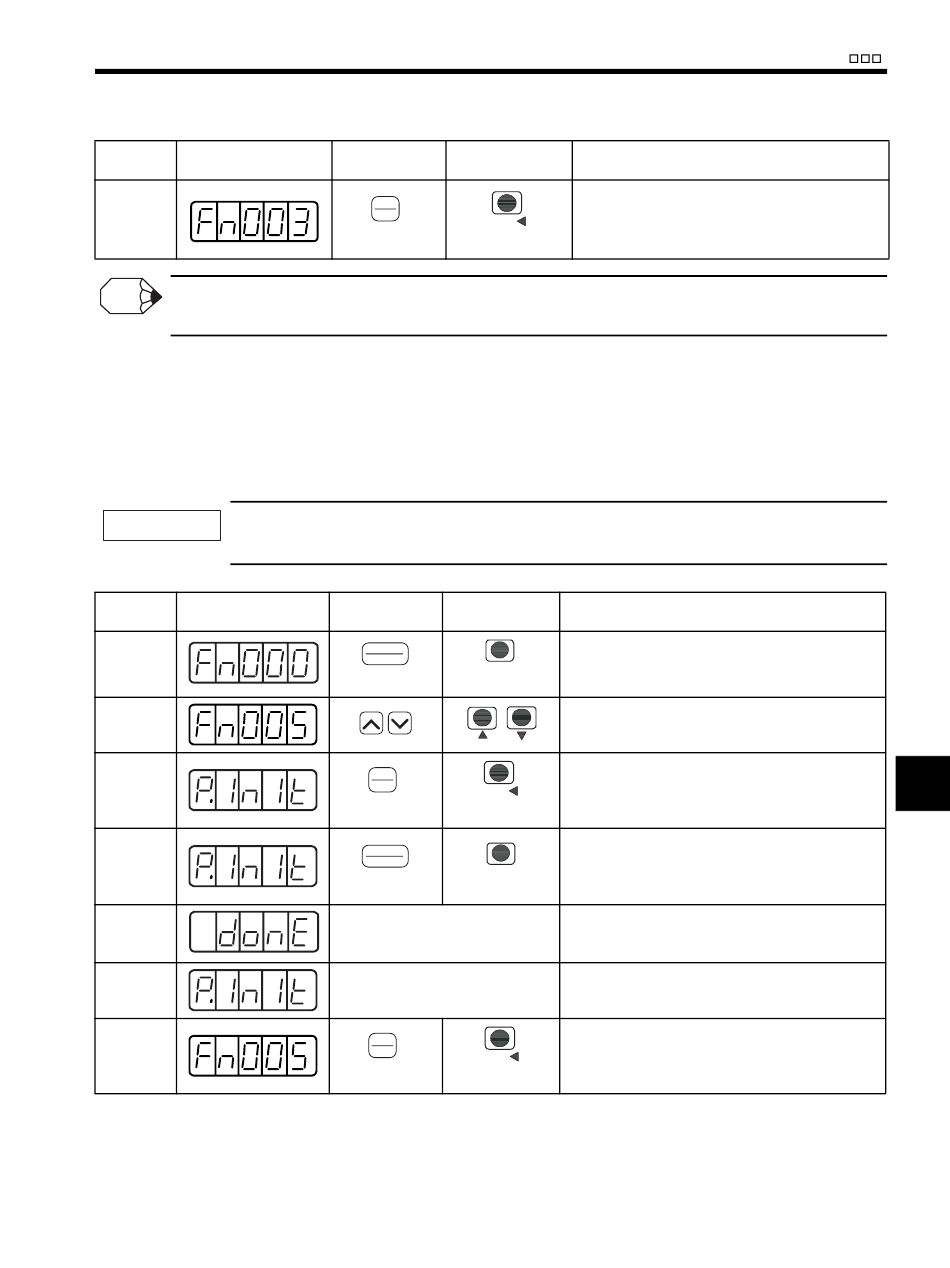

Press the DSPL/SET or MODE/SET Key to select the
utility function mode.
Press the UP or DOWN Key to select Fn005.
Note: The enabled digit blinks.
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second, and the display will be
as shown on the left.
Press the DSPL/SET or MODE/SET Key. Then, the
parameters will be initialized.
During initialization, the display shown on the left
blinks.
When the initialization of parameter setting com-
pletes, the display shown on the left blinks for about
one second.
The display changes from "donE" to the display
shown on the left.
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to return to the utility
function mode display Fn005.
)
