Motor Models Display (Fn011) - YASKAWA SGM H Series User Manual

7 Digital Operator/Panel Operator

7.2.9 Motor Models Display (Fn011)

7.2.9 Motor Models Display (Fn011)

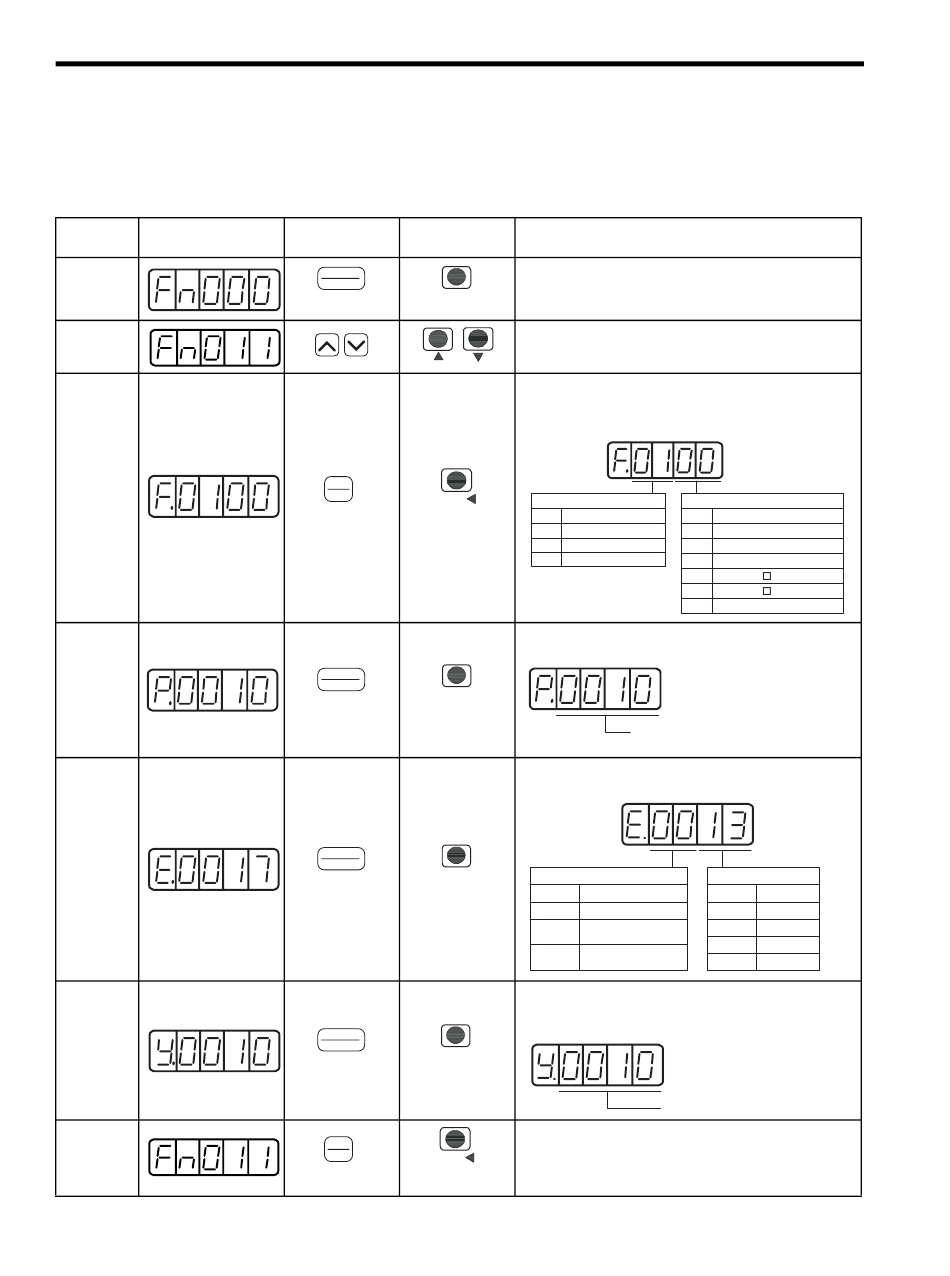

This mode is used for motor maintenance, set the parameter Fn011 to select the motor model check mode. If the
SERVOPACK has been custom-made, you can also check the specification codes of SERVOPACKs.
Display after
Step
Operation
1
2
3
4
5
6
7
7-16
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Digital Operator Panel Operator
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DATA
ENTER
DATA
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DATA
ENTER
DATA
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
Description
Press the DSPL/SET or MODE/SET Key to select the
utility function mode.
Press the UP or DOWN Key to select Fn011.
Note: The enabled digit blinks.
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to display the servomotor
model and voltage code.
Motor Voltage
Data
Model Data
00
00 100VAC, 140VDC
01
200VAC, 280VDC 01
02 Reserved
02
03
04
05
Press the DSPL/SET or MODE/SET Key to display the
servomotor capacity.
Motor capacity in units of 10 W
The above example indicates 100 W.
Press the DSPL/SET or MODE/SET Key, and the
encoder type and resolution code will be displayed.
Encoder Type
Data Type
00 Incremental
Multi-turn data
01
absolute encoder
Single-turn data
02
absolute encoder
Press the DSPL/SET or MODE/SET Key to display the
SERVOPACK's code for custom orders.
Note: The display "y.0000" means standard model.
Code for custom orders
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to return to the utility
function mode display Fn011.
Motor Type
Model
SGMAH
SGMPH
SGMSH
SGMGH- A(1500 min -1 )
SGMGH- B(1000 min -1 )
SGMDH
Encoder Resolution
Data Resolution
13 13-bit
16 16-bit
17-bit
17
20
20-bit
