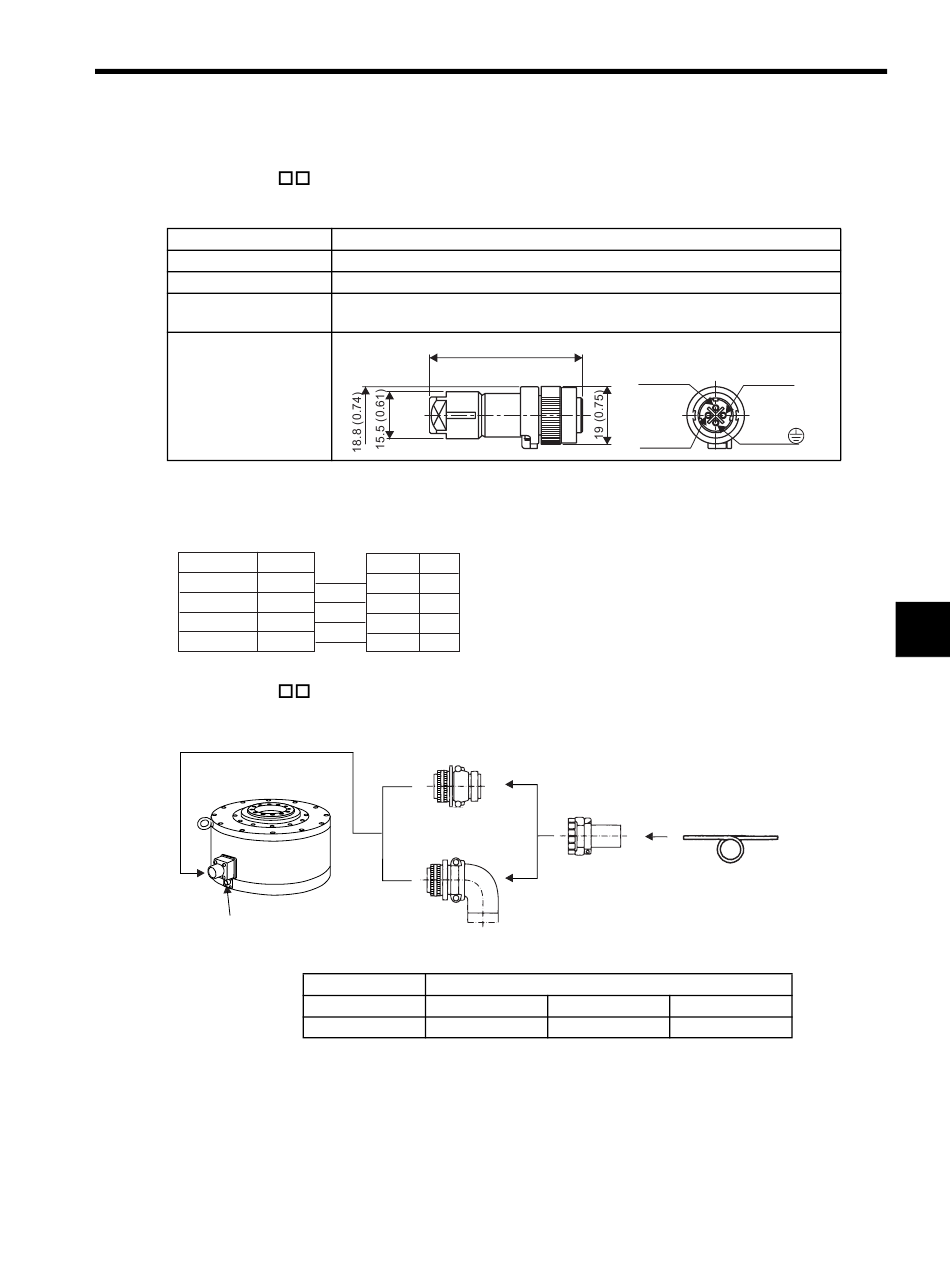

5.2.12 Connectors for SGMCS Servomotors

(1) For SGMCS-
(a) Servomotor Main Circuit Connectors
Items
Manufacturer
Plug
Applicable Cable Outer
Diameter
Dimensional Drawings
in mm (in)
Note: The mating connector type on servomotor: JN1AS04MK3
(b) Wiring Specifications
SERVOPACK end
Lead Color
Signal
Red
Phase U
White
Phase V
Phase W
Blue
FG
Green/(yellow)
(2) For SGMCS-
(a) Connector Configuration Diagram
SGMCS Servomotor
Servomotor-end
connector
