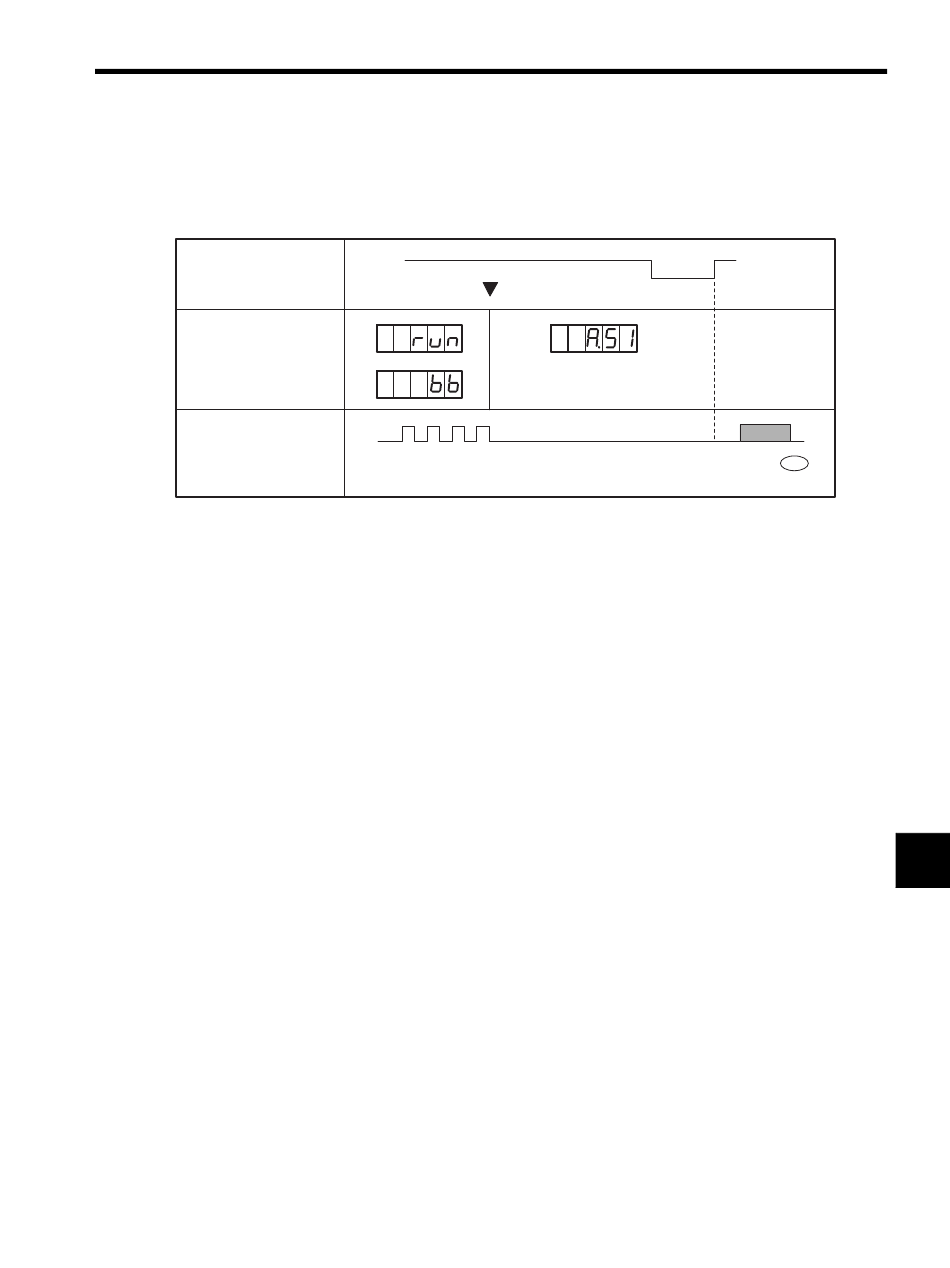

(4) Transferring Alarm Contents
When an absolute encoder is used, SEN signals can be utilized to transfer the alarm detection contents from PAO
outputs to the host controller as serial data.
For alarm list, refer to 11.1.1 Alarm Display Table.
SEN Signal
Panel Operator
(Digital Operator)
Display
PAO
Serial Data
