7 Digital Operator/Panel Operator
7.3.3 Output Circuit Signal Allocation
• Allocating Output Signals
The procedure to replace Rotation Detection (/TGON) signal allocated to CN1-27 (28) with factory setting to
EXAMPLE
"Invalid" and allocate Brake Interlock (/BK) signal to CN1-27 (28) is shown below.
Pn50E:
Display after
Step
Operation
1
2
3
4
5
6
7
8
9
10
11
Turn OFF the power and ON again to enable the changes of output signal selection (Pn50E and Pn50F).
7-26
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Before After
Digital
Operator
DSPL
SET
(DSPL/SET Key)
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER K ey)
(DATA/SHIFT Key)
(DATA/SHIFT Key)
DATA
ENTER
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
DATA
ENTER
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
(UP Key)
DATA
ENTER
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
(DATA/SHIFT Key)
DATA
ENTER
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
DATA
ENTER
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
Panel
Operator

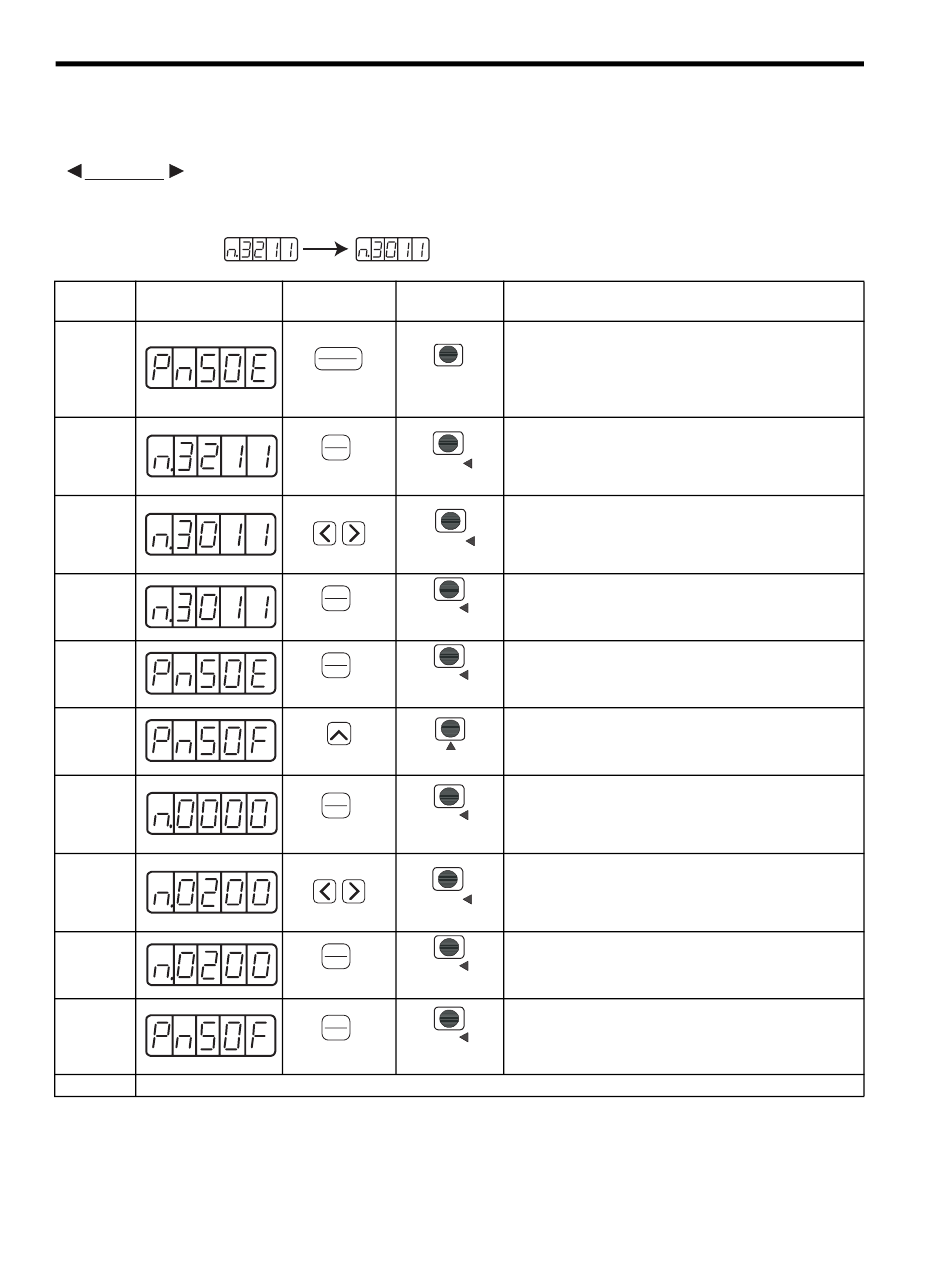

Press the DSPL/SET or MODE/SET Key to select the
