YASKAWA SGM H Series User Manual page 438

Display after
Step
Operation
Alarm generated
1
2
3
4
5
6
7
8
9 Turn OFF the power, and then turn it ON again to make the setting valid.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Digital Panel
Operator Operator
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
DATA
ENTER
DATA/
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)
DSPL
SET
MODE/SET
(DSPL/SET Key)
(MODE/SET Key)
About one second later
DATA
ENTER
DATA/
(DATA/SHIFT Key)
(DATA/ENTER K ey)
(Press at least 1 s.)

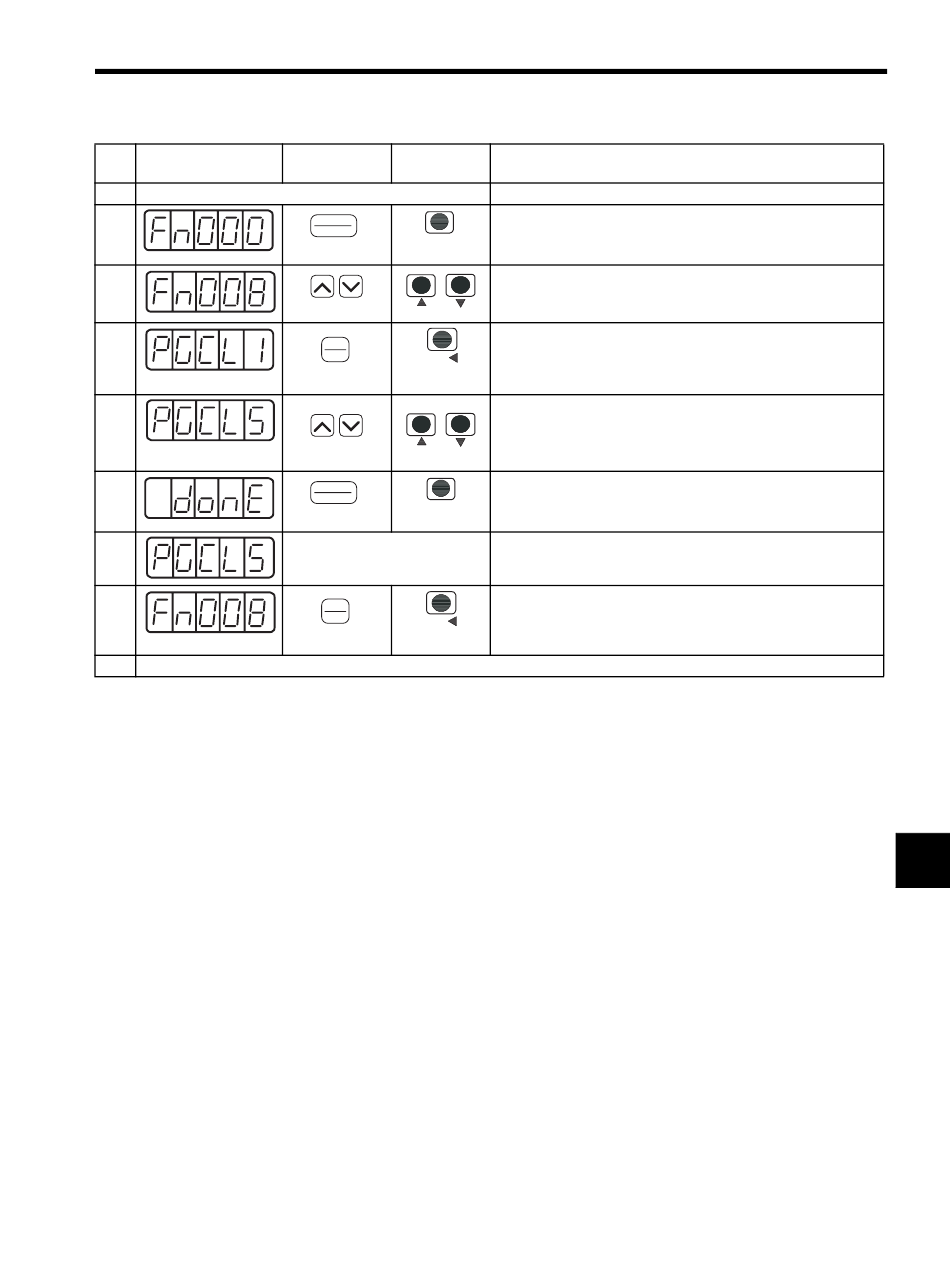

Description
Press the DSPL/SET or MODE/SET Key to select the utility func-
tion mode.
Press the UP or DOWN Key to select parameter Fn008.
Note: The digit that can be set will blink.
Press the DATA/ENTER Key once, or DATA/SHIFT Key for
more than one second.
The display will be as shown at the left.
Continue pressing the UP Key until PGCL5 is displayed.
Note: If there is a mistake in the key operation, "nO_OP" will
blink for about one second. The panel operator or digital
operator will return to the utility function mode.
Press the DSPL/SET or MODE/SET Key. This will clear the mul-
titurn data of the absolute encoder.
When completed, "donE" will blink for about one second.
After "donE" is displayed, "PGCL5" will be displayed again.
Press the DATA/ENTER Key once, or DATA/SHIFT Key for
more than one second to return to the Fn008 display of the utility
function mode.
8.4 Absolute Encoders
8
8-31
