(2) Using the Panel Operator
Turn ON the power
Press DSPL/SET Key.

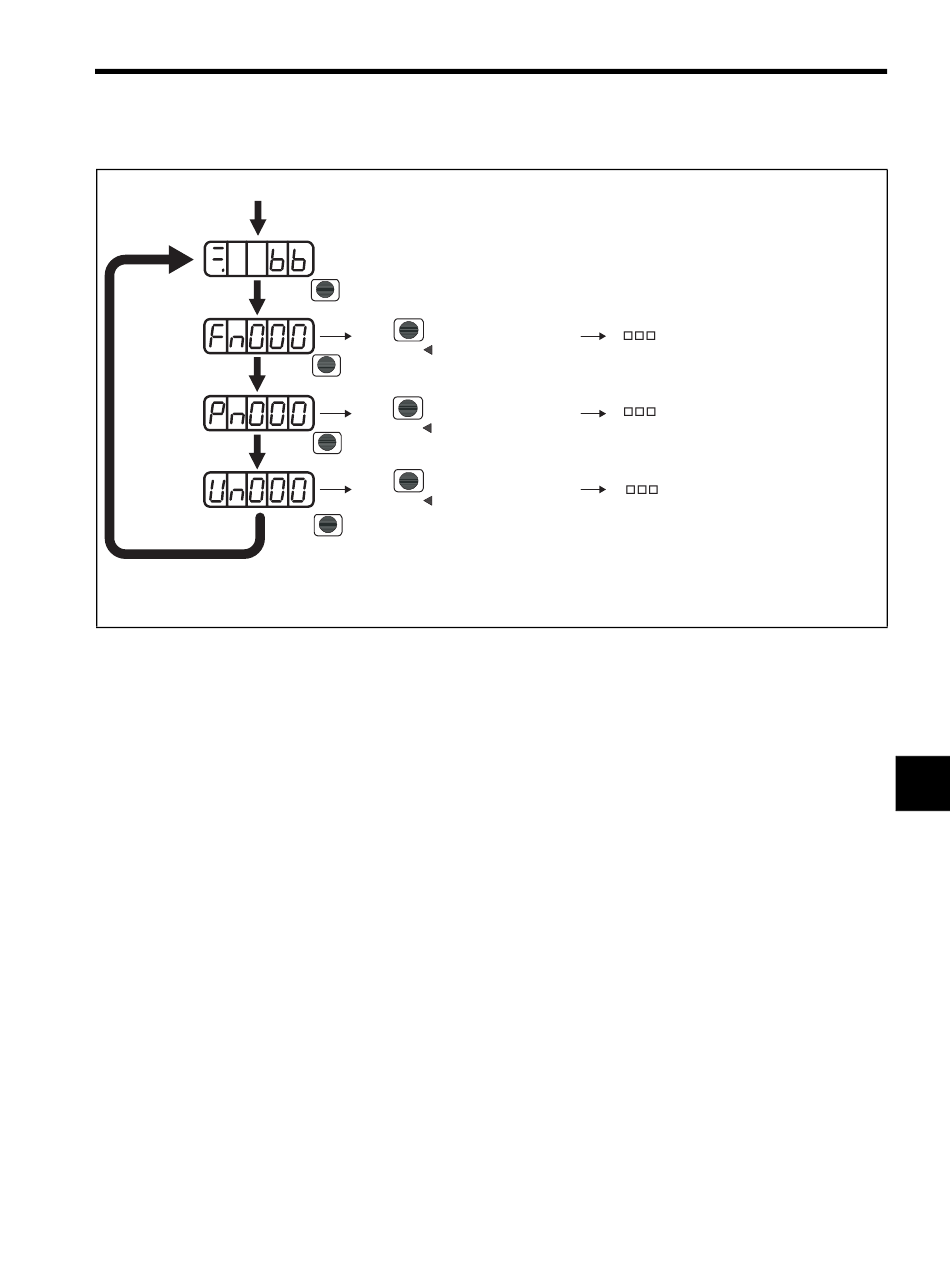

A basic mode is selected in the following order.
Press
MODE/SET
Press
Repeat
MODE/SET
Press
MODE/SET
Press
Press DSPL/SET Key and UP or DOWN Key to select the desired parameter number.
Then, press DATA/SHIFT Key for more than one second to display the contents of selected
parameter number in the selected mode. (Refer to each operation instruction described later.)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Status Display Mode (Refer to 7.1.4)
.
Press
for more than one second.
DATA/
(DATA/SHIFT)
.
Press
for more than one second.
DATA/
(DATA/SHIFT Key)
.
Press
for more than one second.
DATA/
(DATA/SHIFT Key)
.
MODE/SET
7.1 Functions on Digital Operator/Panel Operator
Fn
: Utility Function Mode (Refer to 7.2)
Pn
: Parameter Setting Mode (Refer to 7.3)
Un
: Monitor Mode (Refer to 7.4)
7
7-5
