8.4.1 Interface Circuits

8.4.1 Interface Circuits

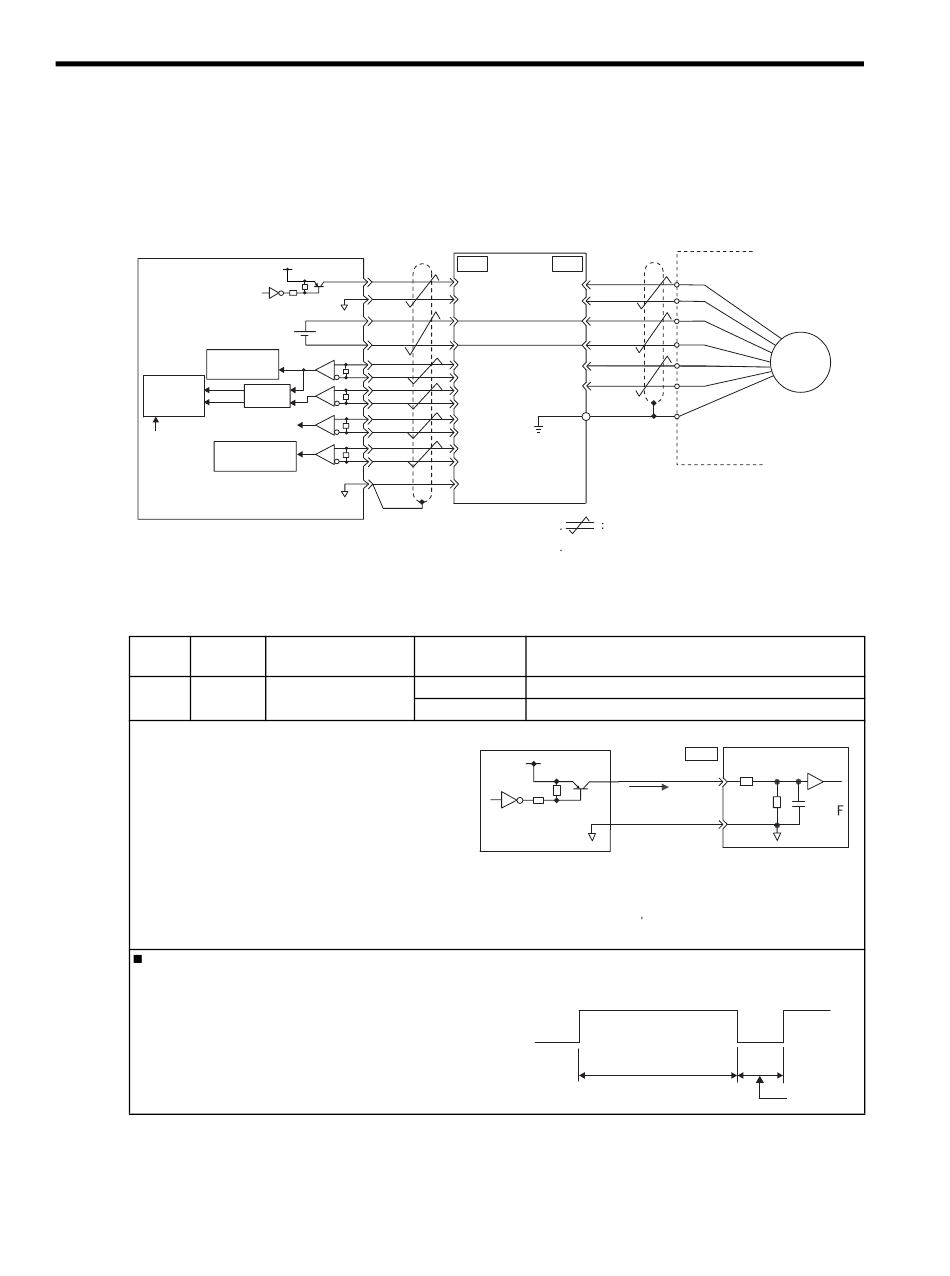

The following diagram shows the standard connections for a an absolute encoder mounted to a servomotor. The
connection cables and wiring pin numbers depend on the servomotor. For details, refer to chapter 5 Specifica-
tions and Dimensional Drawings of Cables and Peripheral Devices.
Host controller
7406
Battery
Serial interface
circuit
UP
Up/down
counter
DOWN
Clear
Serial interface
circuit
Applicable line driver:
Texas Instruments's SN75175 or KM3486
Terminating resistance R: 220 to 470 Ω
• SEN Signal Connection
Type Name
Input SEN
This input signal is required to output absolute data
from the SERVOPACK.
Let at least three seconds elapse after turning ON the
power before changing the SEN signal to high level.
When the SEN signal changes from low level to high
level, the multiturn data and initial incremental pulses
are output.
Until these operations have been completed, the servo-
motor cannot be turned ON regardless of the status of
the servo ON signal (/S-ON). The panel operator dis-
play will also remain "b.b."
Refer to 8.4.6 Absolute Encoder Reception Sequence.
IMPORTANT
Maintain the high level for at least 1.3 seconds when the SEN
signal is turned OFF and then ON, as shown in the figure on the
right.
