5.2.3 SGMGH, SGMSH, and SGMDH Servomotor Connector Configurations

5.2.3 SGMGH, SGMSH, and SGMDH Servomotor Connector Configurations
The SGMGH, SGMSH, and SGMDH servomotor connector configurations are shown below.
The connectors conforming to IP67 and the European Safety Standards are not available for SGMAH and
SGMPH servomotors.
Select and prepare the proper plug and cable clamp.

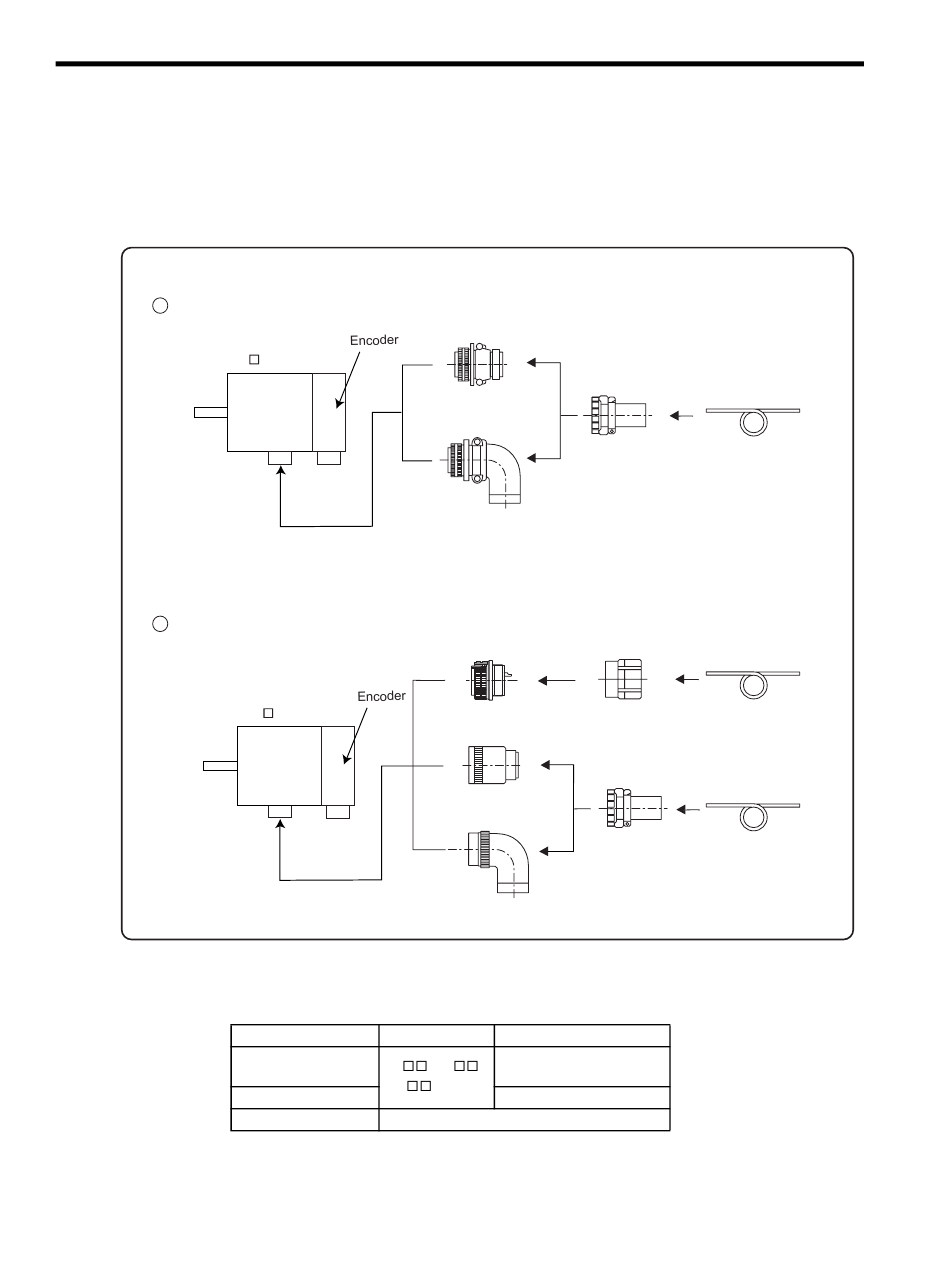

1 Configurations of Standard Environment Connectors
SGM H servomotor
Connector on
servomotor
2 Configurations of Connectors Conforming to IP67 and the European Safety Standards
SGM H servomotor
Connector on
servomotor
• Connector Manufacturers
Contact Yaskawa Controls Co., Ltd.
5-12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Standard straight plug
Standard L-shaped plug
Connector
Plug
JL
CE
Cable clamp
Conduit
Non-waterproof
cable clamp
Plug
Waterproof straight plug
Waterproof L-shaped plug
Type Manufacturer
Japan Aviation Electronics
(JA )
Industry, Ltd.
DDK Electronics, Inc.
Nippon Flex Co., Ltd.
Cable
Cable
Conduit
Cable
Waterproof
cable clamp
