(b) Servomotor Winding Resistance Loss

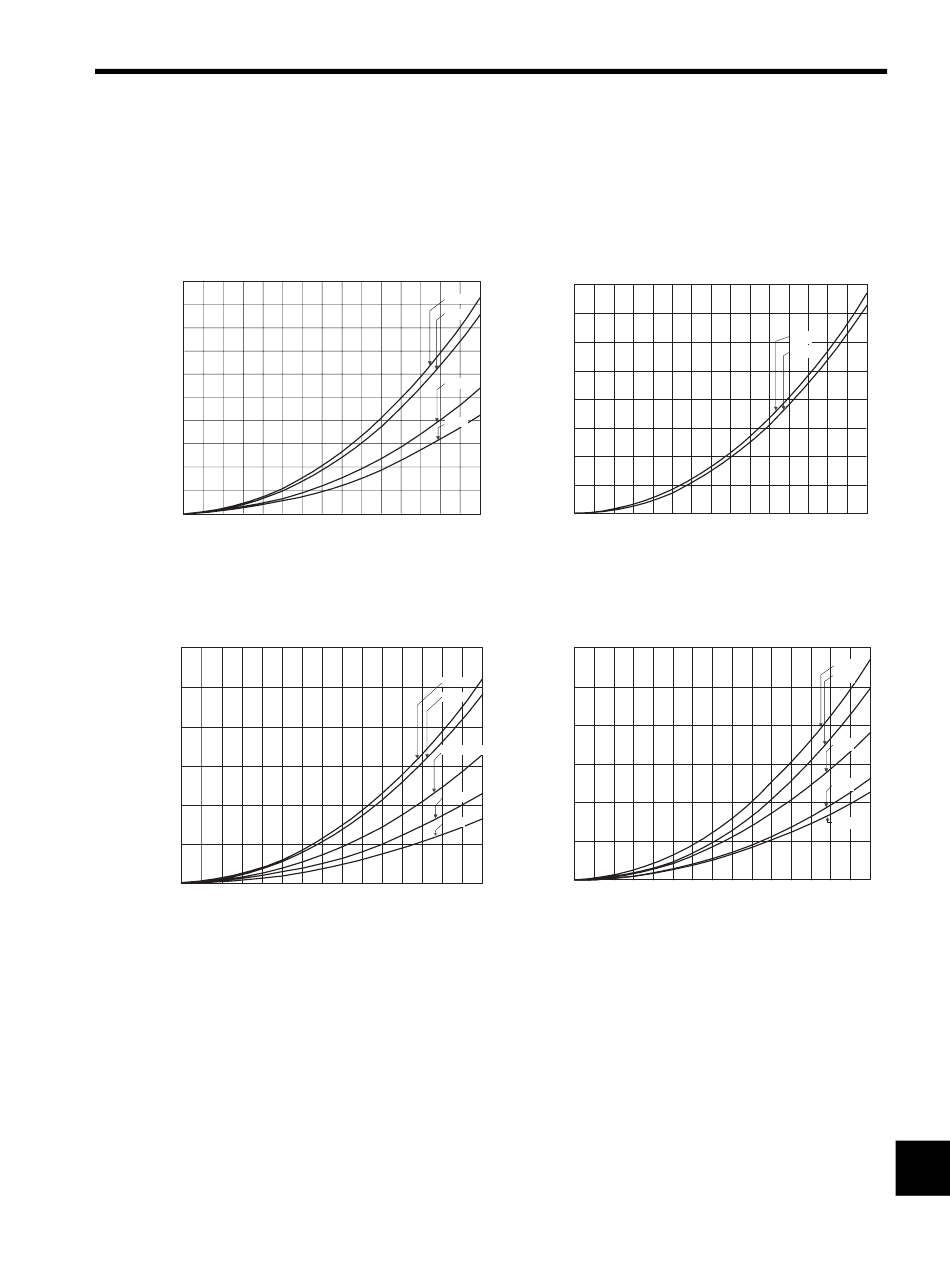

The following diagrams show the relationship, for each servomotor, between the servomotor's generated
torque and the winding resistance loss.
• 100-V Servomotors
SGMAH Servomotors
200
180
160
140
Loss
120
(W)
100
80
60
40
20
0
0
100
• 200-V Servomotors
SGMAH Servomotors
300
250
200
Loss
(W)
150
100
50
0
0 100
