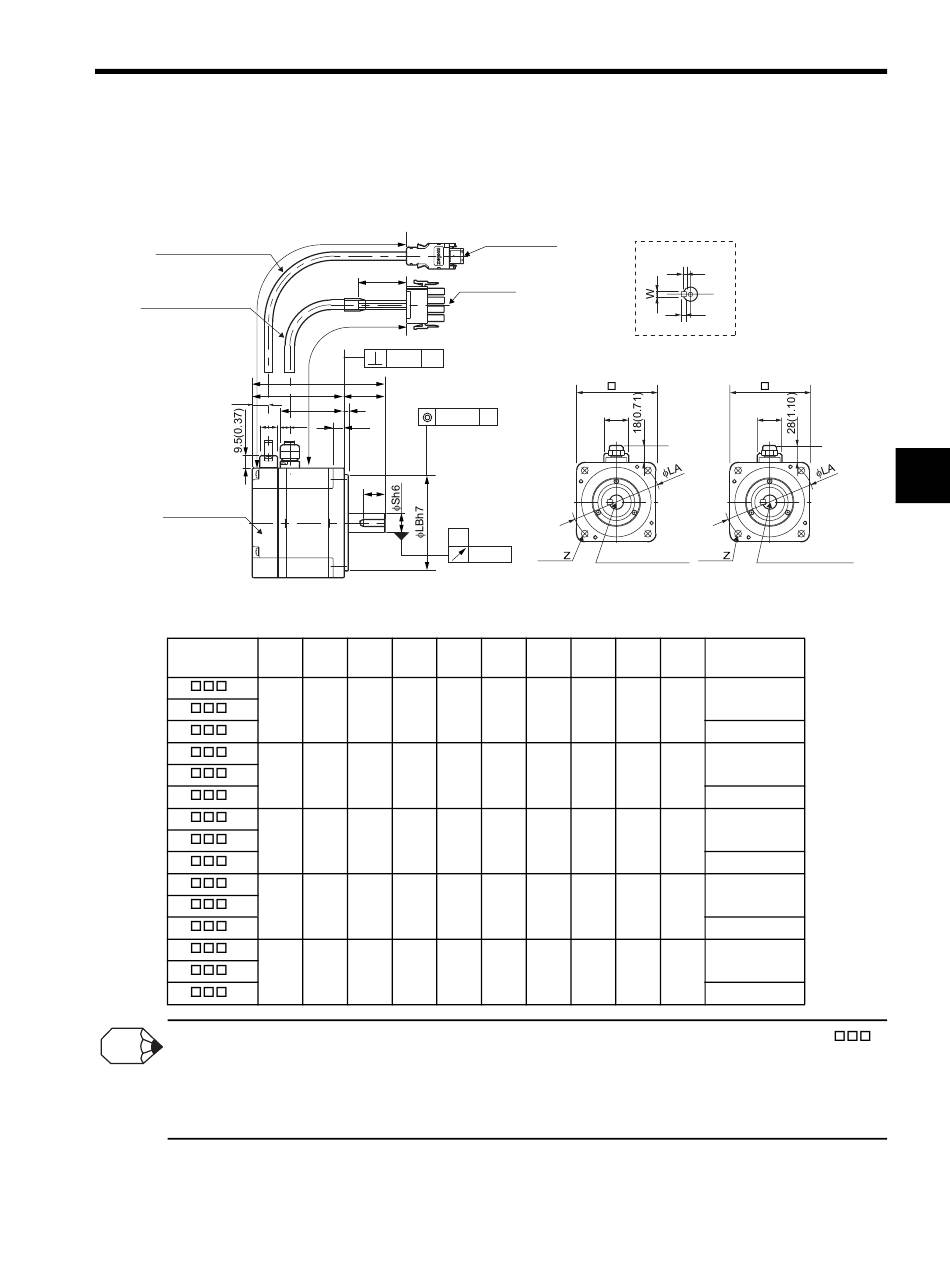

3.13 Dimensional Drawings of SGMPH Servomotors (3000 min
3.13.1 SGMPH Servomotors (3000 min
Encoder cable φ5 (φ0.20)
UL20276
Motor cable φ7 (φ0.28)
LF
13
(0.51)
Serial encoder
Model
SGMPH-
01 21
87
01 41
(3.43)
01 61
02 21
97
02 41
(3.82)
02 61
04 21
117
04 41
(4.61)
04 61
08 21
126.5
(4.98)
08 41
08 61
15 21
154.5
15 41
(6.08)
15 61
1. The dimensions for L and LL of a servomotor incorporating an encoder with super-capacitor (model: SGMPH-
INFO
are as shown below.
SGMPH-01, 02, and 04: L-dimension + 6.4 mm (0.25 in), LL-dimension +6.4 mm (0.25 in)
SGMPH-08 and 15: L-dimension + 6.0 mm (0.24 in), LL-dimension +6.0 mm (0.24 in)
2. The working point of the SGMPH servomotor radial load is at the position of minus 5 mm from the shaft end.
