CDM-570/570L Satellite Modem with Optional IP Module
Physical Description
The keypad comprises six individual keyswitches, mounted directly behind a fully sealed
membrane overlay. They have a positive 'click' action which provides the user with
tactile feedback. These six switches are identified as ◄ ► (left, right),
arrows, ENTER and CLEAR. The functions of these keys are described in the 'Front
Panel Operation' section.
There are eight LEDs on the front panel. The behavior of these LEDs is described in the
'Front Panel Operation' section.
There are eight LEDs on the rear panel, also. Six of these (all orange) indicate the
interface type currently selected. For systems in a redundant configuration a green LED
indicates the Online/Offline status of the unit. When the unit is connected to a 1:N
switch, a red LED indicates that caution is required, as there may be DC voltages and
other control signals present on certain pins on the 25 pin Data Interface connector.
Associated with this mode is a slide switch that selects the 1:N mode.
At the far left of the front panel is a USB Type B connector, used for re-flashing the
modem firmware, using a PC.
4.3

Rear Panel

(Shown with optional IP Module Ethernet Interface installed)
External cables are attached to connectors on the rear panel of the CDM-570L. These
comprise:
•
•
•
•
•
•
•
•
•
•
•
•

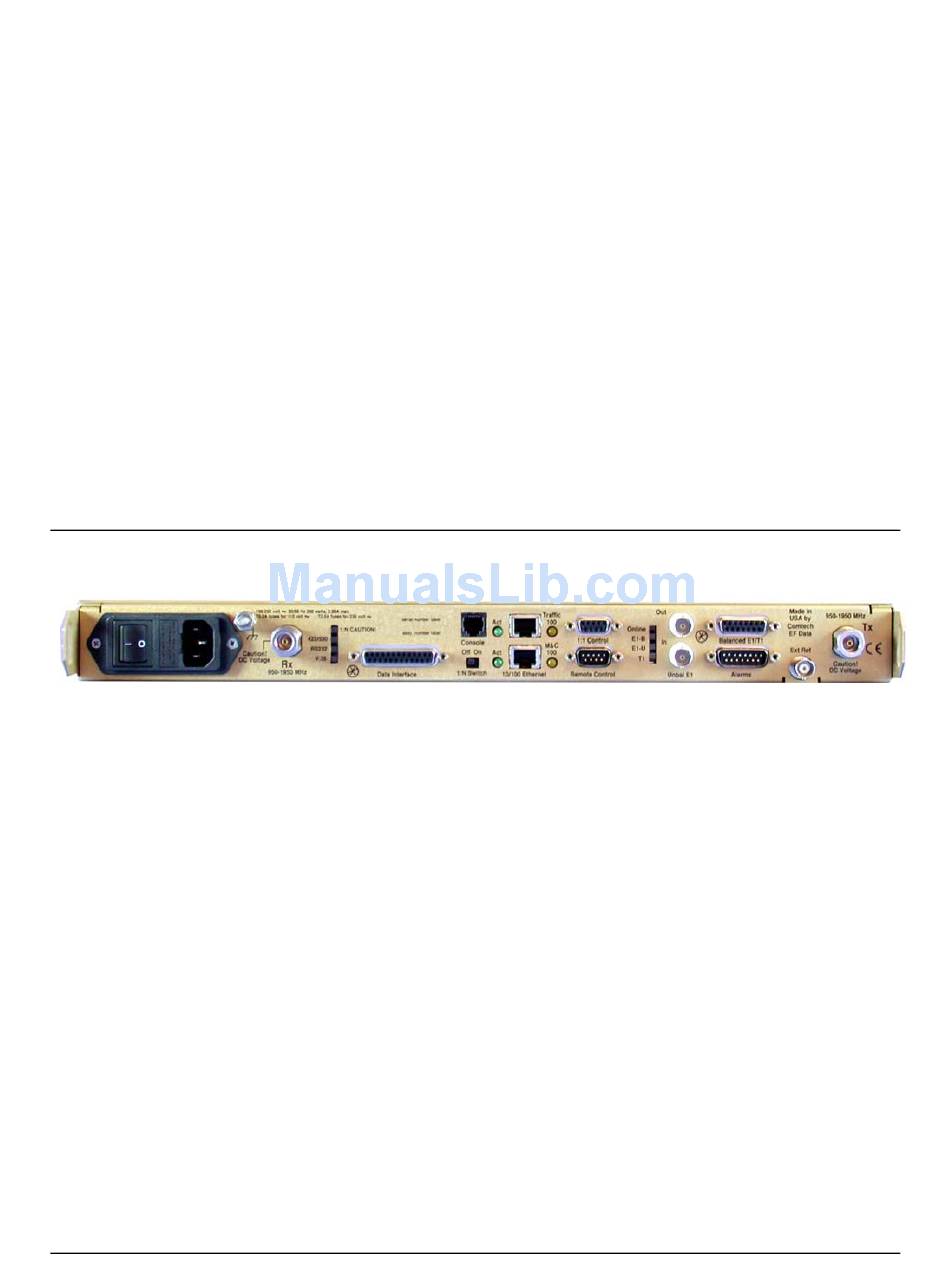

Figure 4-2. Rear Panel - CDM-570L
IEC line input connector
Rx and Tx IF connectors - 'N' type female on CDM-570L, BNC female on
CDM-570
Data interface connector
External reference connector
Form C alarm connector
T1/E1 Balanced G.703 connector
Unbalanced G.703 Tx/Rx connectors
Remote Control connector
1:1 Control connector
10/100 BaseT Ethernet management port connector (M&C)
10/100 BaseT Ethernet traffic port connector (Traffic, with optional IP Module)
RJ11 6-pin Async Serial Console port (Console, with optional IP Module)
4–2
Revision 3
MN/CDM570L.IOM
(up, down)
▲▼
