8.6 Interference Area
8.6.3

Axis Interference Area

Axis Interference Area

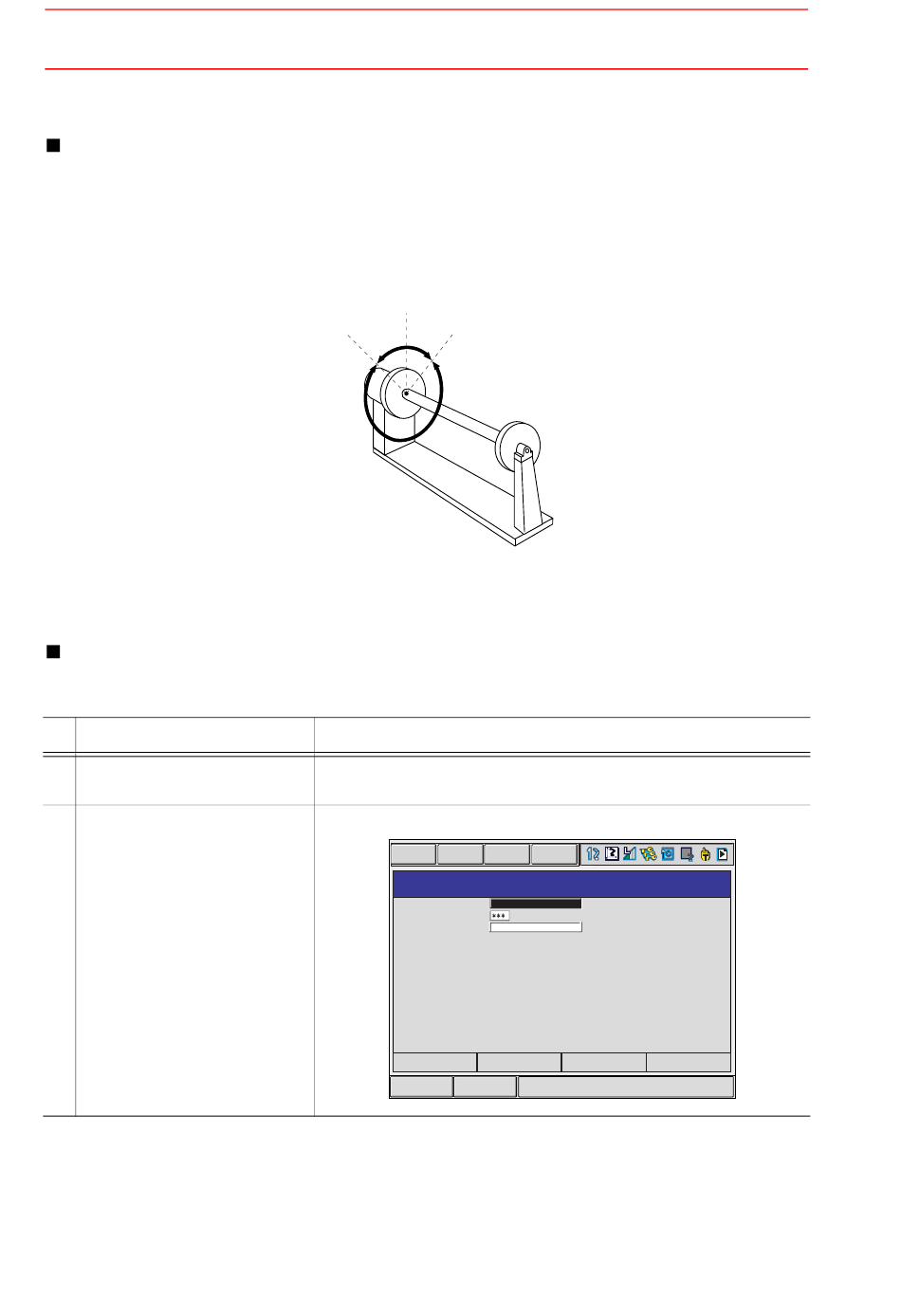

The axis interference area is a function that judges the current position of the each axis and
outputs a signal. Once the maximum and minimum values have been set at the plus and
minus sides of the axis to define the working range, a signal indicating whether the current
position of the axis is inside or outside this range is output. (ON: inside, OFF: outside)
Setting Operation
Number Input of Axis Data
Operation
1 Select {ROBOT} under the
main menu.
2 Select {INTERFERENCE}.
0
Max value Min value
+ side
ON
OFF
Axis Interference Signal for Station Axis
The INTERFERENCE AREA window appears.
DATA
INTERFERENCE AREA
INTERFERENCE SIGNAL : 1 / 32
METHOD
CONTROL GROUP
CHECK MEASURE
Main Menu
8-56
- side
Explanation
EDIT DISPLAY UTILITY
AXIS INTERFERENCE
COMMAND POSITION
PAGE
Short Cut
