Aligning the Push Rollers

This section describes how to align the push rollers.
Aligning the Push Rollers

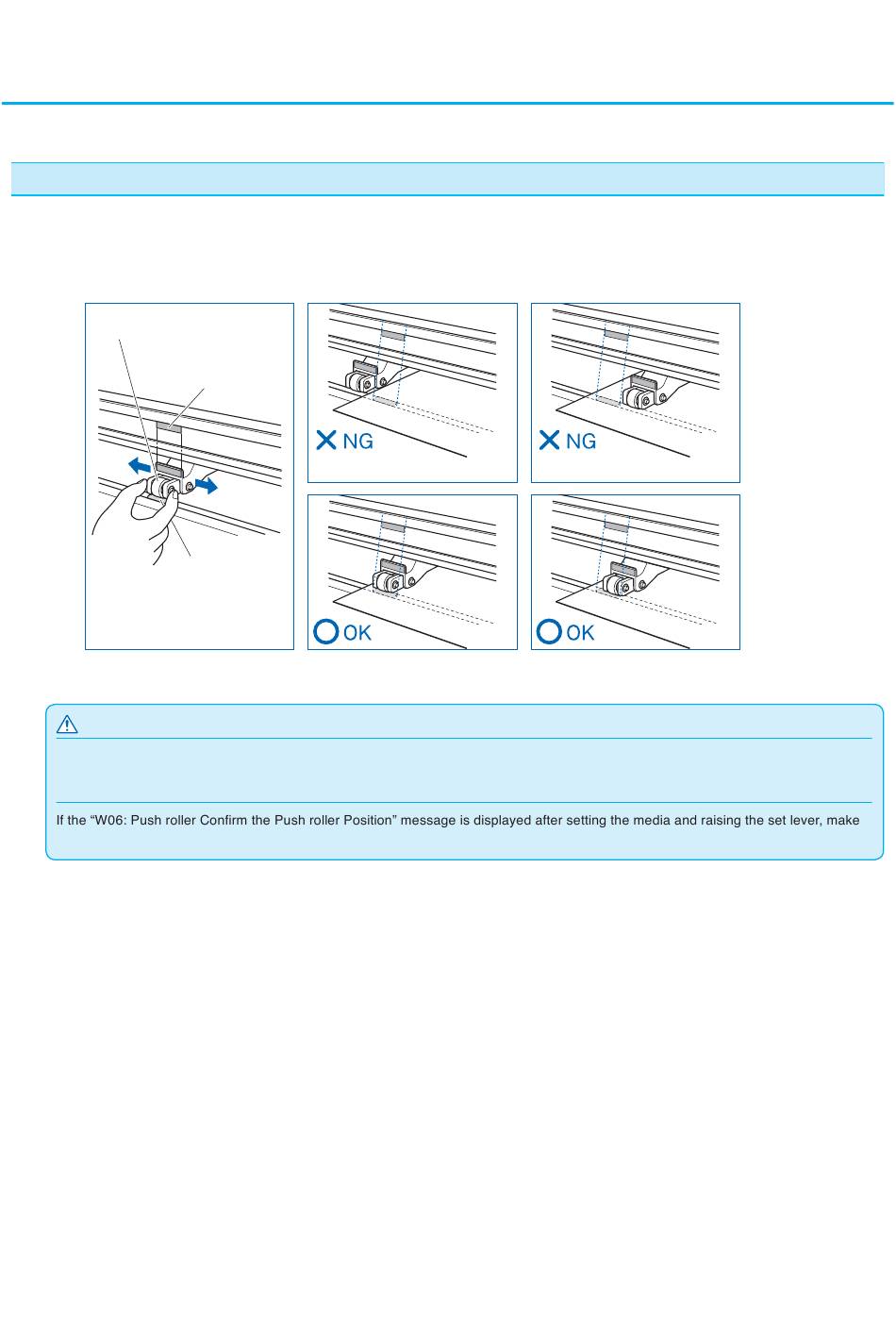

Position the left and right push rollers to correspond with the width of the media. Adjust the push rollers so that
they are positioned above both the media and the grit rollers.
Position the push rollers within the grit roller position guides ensures that they are above the grit rollers.
Push roller
Grit roller position guide
Grit roller
CAUTION
To move the push rollers, the media set lever must be in the lowered position.
Supplement
sure everything is set correctly.
(It isn't on the grit roller.)
2-39
(It isn't on the grit roller.)
