2.4

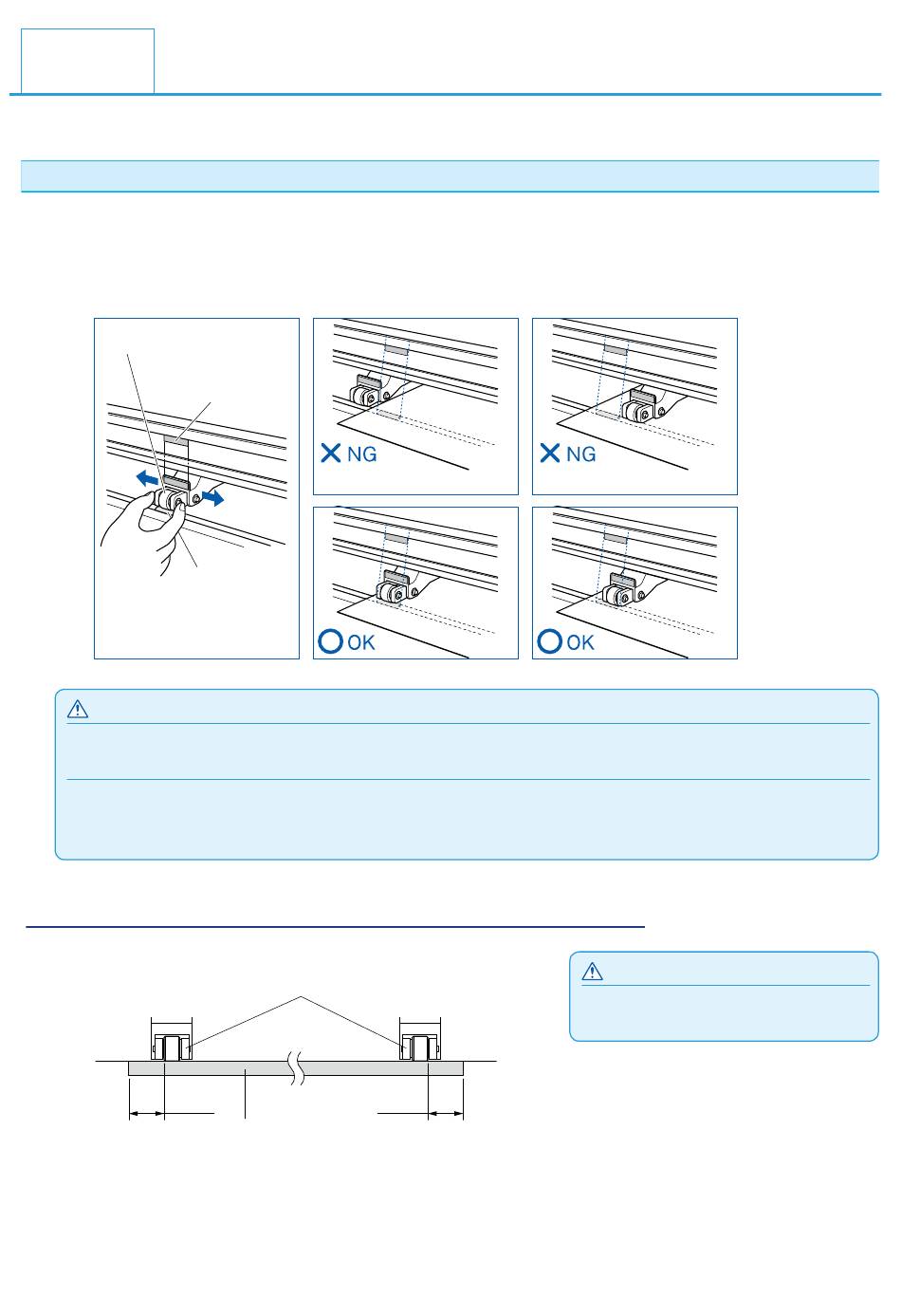

Aligning the Push Rollers

This section describes how to alignment of the push rollers.

Aligning the Push Roller

Position the left and right push rollers to correspond with the width of the media. Adjust the push rollers so that
they are positioned above both the media and the grit rollers.
All the push rollers should come above the grid rollers.
Position the push rollers within the grit roller position guides ensures that they are above the grit rollers.
Push roller
Grit roller
CAUTION
To move the push rollers, the media set lever must be in the lowered position.
Supplement
If a [confirming push roller point] message appears after setting the media and raising the set lever, it means the right push roller is
not set on the long right grit roller, or that the left or center 3 push rollers are not set on the proper grit roller. Make sure everything is
set correctly.

When Feeding Long-axis Media (at exceeds 2 meters)

Position the push rollers at least 15 mm inside the edges of the media.
15 mm
Grit roller
position guide
(It isn't on the grit roller.)
Push roller
Media
(It isn't on the grit roller.)
15 mm
2-16
CAUTION
When setting on inside more than 30mm, cut
cross is not available.
