Icom VE-PG4 Operating Manual page 94

6
TRANSCEIvER CoNTRoLLER

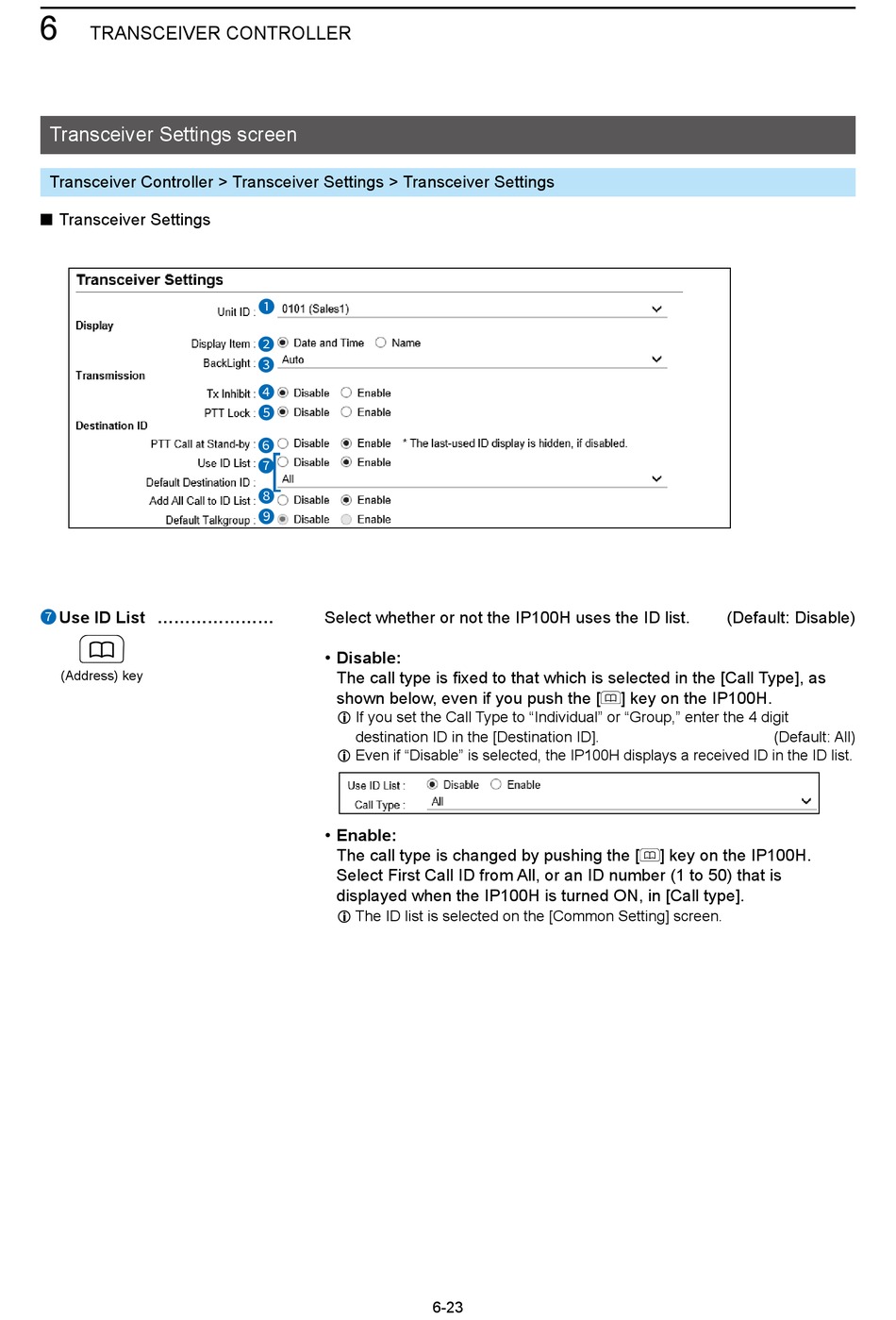

Transceiver Settings screen
Transceiver Controller > Transceiver Settings > Transceiver Settings
■ Transceiver Settings
Use ID List �������
7
(Address) key
1
2
3
4
5
6
7
8
9
Select whether or not the IP100H uses the ID list.
• Disable:
The call type is fixed to that which is selected in the [Call Type], as
shown below, even if you push the [
L If you set the Call Type to "Individual" or "Group," enter the 4 digit
destination ID in the [Destination ID].
L Even if "Disable" is selected, the IP100H displays a received ID in the ID list.
• Enable:
The call type is changed by pushing the [
Select First Call ID from All, or an ID number (1 to 50) that is
displayed when the IP100H is turned ON, in [Call type].
L The ID list is selected on the [Common Setting] screen.
6-23
(Default: Disable)
] key on the IP100H.
(Default: All)
] key on the IP100H.
