Icom VE-PG4 Operating Manual page 356

13
PBX EXTEnSIon

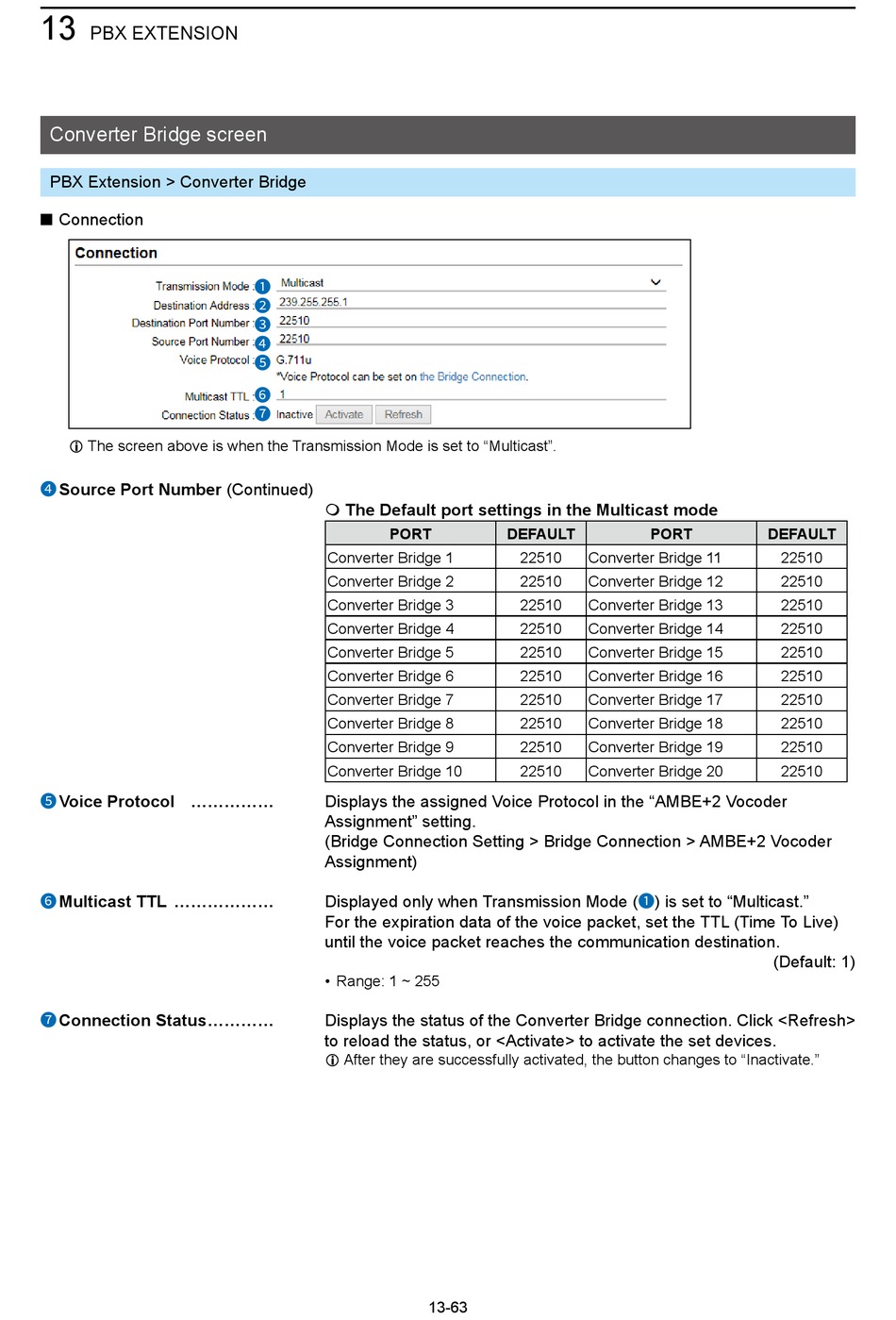

Converter Bridge screen
PBX Extension > Converter Bridge
■ Connection
L The screen above is when the Transmission Mode is set to "Multicast".
Source Port Number (Continued)
4
Voice Protocol �����
5
Multicast TTL ������
6
Connection Status ����
7
1
2
3
4
5
6
7
 The Default port settings in the Multicast mode
PORT
Converter Bridge 1
Converter Bridge 2
Converter Bridge 3
Converter Bridge 4
Converter Bridge 5
Converter Bridge 6
Converter Bridge 7
Converter Bridge 8
Converter Bridge 9
Converter Bridge 10
Displays the assigned Voice Protocol in the "AMBE+2 Vocoder
Assignment" setting.
(Bridge Connection Setting > Bridge Connection > AMBE+2 Vocoder
Assignment)
Displayed only when Transmission Mode (1) is set to "Multicast."
For the expiration data of the voice packet, set the TTL (Time To Live)
until the voice packet reaches the communication destination.
• Range: 1 ~ 255
Displays the status of the Converter Bridge connection. Click <Refresh>
to reload the status, or <Activate> to activate the set devices.
L After they are successfully activated, the button changes to "Inactivate."
DEFAULT
22510 Converter Bridge 11
22510 Converter Bridge 12
22510 Converter Bridge 13
22510 Converter Bridge 14
22510 Converter Bridge 15
22510 Converter Bridge 16
22510 Converter Bridge 17
22510 Converter Bridge 18
22510 Converter Bridge 19
22510 Converter Bridge 20
13-63
PORT DEFAULT
22510
22510
22510
22510
22510
22510
22510
22510
22510
22510
(Default: 1)
