Syslog Screen - Icom VE-PG4 Operating Manual

15
MANAGEMENT

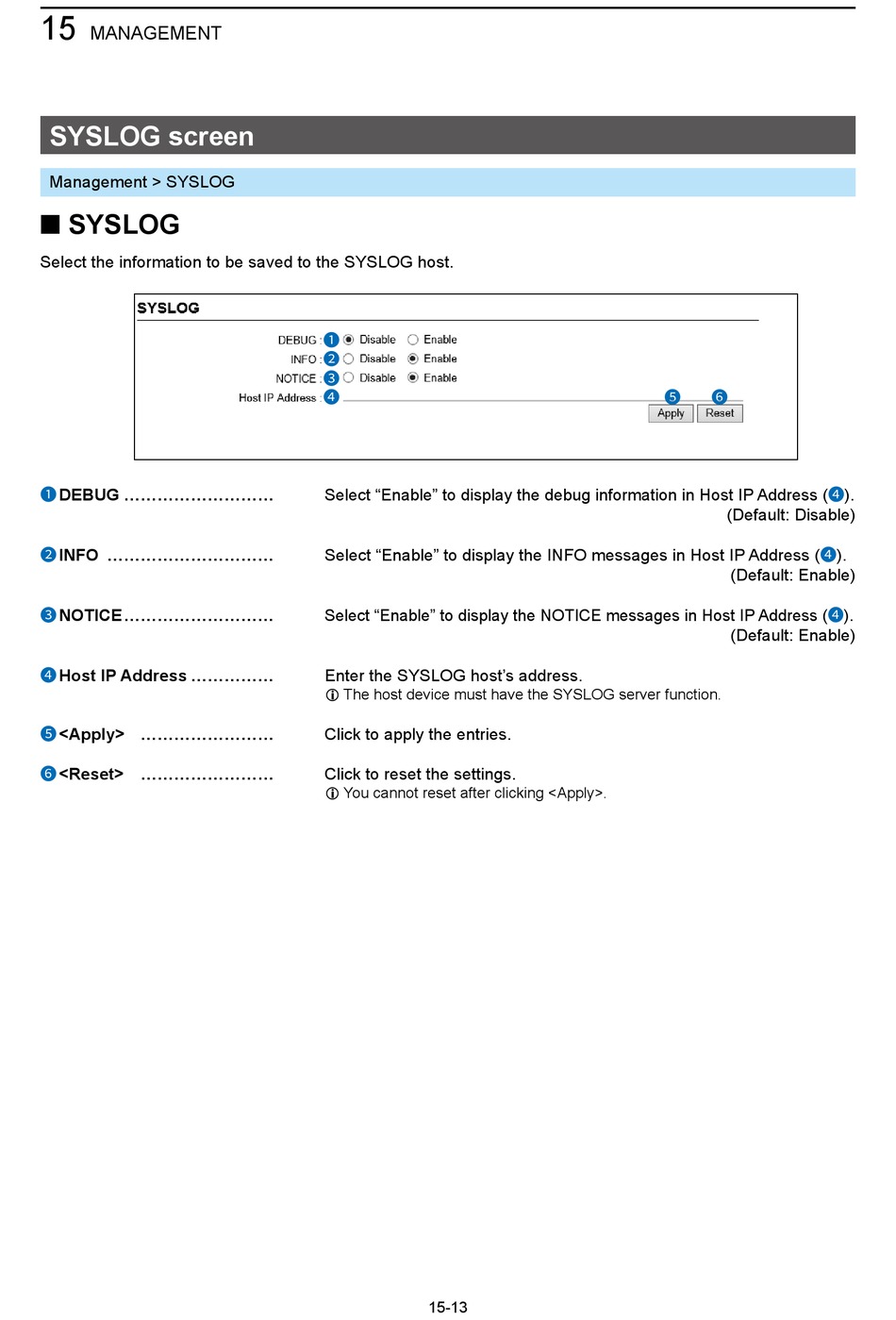

SYSLOG screen

Management > SYSLOG
■ SYSLOG
Select the information to be saved to the SYSLOG host.
DEBUG ���������
1
INFO ����������
2
NOTICE ���������
3
Host IP Address �����
4
<Apply> ��������
5
<Reset> ��������
6
1
2
3
4
Select "Enable" to display the debug information in Host IP Address (4).
Select "Enable" to display the INFO messages in Host IP Address (4).
Select "Enable" to display the NOTICE messages in Host IP Address (4).
Enter the SYSLOG host's address.
L The host device must have the SYSLOG server function.
Click to apply the entries.
Click to reset the settings.
L You cannot reset after clicking <Apply>.
15-13
5 6
(Default: Disable)
(Default: Enable)
(Default: Enable)
