Icom VE-PG4 Operating Manual page 359

13
PBX EXTEnSIon

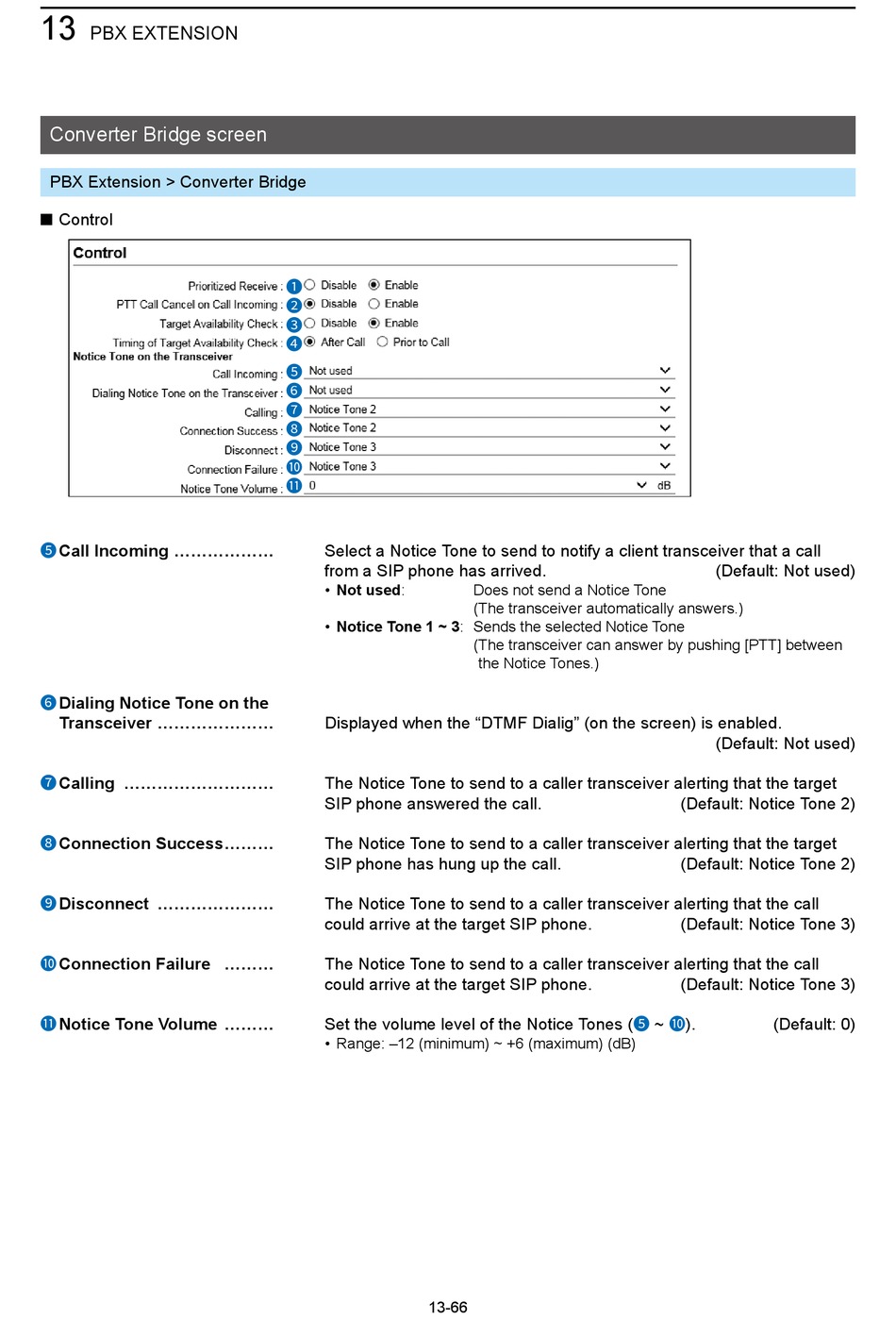

Converter Bridge screen
PBX Extension > Converter Bridge
■ Control
Call Incoming ������
5
Dialing Notice Tone on the
6
Transceiver �������
Calling ���������
7
Connection Success ���
8
Disconnect �������
9
Connection Failure ���
10
Notice Tone Volume ���
11
1
2
3
4
5
6
7
8
9
10
11
Select a notice Tone to send to notify a client transceiver that a call
from a SIP phone has arrived.
• Not used:
• Notice Tone 1 ~ 3: Sends the selected notice Tone
Displayed when the "DTMF Dialig" (on the screen) is enabled.
The notice Tone to send to a caller transceiver alerting that the target
SIP phone answered the call.
The notice Tone to send to a caller transceiver alerting that the target
SIP phone has hung up the call.
The notice Tone to send to a caller transceiver alerting that the call
could arrive at the target SIP phone.
The notice Tone to send to a caller transceiver alerting that the call
could arrive at the target SIP phone.
Set the volume level of the notice Tones
• Range: –12 (minimum) ~ +6 (maximum) (dB)
13-66
Does not send a notice Tone
(The transceiver automatically answers.)
( The transceiver can answer by pushing [PTT] between
the notice Tones.)
(5
(Default: not used)
(Default: not used)
(Default: notice Tone 2)
(Default: notice Tone 2)
(Default: notice Tone 3)
(Default: notice Tone 3)
~ 10). (Default: 0)
