CONNECTION PORT SETTINgS

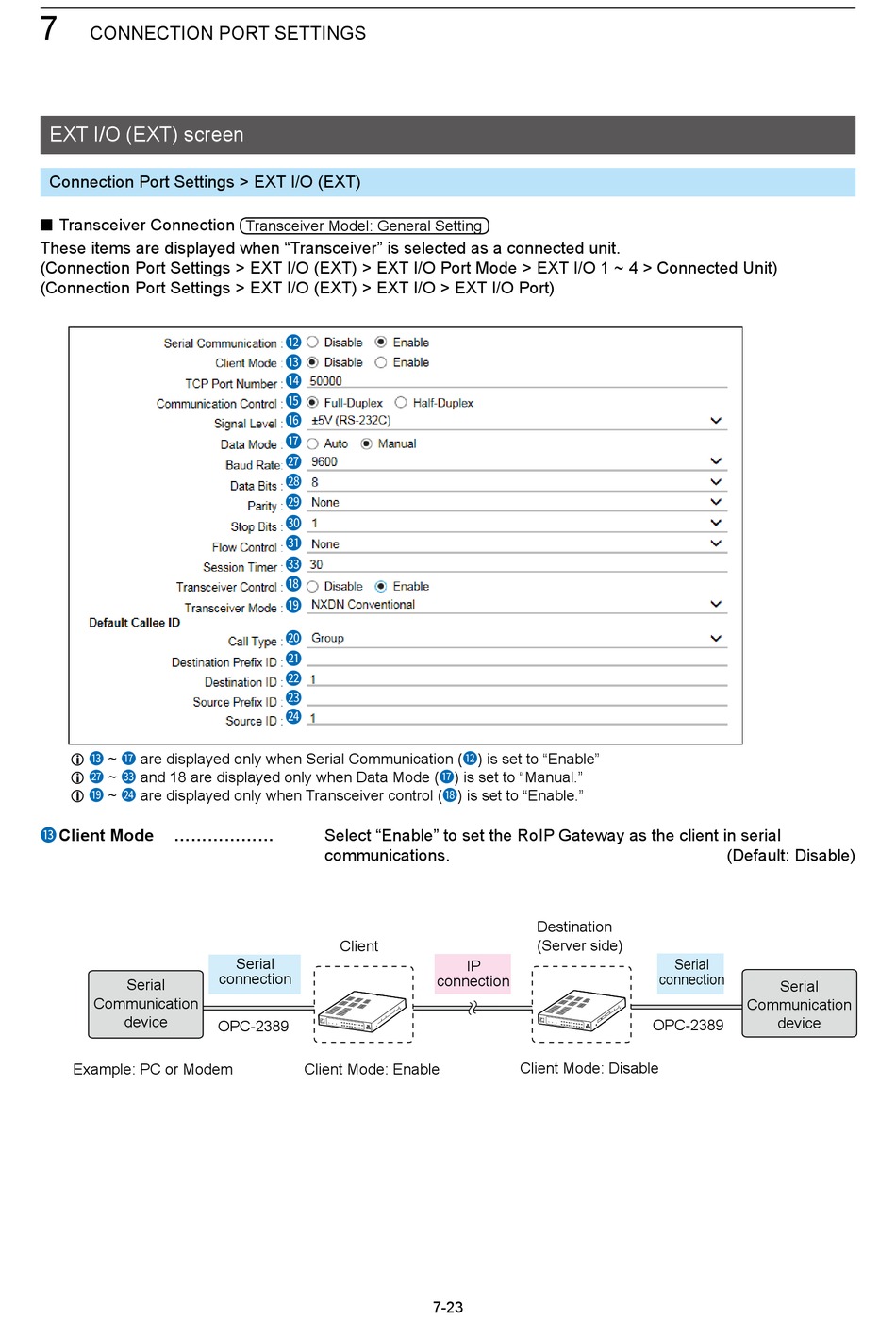

EXT I/O (EXT) screen
Connection Port Settings > EXT I/O (EXT)
■ Transceiver Connection
These items are displayed when "Transceiver" is selected as a connected unit.
(Connection Port Settings > EXT I/O (EXT) > EXT I/O Port Mode > EXT I/O 1 ~ 4 > Connected Unit)
(Connection Port Settings > EXT I/O (EXT) > EXT I/O > EXT I/O Port)
~ are displayed only when Serial Communication (12) is set to "Enable"
13 17
L
~ and 18 are displayed only when Data Mode (17) is set to "Manual."
27 33
L
~ are displayed only when Transceiver control (18) is set to "Enable."
19 24
L
Client Mode
13
Serial
Communication
device
Example: PC or Modem
Transceiver Model: general Setting
12
13
14
15
16
17
27
28
29
30
31
33
18
19
20
21
22
23
24
Select "Enable" to set the RoIP gateway as the client in serial
communications.
Client
Serial
connection
OPC-2389
Client Mode: Enable
Destination
(Server side)
IP
connection
Client Mode: Disable
7-23
(Default: Disable)
Serial
connection
Serial
Communication
device
OPC-2389
