Icom VE-PG4 Operating Manual page 102

6
TRANSCEIvER CoNTRoLLER

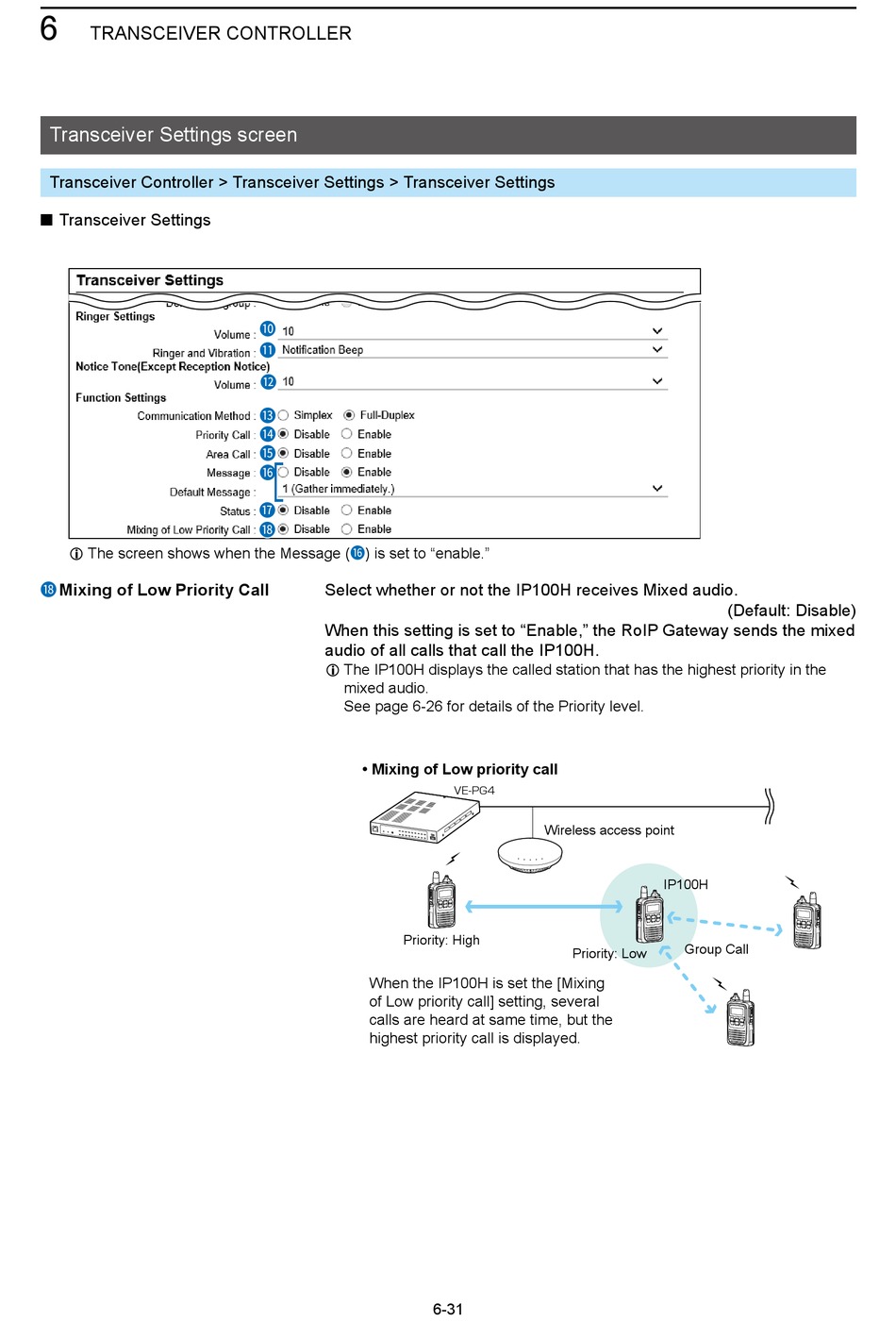

Transceiver Settings screen
Transceiver Controller > Transceiver Settings > Transceiver Settings
■ Transceiver Settings
L The screen shows when the Message (16) is set to "enable."
Mixing of Low Priority Call
18
10
11
12
13
14
15
16
17
18
Select whether or not the IP100H receives Mixed audio.
When this setting is set to "Enable," the RoIP Gateway sends the mixed
audio of all calls that call the IP100H.
L The IP100H displays the called station that has the highest priority in the
mixed audio.
See page 6-26 for details of the Priority level.
• Mixing of Low priority call
Priority: High
When the IP100H is set the [Mixing
of Low priority call] setting, several
calls are heard at same time, but the
highest priority call is displayed.
VE-PG4
Wireless access point
Priority: Low
6-31
(Default: Disable)
IP100H
Group Call
