13
PBX EXTEnSIon

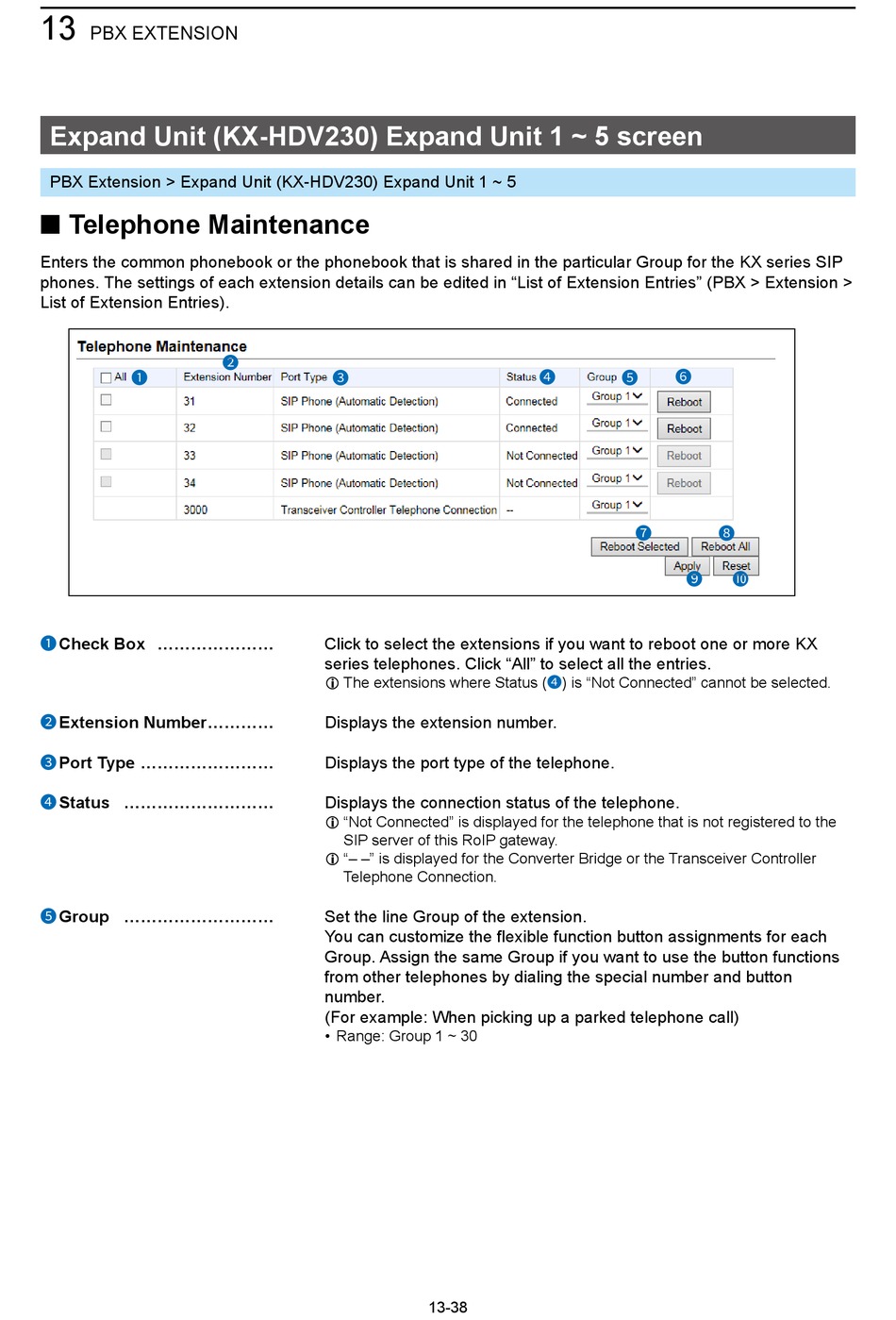

Expand Unit (KX-HDV230) Expand Unit 1 ~ 5 screen
PBX Extension > Expand Unit (KX-HDV230) Expand Unit 1 ~ 5
■ Telephone Maintenance
Enters the common phonebook or the phonebook that is shared in the particular Group for the KX series SIP
phones. The settings of each extension details can be edited in "List of Extension Entries" (PBX > Extension >
List of Extension Entries).
1
Check Box �������
1
Extension Number ����
2
Port Type ��������
3
Status ���������
4
Group ���������
5
2
3
Click to select the extensions if you want to reboot one or more KX
series telephones. Click "All" to select all the entries.
L The extensions where Status (4) is "not Connected" cannot be selected.
Displays the extension number.
Displays the port type of the telephone.
Displays the connection status of the telephone.
L "not Connected" is displayed for the telephone that is not registered to the
SIP server of this RoIP gateway.
L "– –" is displayed for the Converter Bridge or the Transceiver Controller
Telephone Connection.
Set the line Group of the extension.
You can customize the flexible function button assignments for each
Group. Assign the same Group if you want to use the button functions
from other telephones by dialing the special number and button
number.
(For example: When picking up a parked telephone call)
• Range: Group 1 ~ 30
4
13-38
