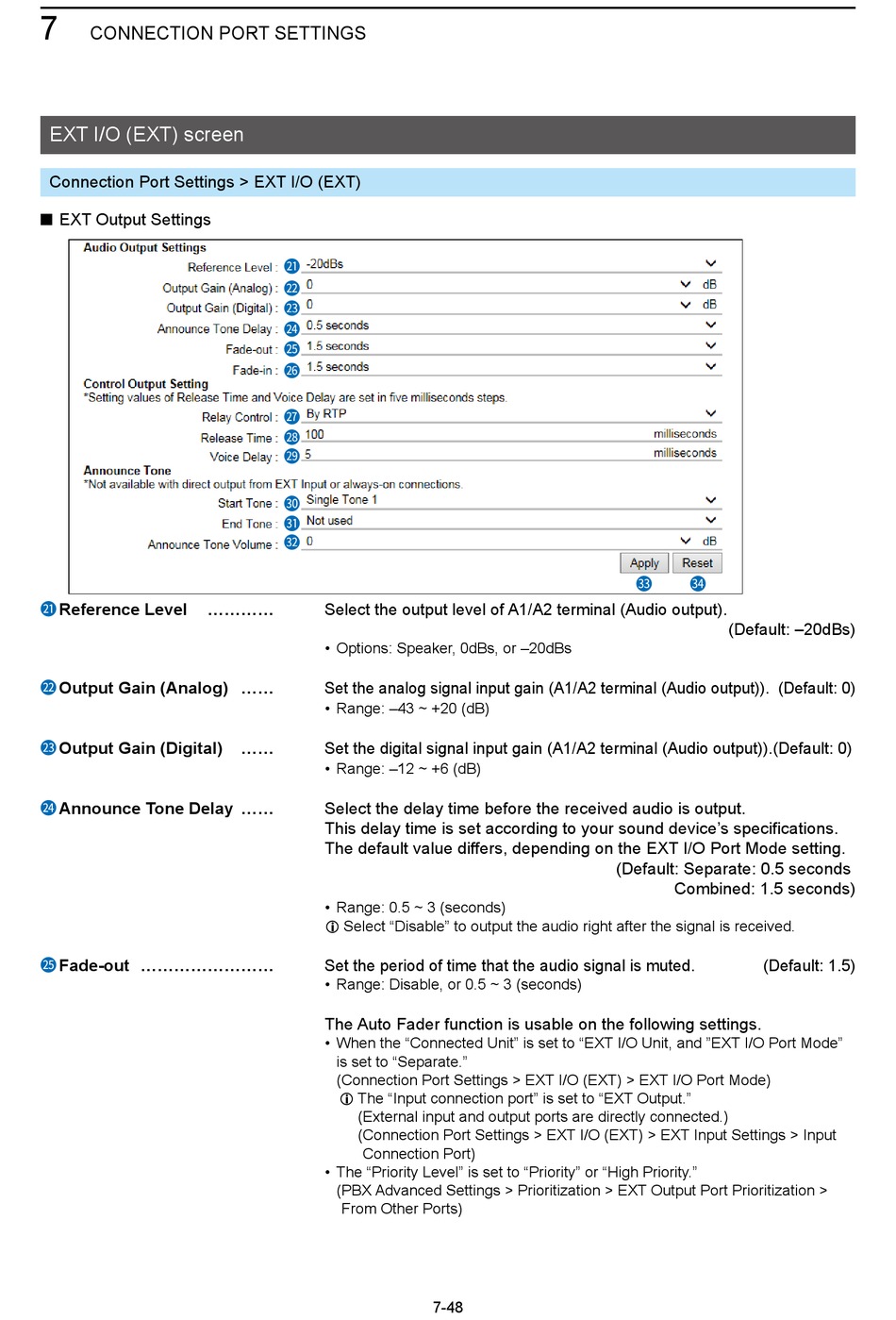

CONNECTION PORT SETTINgS
EXT I/O (EXT) screen
Connection Port Settings > EXT I/O (EXT)
■ EXT Output Settings
Reference Level
21
Output Gain (Analog)
22
Output Gain (Digital)
23
Announce Tone Delay
24
Fade-out
25
21
22
23
24
25
26
27
28
29
30
31
32
Select the output level of A1/A2 terminal (Audio output).
• Options: Speaker, 0dBs, or –20dBs
Set the analog signal input gain (A1/A2 terminal (Audio output)). (Default: 0)
• Range: –43 ~ +20 (dB)
Set the digital signal input gain (A1/A2 terminal (Audio output)).(Default: 0)
• Range: –12 ~ +6 (dB)
Select the delay time before the received audio is output.
This delay time is set according to your sound device's specifications.
The default value differs, depending on the EXT I/O Port Mode setting.
• Range: 0.5 ~ 3 (seconds)
L Select "Disable" to output the audio right after the signal is received.
Set the period of time that the audio signal is muted.
• Range: Disable, or 0.5 ~ 3 (seconds)
The Auto Fader function is usable on the following settings.
• When the "Connected Unit" is set to "EXT I/O Unit, and "EXT I/O Port Mode"
is set to "Separate."
(Connection Port Settings > EXT I/O (EXT) > EXT I/O Port Mode)
L The "Input connection port" is set to "EXT Output."
(External input and output ports are directly connected.)
( Connection Port Settings > EXT I/O (EXT) > EXT Input Settings > Input
Connection Port)
• The "Priority Level" is set to "Priority" or "High Priority."
( PBX Advanced Settings > Prioritization > EXT Output Port Prioritization >
From Other Ports)
7-48
33
34
(Default: –20dBs)
(Default: Separate: 0.5 seconds
Combined: 1.5 seconds)
