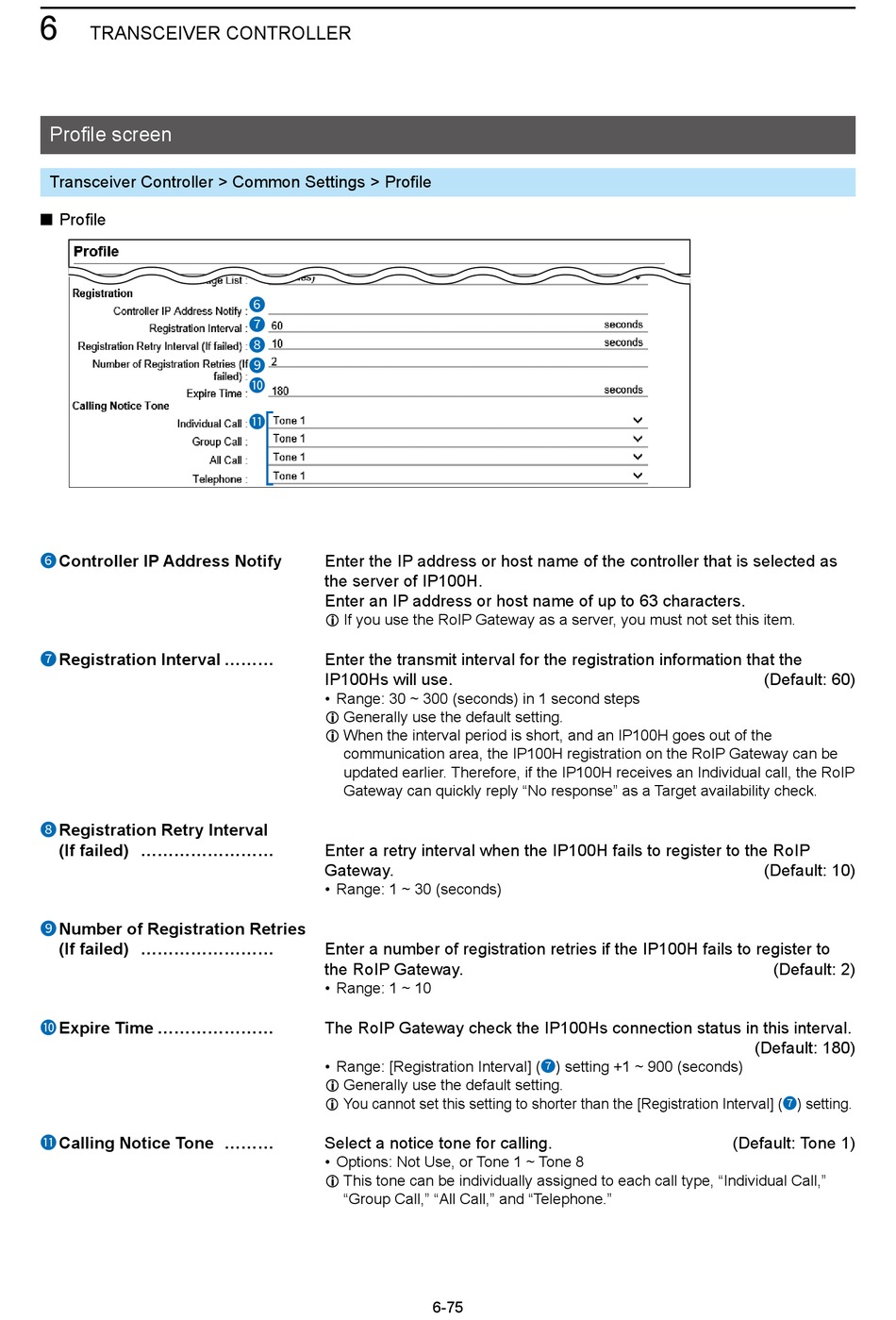

Icom VE-PG4 Operating Manual page 146

6
TRANSCEIvER CoNTRoLLER
Profile screen
Transceiver Controller > Common Settings > Profile
■ Profile
Controller IP Address Notify
6
Registration Interval ���
7
Registration Retry Interval
8
(If failed) ��������
Number of Registration Retries
9
(If failed) ��������
Expire Time �������
10
Calling Notice Tone ���
11
6
7
8
9
10
11
Enter the IP address or host name of the controller that is selected as
the server of IP100H.
Enter an IP address or host name of up to 63 characters.
L If you use the RoIP Gateway as a server, you must not set this item.
Enter the transmit interval for the registration information that the
IP100Hs will use.
• Range: 30 ~ 300 (seconds) in 1 second steps
L Generally use the default setting.
L When the interval period is short, and an IP100H goes out of the
communication area, the IP100H registration on the RoIP Gateway can be
updated earlier. Therefore, if the IP100H receives an Individual call, the RoIP
Gateway can quickly reply "No response" as a Target availability check.
Enter a retry interval when the IP100H fails to register to the RoIP
Gateway.
• Range: 1 ~ 30 (seconds)
Enter a number of registration retries if the IP100H fails to register to
the RoIP Gateway.
• Range: 1 ~ 10
The RoIP Gateway check the IP100Hs connection status in this interval.
• Range: [Registration Interval] (7) setting +1 ~ 900 (seconds)
L Generally use the default setting.
L You cannot set this setting to shorter than the [Registration Interval] (7) setting.
Select a notice tone for calling.
• Options: Not Use, or Tone 1 ~ Tone 8
L This tone can be individually assigned to each call type, "Individual Call,"
"Group Call," "All Call," and "Telephone."
6-75
(Default: 60)
(Default: 10)
(Default: 2)
(Default: 180)
(Default: Tone 1)
