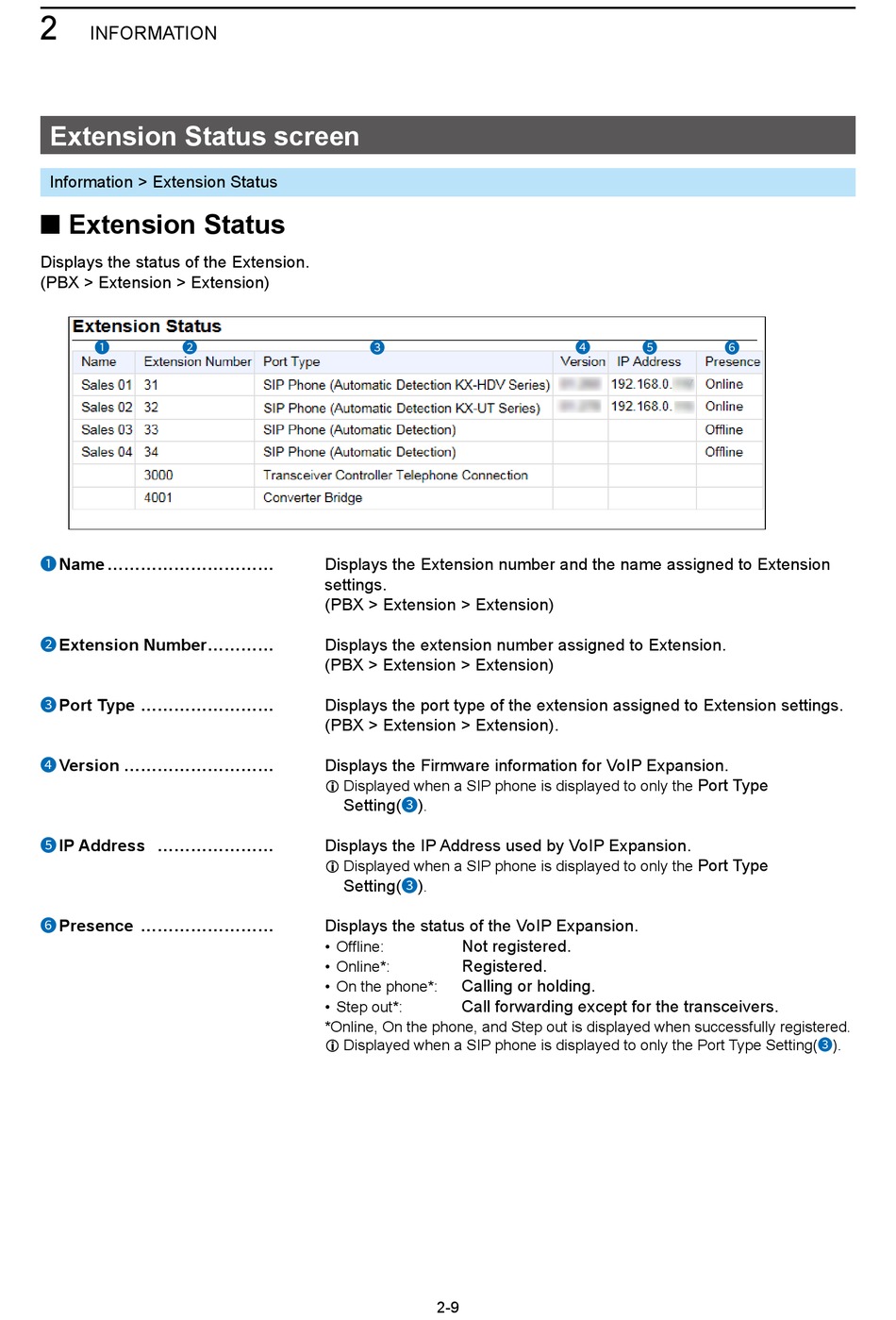

Extension Status Screen; M Extension Status - Icom VE-PG4 Operating Manual

2
INfOrMaTION

Extension Status screen

Information > Extension Status
■ Extension Status
Displays the status of the Extension.
(PBX > Extension > Extension)
1 2
Name ����������
1
Extension Number ����
2
Port Type ��������
3
Version ���������
4
IP Address �������
5
Presence ��������
6
3
Displays the Extension number and the name assigned to Extension
settings.
(PBX > Extension > Extension)
Displays the extension number assigned to Extension.
(PBX > Extension > Extension)
Displays the port type of the extension assigned to Extension settings.
(PBX > Extension > Extension).
Displays the firmware information for VoIP Expansion.
L Displayed when a SIP phone is displayed to only the
Setting(3)
.
Displays the IP address used by VoIP Expansion.
L Displayed when a SIP phone is displayed to only the
Setting(3)
.
Displays the status of the VoIP Expansion.
Not registered.
• Offline:
registered.
• Online*:
Calling or holding.
• On the phone*:
Call forwarding except for the transceivers.
• Step out*:
*Online, On the phone, and Step out is displayed when successfully registered.
L Displayed when a SIP phone is displayed to only the Port Type Setting(3).
2-9
4 5 6
Port Type
Port Type
