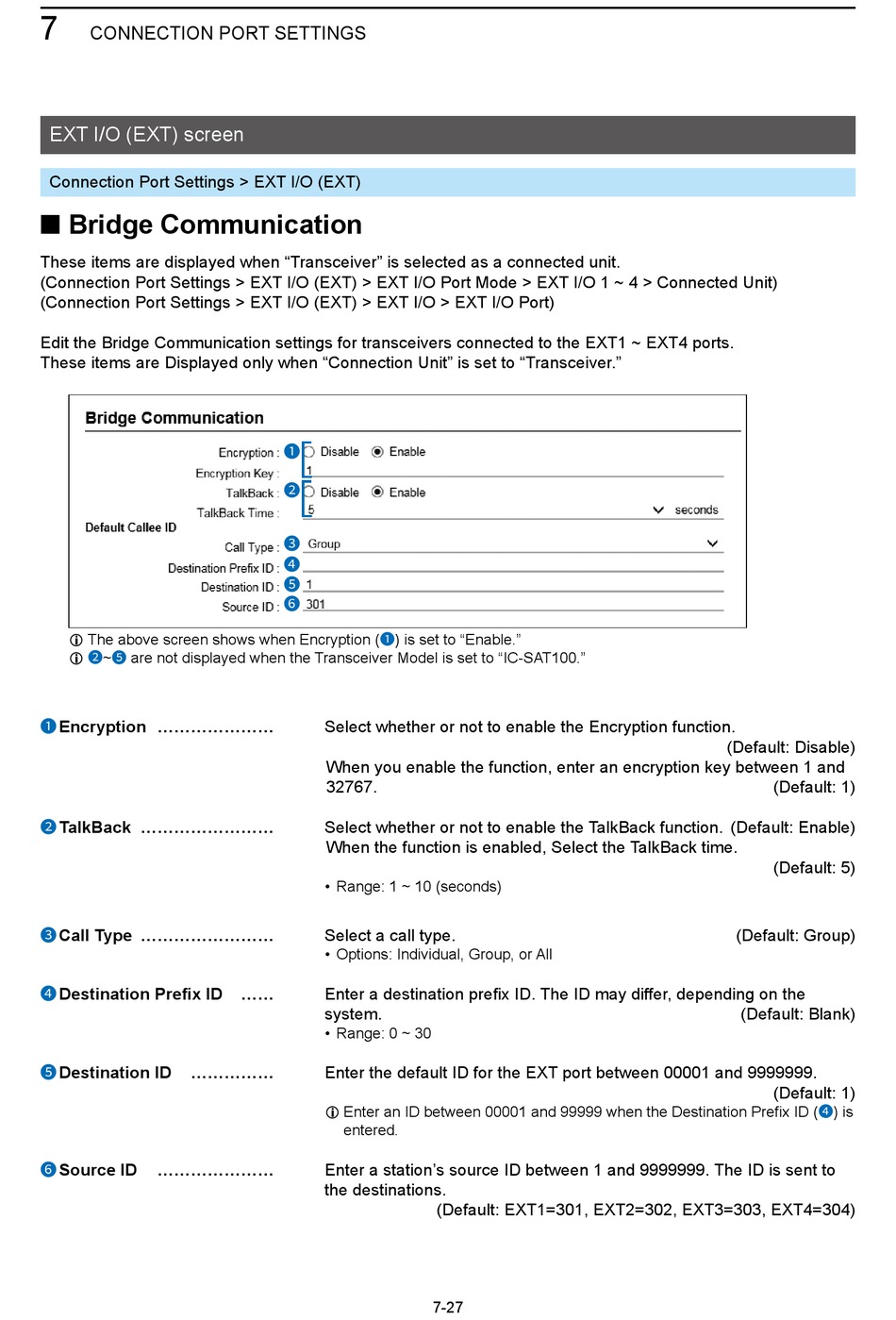

CONNECTION PORT SETTINgS
EXT I/O (EXT) screen
Connection Port Settings > EXT I/O (EXT)
■ Bridge Communication
These items are displayed when "Transceiver" is selected as a connected unit.
(Connection Port Settings > EXT I/O (EXT) > EXT I/O Port Mode > EXT I/O 1 ~ 4 > Connected Unit)
(Connection Port Settings > EXT I/O (EXT) > EXT I/O > EXT I/O Port)
Edit the Bridge Communication settings for transceivers connected to the EXT1 ~ EXT4 ports.
These items are Displayed only when "Connection Unit" is set to "Transceiver."
L The above screen shows when Encryption (1) is set to "Enable."
are not displayed when the Transceiver Model is set to "IC-SAT100."
2~5
L
Encryption
1
TalkBack
2
Call Type
3
Destination Prefix ID
4
Destination ID
5
Source ID
6
1
2
3
4
5
6
Select whether or not to enable the Encryption function.
When you enable the function, enter an encryption key between 1 and
32767.
Select whether or not to enable the TalkBack function. (Default: Enable)
When the function is enabled, Select the TalkBack time.
• Range: 1 ~ 10 (seconds)
Select a call type.
• Options: Individual, group, or All
Enter a destination prefix ID. The ID may differ, depending on the
system.
• Range: 0 ~ 30
Enter the default ID for the EXT port between 00001 and 9999999.
L Enter an ID between 00001 and 99999 when the Destination Prefix ID (4) is
entered.
Enter a stationʼs source ID between 1 and 9999999. The ID is sent to
the destinations.
(Default: EXT1=301, EXT2=302, EXT3=303, EXT4=304)
7-27
(Default: Disable)
(Default: 1)
(Default: 5)
(Default: group)
(Default: Blank)
(Default: 1)
