Icom VE-PG4 Operating Manual page 373

14

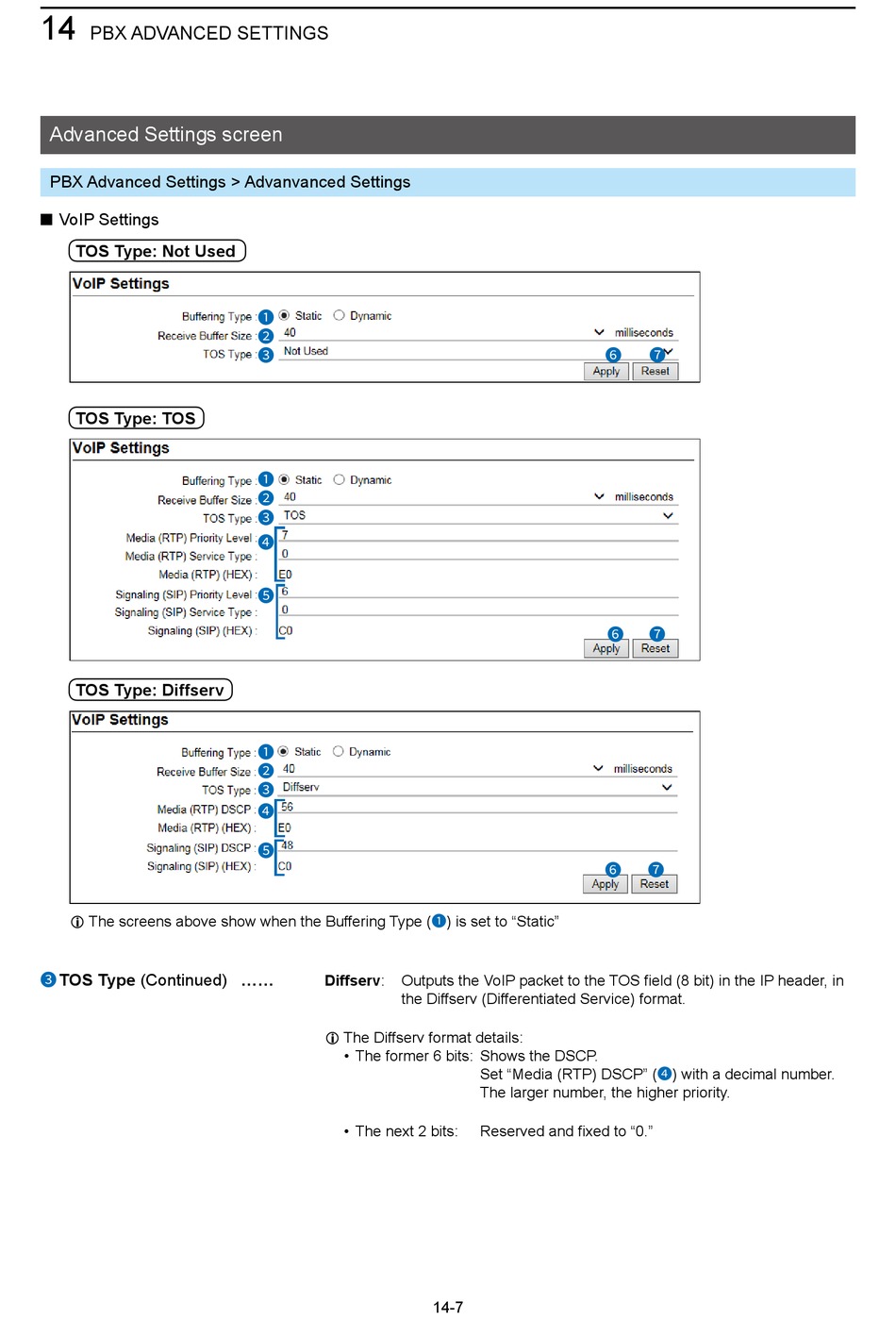

PBX ADVANCED SETTINgS
Advanced Settings screen
PBX Advanced Settings > Advanvanced Settings
■ VoIP Settings
TOS Type: Not Used
TOS Type: TOS
TOS Type: Diffserv
L The screens above show when the Buffering Type (1) is set to "Static"
TOS Type (Continued) ��
3
1
2
3
1
2
3
4
5
1
2
3
4
5
Diffserv: Outputs the VoIP packet to the TOS field (8 bit) in the IP header, in
the Diffserv (Differentiated Service) format.
L The Diffserv format details:
• The former 6 bits: Shows the DSCP.
• The next 2 bits:
Set "Media (RTP) DSCP" (4) with a decimal number.
The larger number, the higher priority.
Reserved and fixed to "0."
14-7
6 7
6 7
6 7
