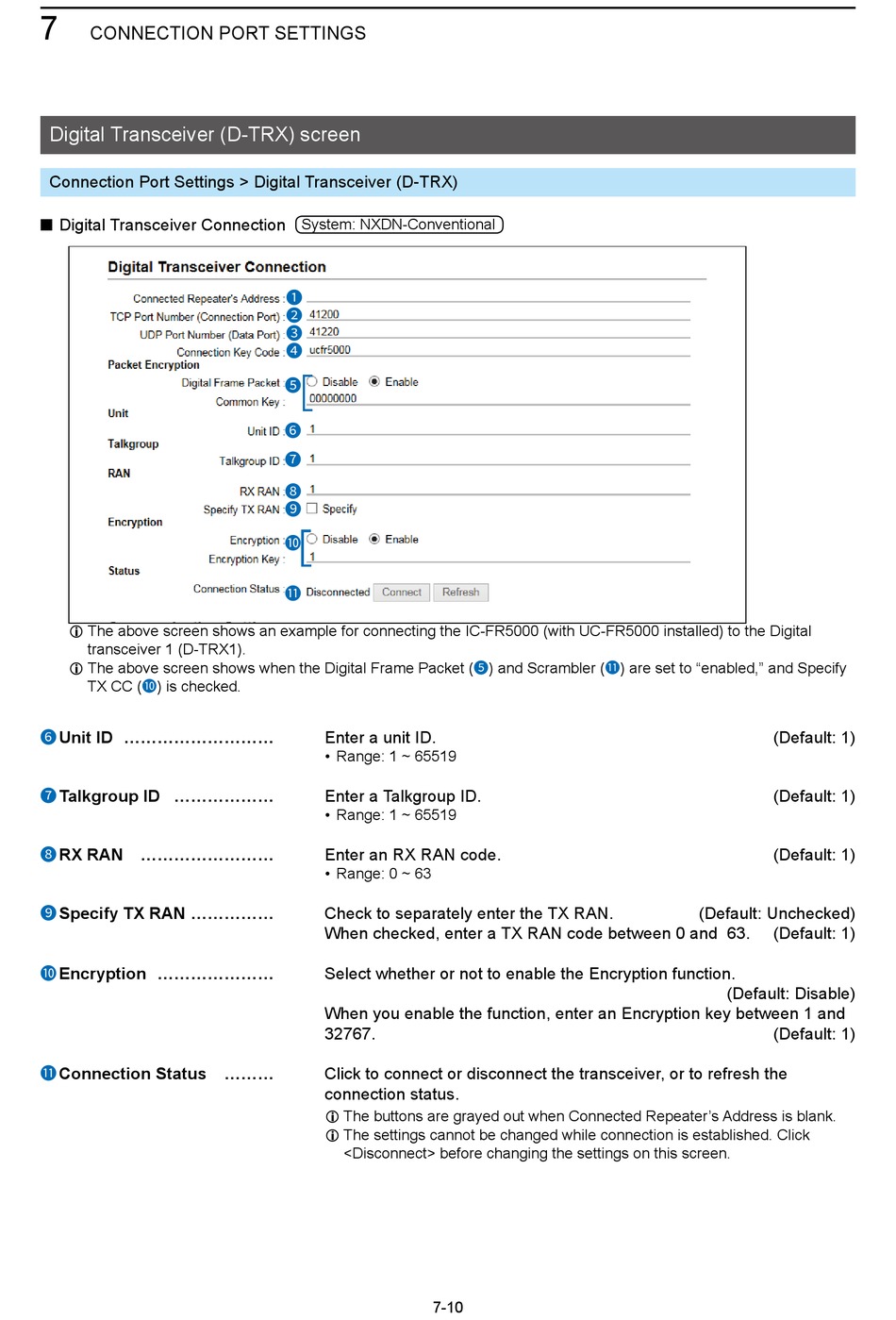

CONNECTION PORT SETTINgS
Digital Transceiver (D-TRX) screen
Connection Port Settings > Digital Transceiver (D-TRX)
■ Digital Transceiver Connection
L The above screen shows an example for connecting the IC-FR5000 (with UC-FR5000 installed) to the Digital
transceiver 1 (D-TRX1).
L The above screen shows when the Digital Frame Packet (5) and Scrambler
TX CC (10 ) is checked.
Unit ID
6
Talkgroup ID
7
RX RAN
8
Specify TX RAN
9
Encryption
10
Connection Status
11
System: NXDN-Conventional
1
2
3
4
5
6
7
8
9
10
11
Enter a unit ID.
• Range: 1 ~ 65519
Enter a Talkgroup ID.
• Range: 1 ~ 65519
Enter an RX RAN code.
• Range: 0 ~ 63
Check to separately enter the TX RAN.
When checked, enter a TX RAN code between 0 and 63.
Select whether or not to enable the Encryption function.
When you enable the function, enter an Encryption key between 1 and
32767.
Click to connect or disconnect the transceiver, or to refresh the
connection status.
L The buttons are grayed out when Connected Repeater's Address is blank.
L The settings cannot be changed while connection is established. Click
<Disconnect> before changing the settings on this screen.
