Icom VE-PG4 Operating Manual page 168

7
CONNECTION PORT SETTINgS

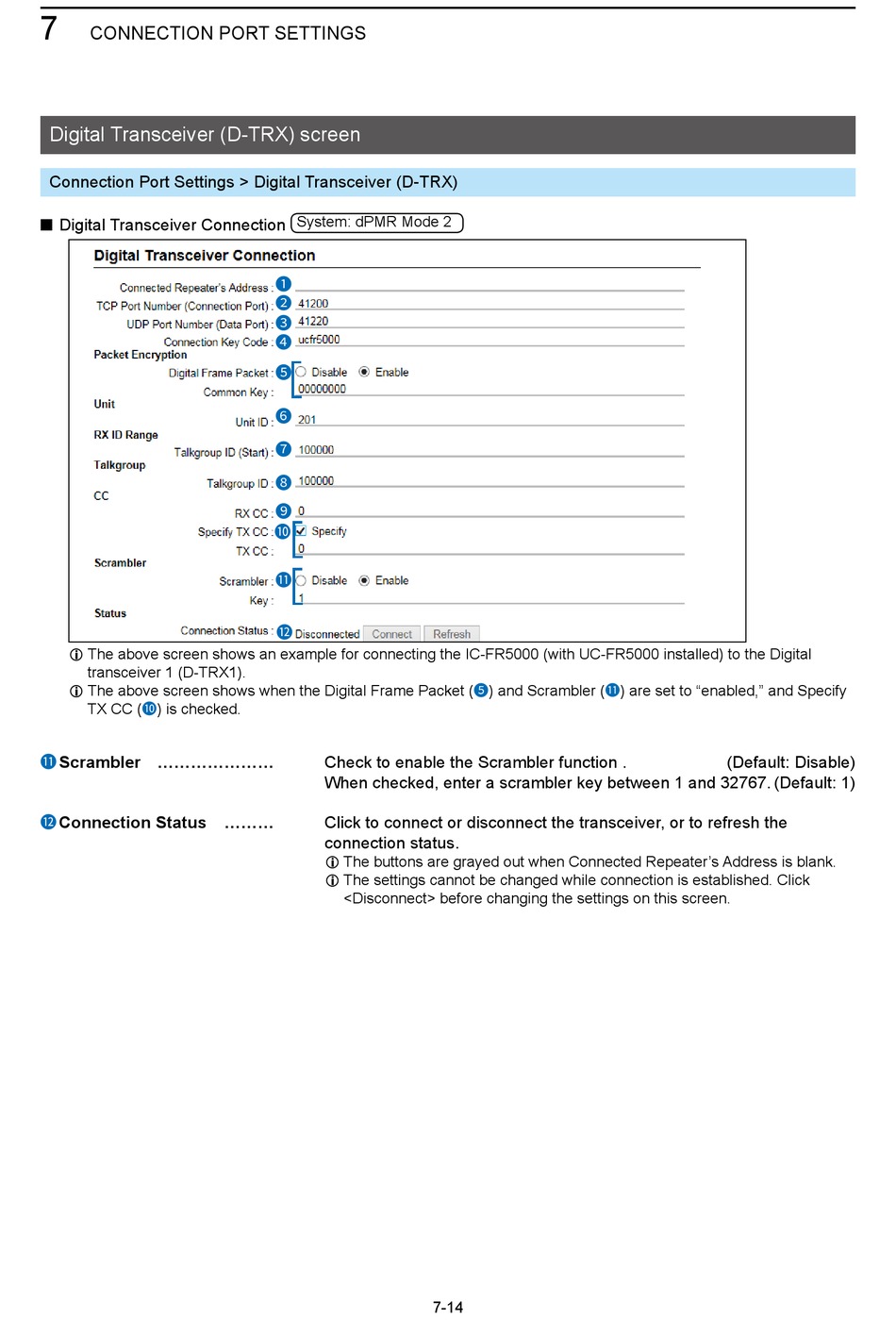

Digital Transceiver (D-TRX) screen
Connection Port Settings > Digital Transceiver (D-TRX)
■ Digital Transceiver Connection
L The above screen shows an example for connecting the IC-FR5000 (with UC-FR5000 installed) to the Digital
transceiver 1 (D-TRX1).
L The above screen shows when the Digital Frame Packet (5) and Scrambler (11) are set to "enabled," and Specify
TX CC (10) is checked.
Scrambler
11
Connection Status
12
System: dPMR Mode 2
1
2
3
4
5
6
7
8
9
10
11
12
Check to enable the Scrambler function .
When checked, enter a scrambler key between 1 and 32767. (Default: 1)
Click to connect or disconnect the transceiver, or to refresh the
connection status.
L The buttons are grayed out when Connected Repeater's Address is blank.
L The settings cannot be changed while connection is established. Click
<Disconnect> before changing the settings on this screen.
7-14
(Default: Disable)
