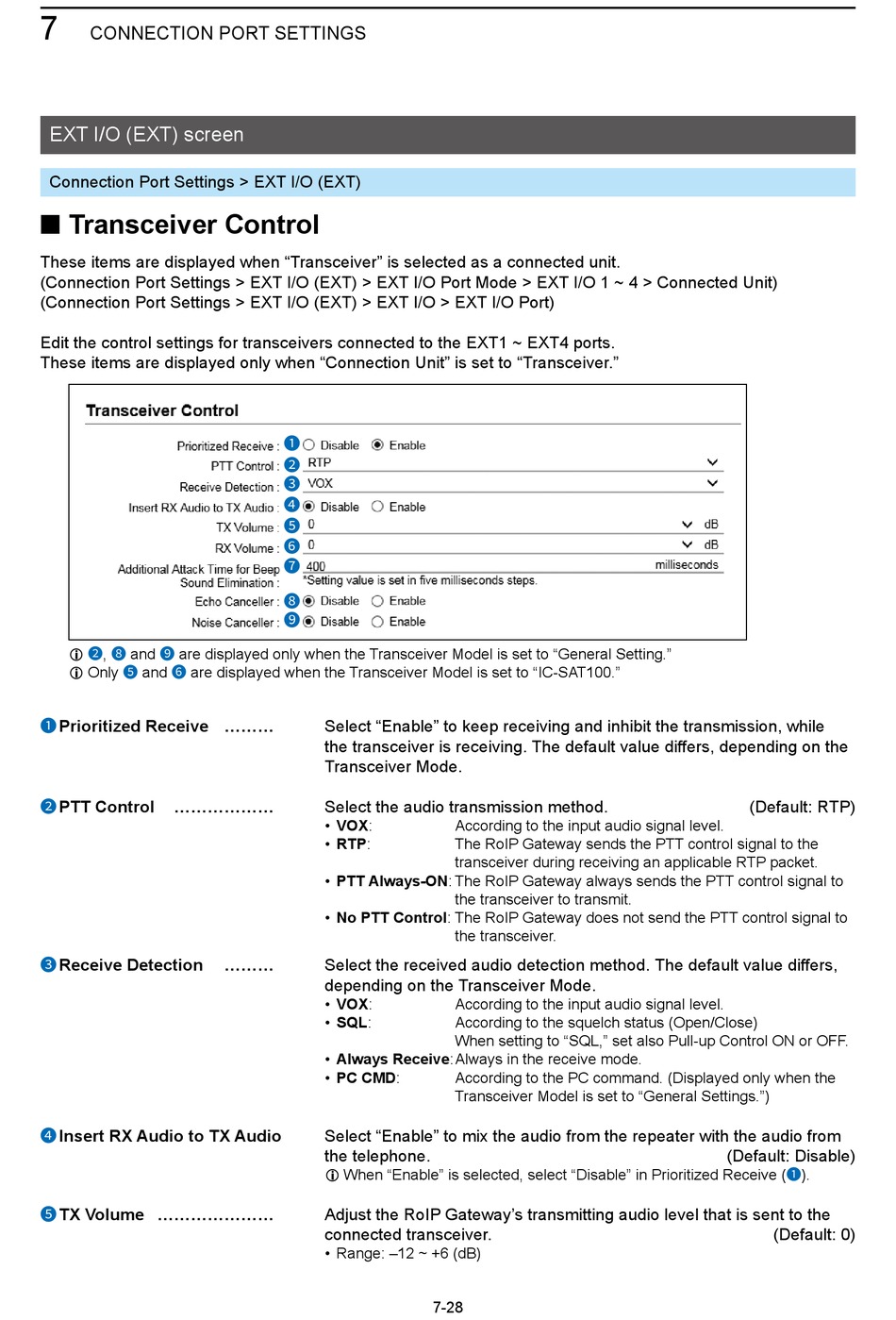

CONNECTION PORT SETTINgS
EXT I/O (EXT) screen
Connection Port Settings > EXT I/O (EXT)
■ Transceiver Control
These items are displayed when "Transceiver" is selected as a connected unit.
(Connection Port Settings > EXT I/O (EXT) > EXT I/O Port Mode > EXT I/O 1 ~ 4 > Connected Unit)
(Connection Port Settings > EXT I/O (EXT) > EXT I/O > EXT I/O Port)
Edit the control settings for transceivers connected to the EXT1 ~ EXT4 ports.
These items are displayed only when "Connection Unit" is set to "Transceiver."
and are displayed only when the Transceiver Model is set to "general Setting."
L 2, 8 9
L Only and are displayed when the Transceiver Model is set to "IC-SAT100."
5 6
Prioritized Receive
1
PTT Control
2
Receive Detection
3
Insert RX Audio to TX Audio
4
TX Volume
5
1
2
3
4
5
6
7
8
9
Select "Enable" to keep receiving and inhibit the transmission, while
the transceiver is receiving. The default value differs, depending on the
Transceiver Mode.
Select the audio transmission method.
• VOX:
• RTP:
• PTT Always-ON: The RoIP gateway always sends the PTT control signal to
• No PTT Control: The RoIP gateway does not send the PTT control signal to
Select the received audio detection method. The default value differs,
depending on the Transceiver Mode.
• VOX:
• SQL:
• Always Receive: Always in the receive mode.
• PC CMD:
Select "Enable" to mix the audio from the repeater with the audio from
the telephone.
L When "Enable" is selected, select "Disable" in Prioritized Receive (1).
Adjust the RoIP gateway's transmitting audio level that is sent to the
connected transceiver.
• Range: –12 ~ +6 (dB)
According to the input audio signal level.
The RoIP gateway sends the PTT control signal to the
transceiver during receiving an applicable RTP packet.
the transceiver to transmit.
the transceiver.
According to the input audio signal level.
According to the squelch status (Open/Close)
When setting to "SQL," set also Pull-up Control ON or OFF.
According to the PC command. (Displayed only when the
Transceiver Model is set to "general Settings.")
7-28
(Default: RTP)
(Default: Disable)
(Default: 0)
