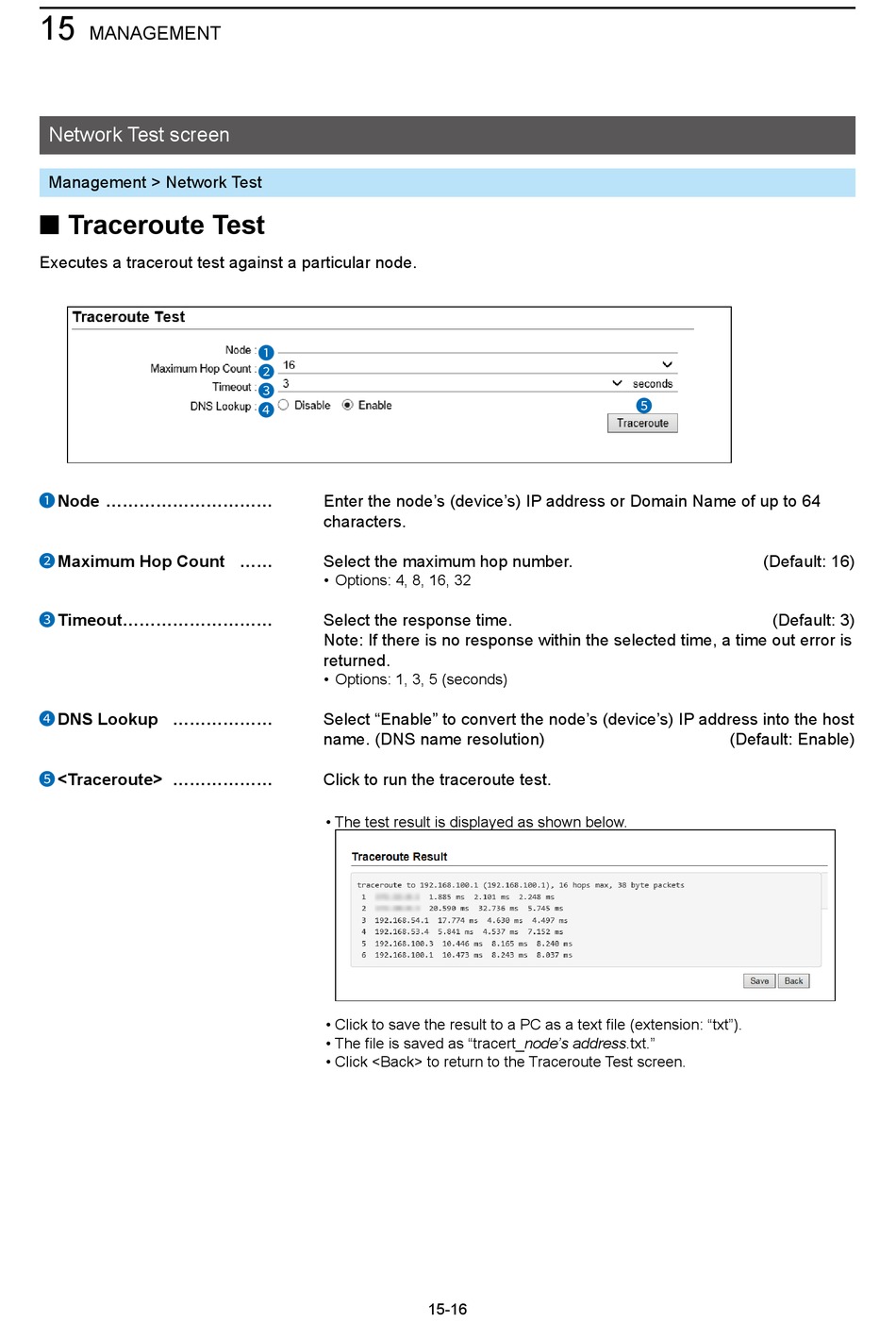

Icom VE-PG4 Operating Manual page 414

15
MANAGEMENT
Network Test screen
Management > Network Test
■ Traceroute Test
Executes a tracerout test against a particular node.
Node ����������
1
Maximum Hop Count ��
2
Timeout���������
3
DNS Lookup ������
4
<Traceroute> ������
5
1
2
3
4
Enter the node's (device's) IP address or Domain Name of up to 64
characters.
Select the maximum hop number.
• Options: 4, 8, 16, 32
Select the response time.
Note: If there is no response within the selected time, a time out error is
returned.
• Options: 1, 3, 5 (seconds)
Select "Enable" to convert the node's (device's) IP address into the host
name. (DNS name resolution)
Click to run the traceroute test.
• The test result is displayed as shown below. The test result is displayed as shown below.
• Click to save the result to a PC as a text fi le (extension: "txt").
• The fi le is saved as "tracert_node's address.txt."
• Click <Back> to return to the Traceroute Test screen.
15-16
5
(Default: 16)
(Default: 3)
(Default: Enable)
