6
TRANSCEIvER CoNTRoLLER

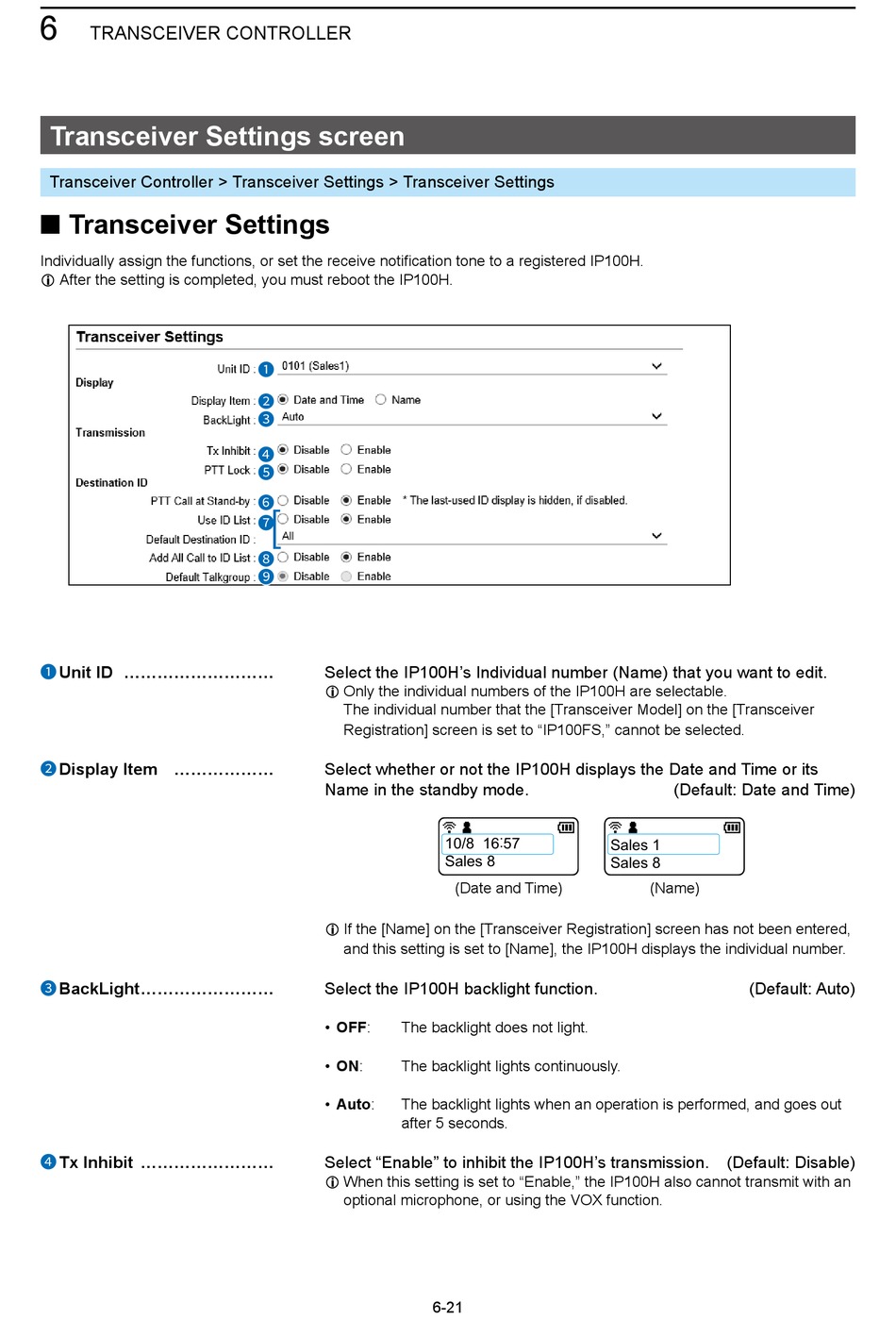

Transceiver Settings screen

Transceiver Controller > Transceiver Settings > Transceiver Settings
■ Transceiver Settings
Individually assign the functions, or set the receive notification tone to a registered IP100H.
L After the setting is completed, you must reboot the IP100H.
Unit ID ���������
1
Display Item ������
2
BackLight ��������
3
Tx Inhibit ��������
4
1
2
3
4
5
6
7
8
9
Select the IP100H's Individual number (Name) that you want to edit.
L Only the individual numbers of the IP100H are selectable.
The individual number that the [Transceiver Model] on the [Transceiver
Registration] screen is set to "IP100FS," cannot be selected.
Select whether or not the IP100H displays the Date and Time or its
Name in the standby mode.
L If the [Name] on the [Transceiver Registration] screen has not been entered,
and this setting is set to [Name], the IP100H displays the individual number.
Select the IP100H backlight function.
• OFF: The backlight does not light.
• ON: The backlight lights continuously.
• Auto:
The backlight lights when an operation is performed, and goes out
after 5 seconds.
Select "Enable" to inhibit the IP100H's transmission. (Default: Disable)
L When this setting is set to "Enable," the IP100H also cannot transmit with an
optional microphone, or using the VOX function.
10/8 16 ： 57
Sales 8
(Date and Time)
6-21
(Default: Date and Time)
Sales 1
Sales 8
(Name)
(Default: Auto)
